OSWindows 11 (22H2 & later)
Lan1 x Intel® 2.5Gb Ethernet;1 x Realtek 5Gb Ethernet;ASUS LANGuard
BIOS256 Mb Flash ROM, UEFI AMI BIOS
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel";Audio Features ;- SupremeFX Shielding Technology;- ESS® ES9219 QUAD DAC;- Gold-plated audio jacks;- Rear optical S/PDIF out port;- Premium audio capacitors;* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
ChipsetIntel® Z890 Chipset
StorageSupports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2) *-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);-M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**;-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® Z890 Chipset;-M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) ;-M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);-4 x SATA 6Gb/s ports ;SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. ;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5;** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Graphics1 x HDMI™ port**;2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***;* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates;** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.;*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.;**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.;***** VGA resolution support depends on processors' or graphic cards' resolution.;******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Warranty36 Months
WirelessWi-Fi 7* 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band**;Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.;Bluetooth® v5.4***;*Wi-Fi features may vary depending on the operating system;For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.;For Windows 10, only Wi-Fi 6 is supported.;** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.;
Bluetooth5.4
ConnectorsFan and Cooling Related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;1 x W_PUMP+ headers;Power Related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;1 x 8-pin PCIe Power connector;Storage Related ;6 x M.2 slots (Key M) ;4 x SATA 6Gb/s ports;1 x SlimSAS connector ;USB ;1 x USB 20Gbps connector (supports USB Type-C® ) ;1 x USB 10Gps connector (supports USB Type-C® ) ;2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Alteration PCIe mode switch;1 x FlexKey button ;1 x Front Panel Audio header (F_AUDIO);1 x ReTry button;1 x Start button;1 x 10-1 pin System Panel header;1 x Thermal Sensor header;1 x Thunderbolt™ (USB4®) header*;* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
Form factorATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory type4 x DIMM slots, max. 192GB, DDR5;Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*;Dual channel memory architecture;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM Flex;NitroPath DRAM Technology;DIMM FIT;ASUS Enhanced Memory Profile III (AEMP III);* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration;* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
ManufacturerASUS

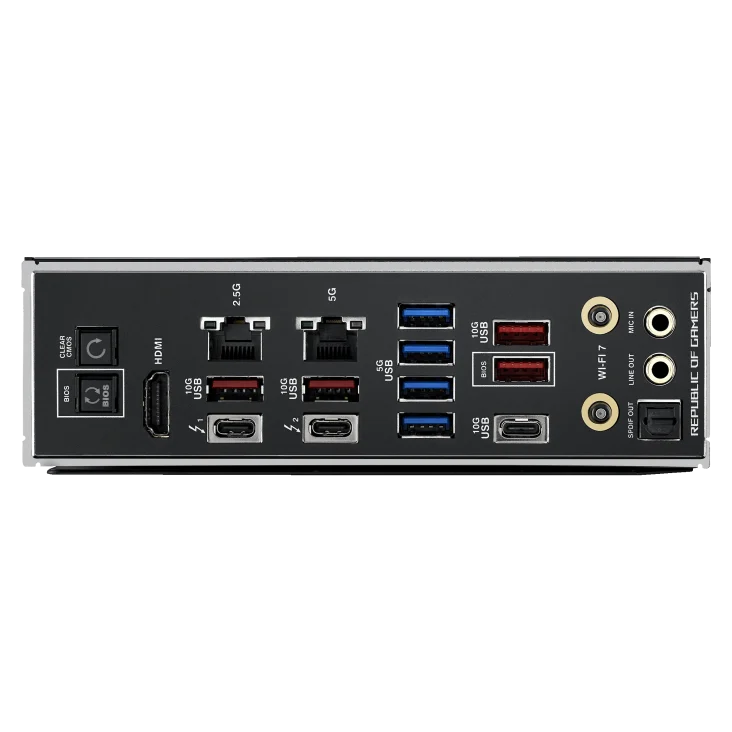

Rear panel I/O1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;1 x Realtek 5Gb Ethernet port;2 x Gold-plated audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button ;1 x Clear CMOS button;Rear USB (Total 11 ports);2 x Thunderbolt™ 4 ports (2 x USB Type-C®);5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A);Front USB (Total 10 ports);1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**;1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A;** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A;2 x Thunderbolt™ 4 USB Type-C® ports;5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®);4 x USB 5Gbps ports (4 x Type-A)
CPU's supportedSupport Intel® Core™ Ultra Processors (Series 2) , LGA1851*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Expansion slotsIntel® Core™ Ultra Processors (Series 2)*;-1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x1 slot**;When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
