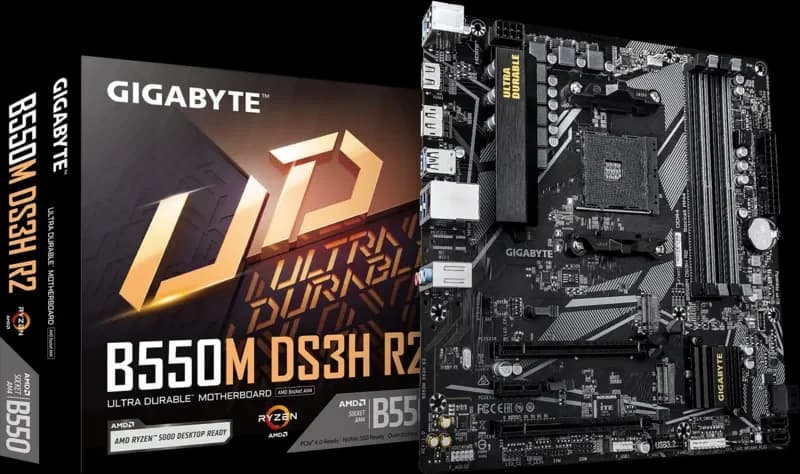

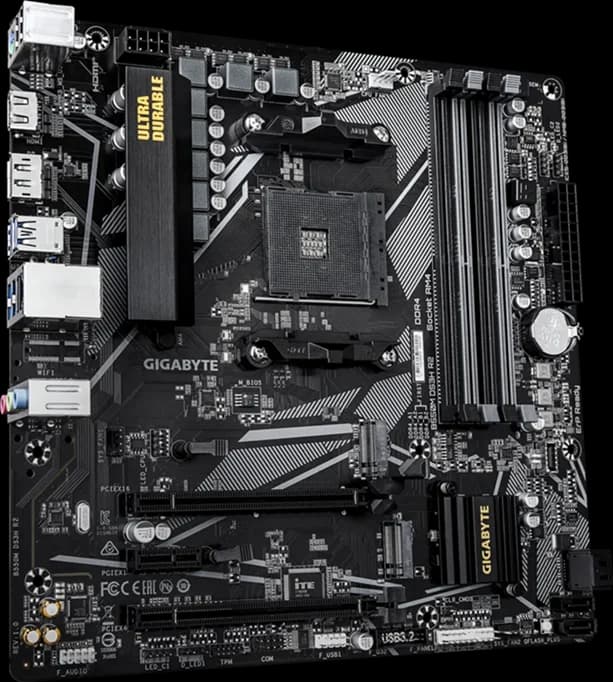

GB B550M DS3H R2 / AM4

AMD AM4

92,74 €

● In stock

92,74 €

// Tech specs

ManufacturerGIGABYTE

ChipsetAMD B550

CPU supportAMD Socket AM4, support for:; AMD Ryzen™ 5000 G-Series Processors/; AMD Ryzen™ 5000 Series Processors/; AMD Ryzen™ 4000 G-Series Processors…

Memory4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400…

Storagex M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:; - AMD Ryzen™ 5000/3000 Series Processors sup…

Expansion1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen…

Form factorMicro ATX Form Factor; 24.4cm x 24.4cm

EAN4719331870454

ModelB550M DS3H R2

▸ Full specifications

OSSupport for Windows 11 64-bit; Support for Windows 10 64-bit

LanRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

USBCPU:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

BIOS1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

AudioRealtek® ALC1220 CODEC; * The back panel line out jack supports DSD audio.; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

ChipsetAMD B550

Storagex M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:; - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs; 4 x SATA 6Gb/s connectors

// Compatibility

Motherboards · AMD Socket AM4, support for:; AMD Ryzen™ 5000 G-Series Processors/; AMD Ryzen™ 5000 Series Processors/; AMD Ryzen™ 4000 G-Series Processors/; AMD Ryzen™ 3000 G-Series Processors/; AMD Ryzen™ 3000 Series Processors

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.; (Graphics specifications may vary depending on CPU support.); Maximum shared memory of 16 GB

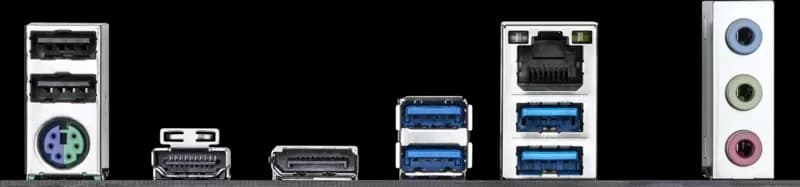

ConnectorsInternal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x Q-Flash Plus button; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 1 x DisplayPort (Note); 4 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks; (Note) Actual support may vary by CPU.

Form factorMicro ATX Form Factor; 24.4cm x 24.4cm

Memory type4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

ManufacturerGigabyte

Rear panel I/OiTE® I/O Controller Chip

CPU's supportedAMD Socket AM4, support for:; AMD Ryzen™ 5000 G-Series Processors/; AMD Ryzen™ 5000 Series Processors/; AMD Ryzen™ 4000 G-Series Processors/; AMD Ryzen™ 3000 G-Series Processors/; AMD Ryzen™ 3000 Series Processors

Expansion slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4; - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
