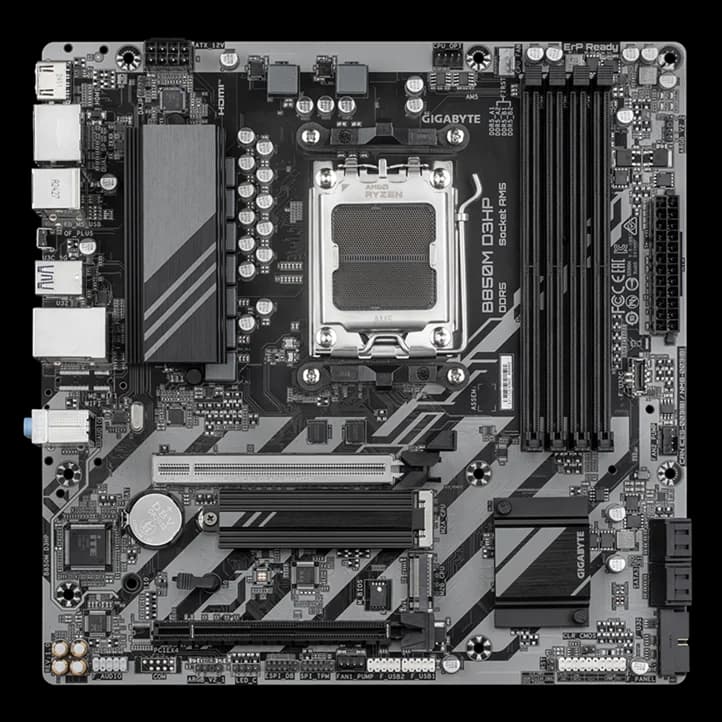

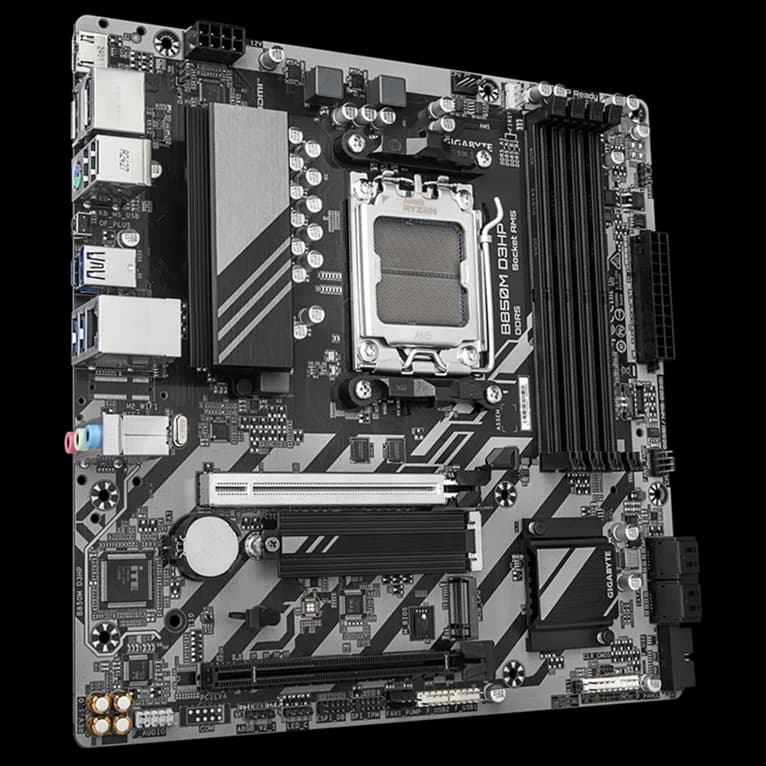

GB B850M D3HP /AM5

AMD AM5

144,66 €

● In stock

GB B850 4xDDR5 4xSATA3 RAID HDMI 2xDP 2xM2 GLAN 2xPCIEx16

144,66 €

// Tech specs

ManufacturerGIGABYTE

ChipsetAMD B850

CPU supportAMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors

MemorySupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 600…

Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors…

Expansion1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen™ 8000…

Form factorMicro ATX Form Factor; 24.4cm x 24.4cm

ModelB850M D3HP 1.2

▸ Full specifications

OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit;Bundled Software: Norton® Internet Security (OEM version);LAN bandwidth management software

LanRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

USBCPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 1 x USB 3.2 Gen 1 port on the back panel;- 1 x USB 2.0/1.1 port on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

AudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel

ChipsetAMD B850

Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 support for SATA storage devices

// Compatibility

Motherboards · AMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports;- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version.

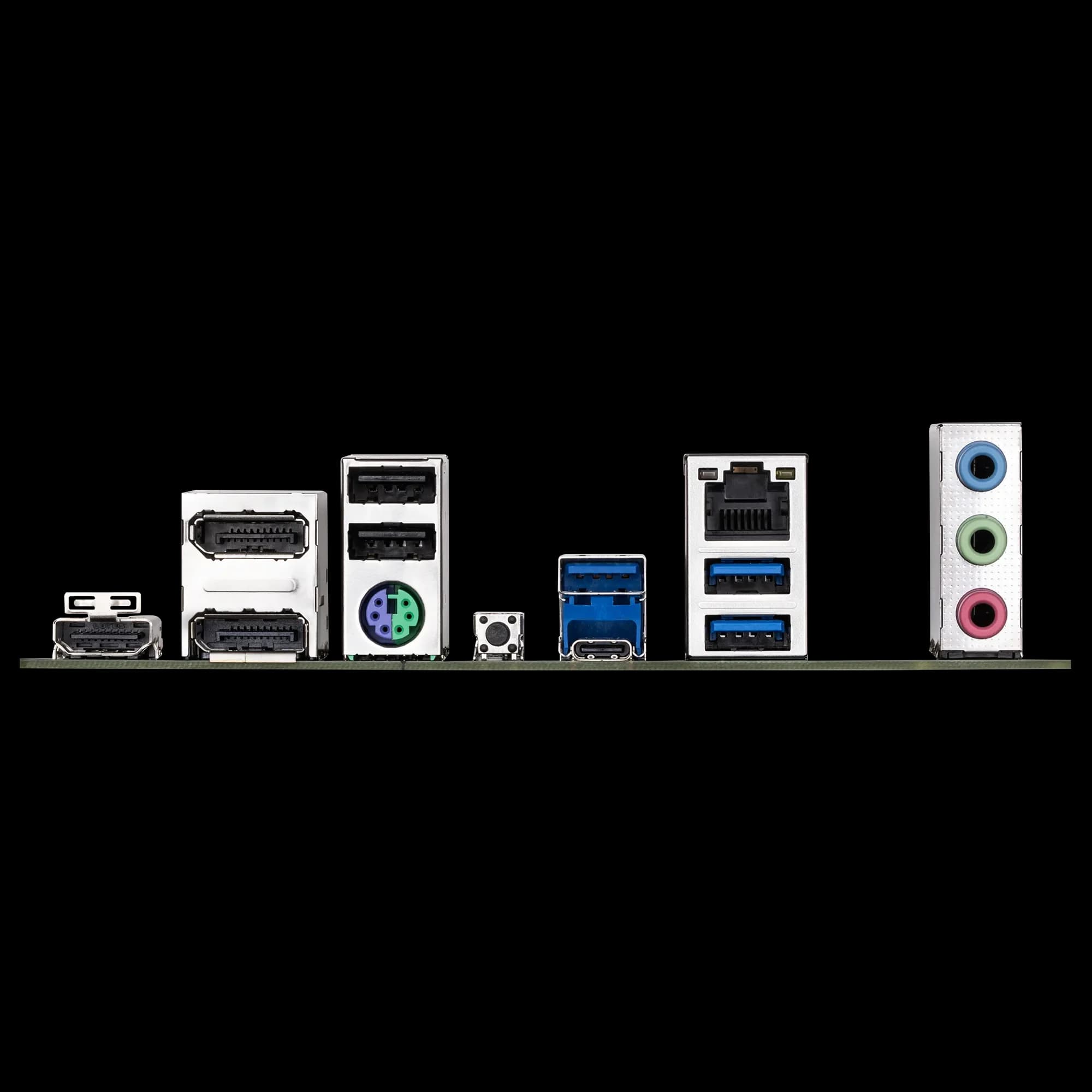

Connectors1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;1 x system fan header;1 x system fan/water cooling pump header;2 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x HDMI port (Note);2 x DisplayPorts (Note);1 x PS/2 keyboard/mouse port;1 x Q-Flash Plus button;1 x USB Type-C® port, with USB 3.2 Gen 1 support;3 x USB 3.2 Gen 1 ports;2 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks;(Note) Actual support may vary by CPU.

Form factorMicro ATX Form Factor; 24.4cm x 24.4cm

Memory typeSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme;Memory Profile (XMP) memory modules

ManufacturerGIGABYTE

Rear panel I/OiTE® I/O Controller Chip

CPU's supportedAMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors

Expansion slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
