OSSupport for Windows® 11 64-bit
LanRealtek® 8126-CG 5G LAN
AudioRealtek® ALC4080 Codec;7.1-Channel USB High Performance Audio;Supports up to 32-bit/384kHz playback on front panel;Supports S/PDIF output
ChipsetAMD X870
Storage4x M.2;-M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;-M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;-M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices;-M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;-4x SATA 6G;M2_1 & M2_2 slots;• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors);• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors);upports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
GraphicsAMD MULTI-GPU Support;1x HDMI™;Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz;2x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Warranty36 Months
WirelessWi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth5.4
Connectors1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);6x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 20Gbps Type C ports
Form factorATX 304.8mmx243.84mm
Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8400+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPO™;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only*
ManufacturerMSI

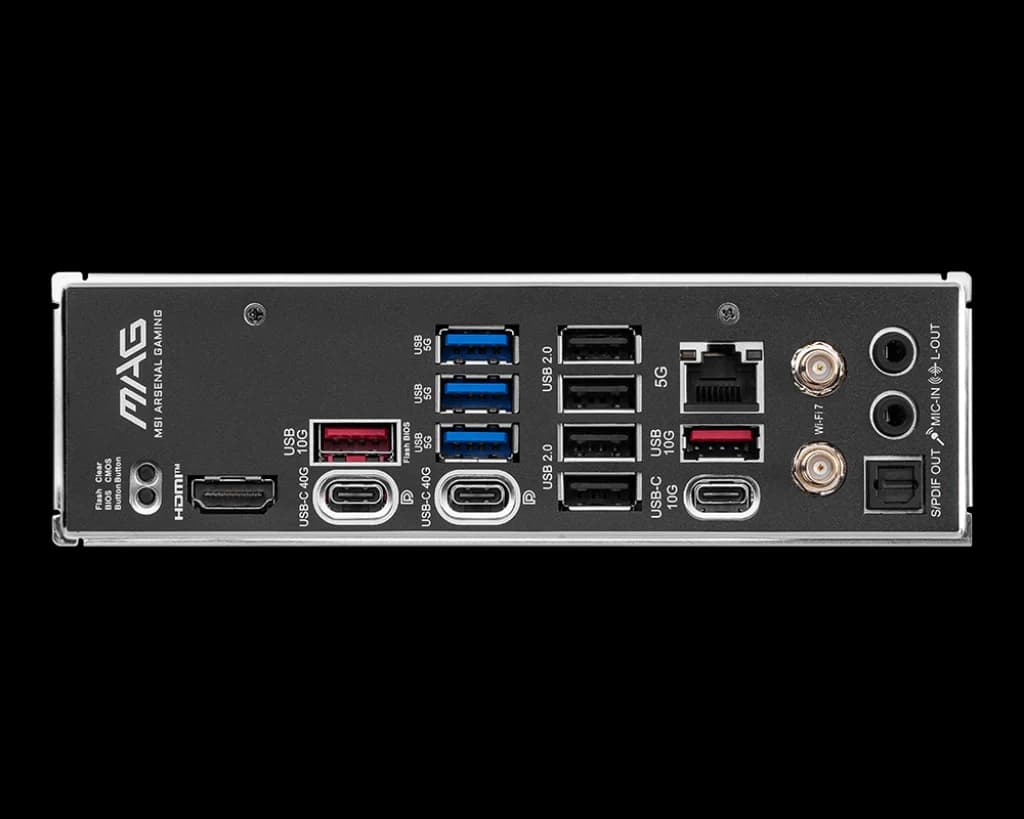

Rear panel I/O4x USB 2.0 (Rear);4x USB 2.0 (Front);3x USB 5Gbps Type A (Rear);4x USB 5Gbps Type A (Front);2x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Rear);1x USB 20Gbps Type C (Front);2x USB 40Gbps Type C (Rear)
CPU's supportedSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Expansion slots3x PCI-E x16 slot;-PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);-PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);-PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 slot;• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors);• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
