Asrock A620AM-X WiFi

AMD AM5

105,05 €

● In stock

105,05 €

// Tech specs

ManufacturerASROCK

ChipsetAMD A620A

CPU supportSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

MemoryDual Channel DDR5 Memory Technology; 2 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Max. capacity of s…

StorageCPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_2, Key M), supports t…

ExpansionCPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3); - 1 x M.2 Socket (Key E), su…

Form factorMicro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

EANA620AM-X WIFI

ModelA620AM-X WIFI

▸ Full specifications

OSMicrosoft Windows® 10 64-bit / 11 64-bit

Lan2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software -Smart Auto Adjust Bandwidth Control -Visual User Friendly UI -Visual Network Usage Statistics -Optimized Default Setting for Game, Browser, and Streaming Modes -User Customized Priority Control

USBCPU:; - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_3)); Chipset:; - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front); - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1 and USB32_2), 2 Front); - 6 x USB 2.0 (2 Rear, 4 Front)

BIOS256Mb AMI UEFI Legal BIOS with GUI support

RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)

ChipsetAMD A620A

StorageCPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset:; - 4 x SATA3 6.0 Gb/s Connectors

// Compatibility

Motherboards · Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

Integrated AMD RDNA™ graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Connectors1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control); 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen1 Header

Form factorMicro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

Memory typeDual Channel DDR5 Memory Technology; 2 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Max. capacity of system memory: 128GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

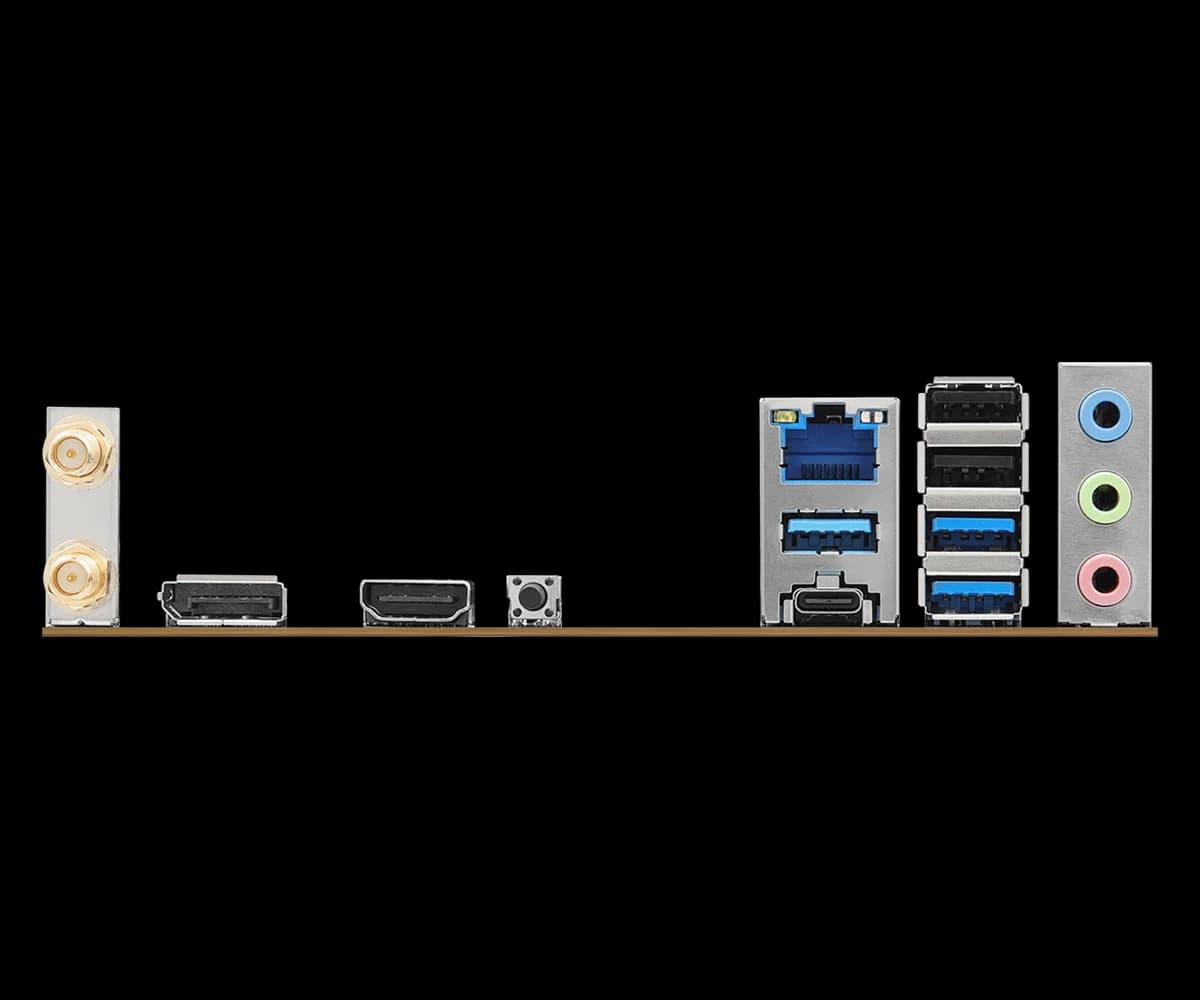

Rear panel I/O2 x Antenna Ports; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x USB 3.2 Gen1 Type-C Port; 3 x USB 3.2 Gen1 Type-A Ports; 2 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; HD Audio Jacks: Line in / Front Speaker / Microphone

CPU's supportedSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Expansion slotsCPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
