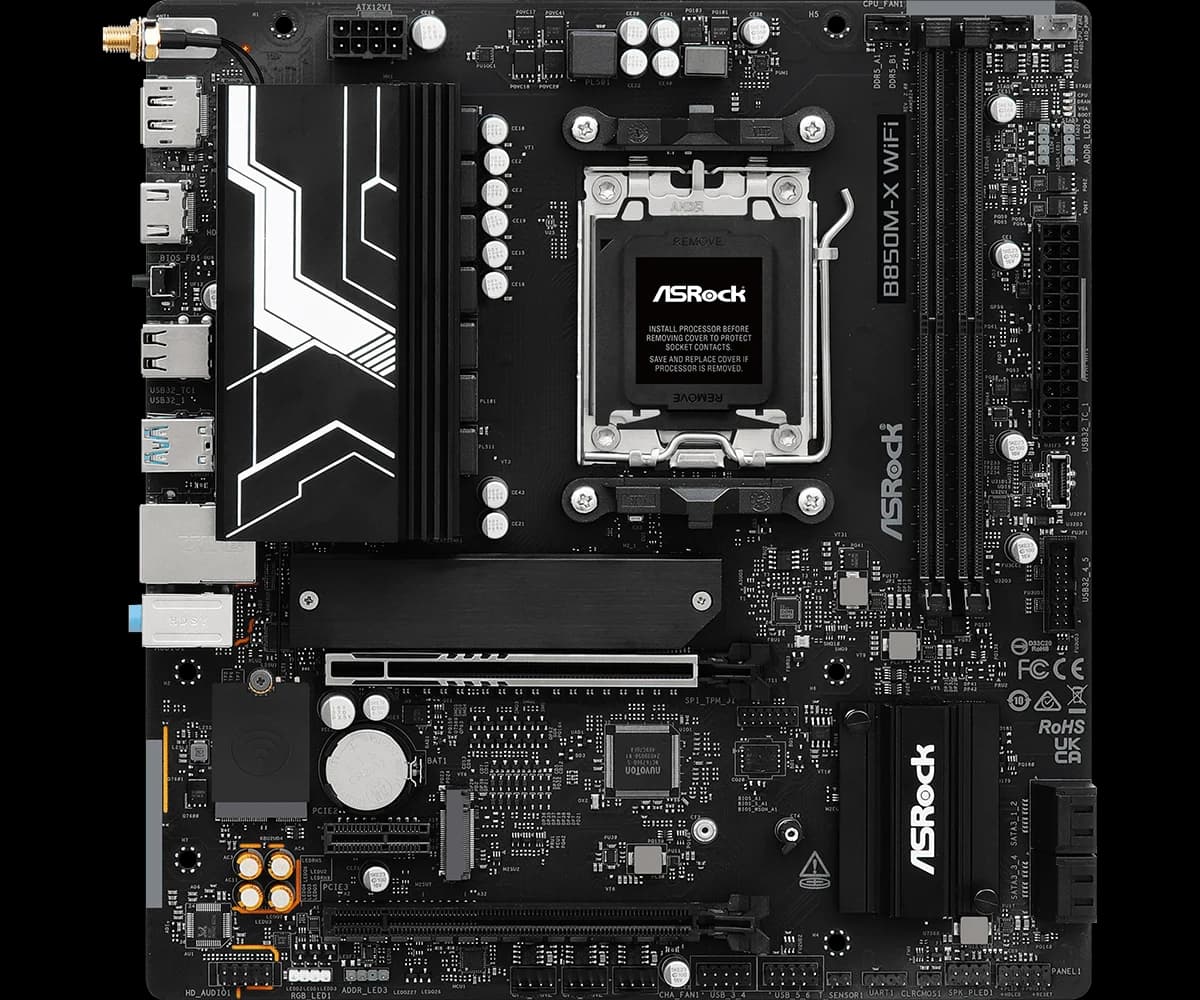

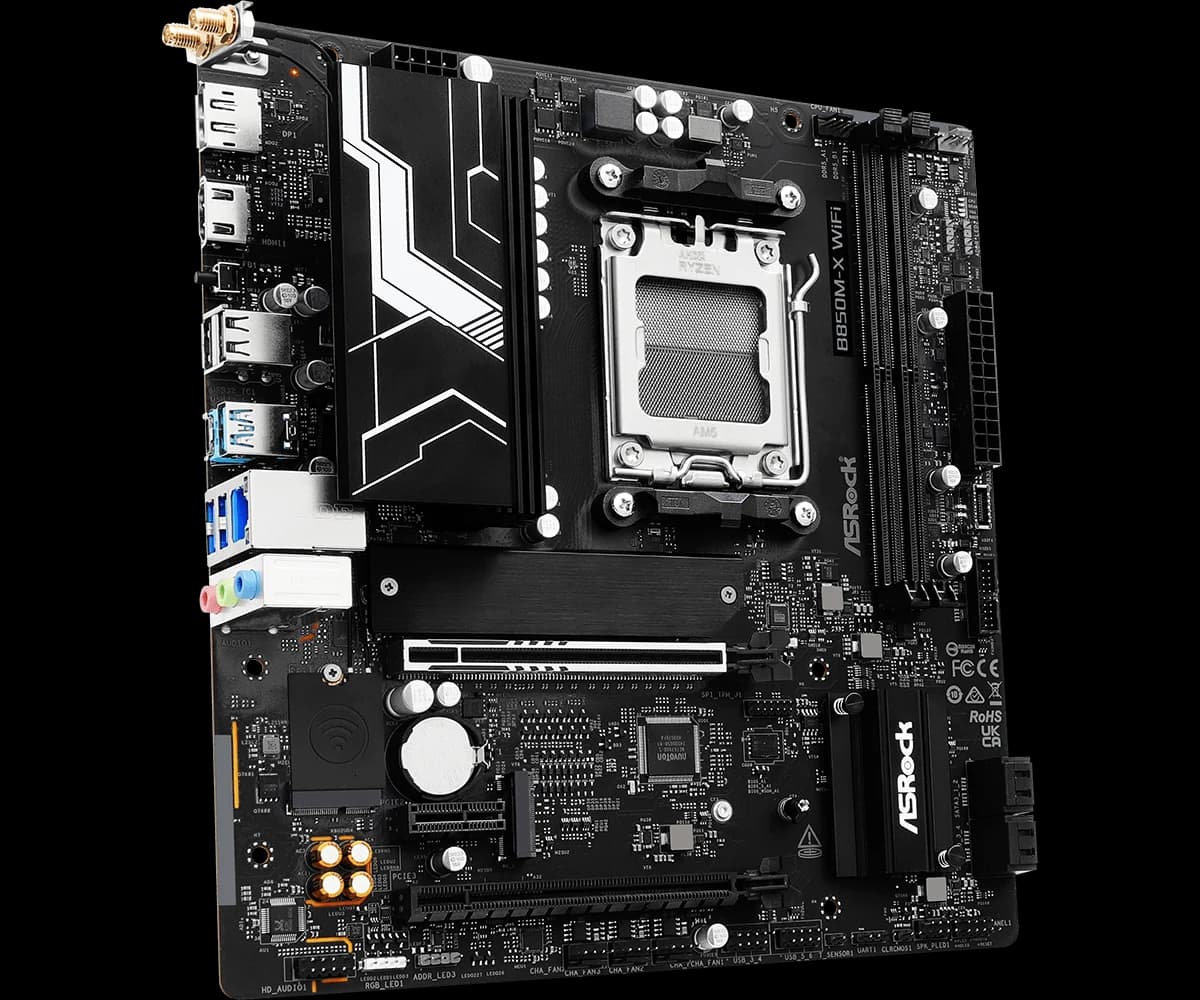

Asrock B850M-X WiFi R2.0 /AM5

AMD AM5

127,98 €

● In stock

127,98 €

// Tech specs

ManufacturerASROCK

ChipsetAMD B850

CPU supportSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

MemoryDual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC);Max. capacity of syst…

StorageCPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports…

ExpansionCPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x…

Form factorMicro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

EANB850M-X WIFI R2.0

ModelB850M-X WIFI R2.0

▸ Full specifications

OSMicrosoft Windows® 10 64-bit / 11 64-bit

Lan2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Customized Priority Control

USBCPU:;- 3 x USB 3.2 Gen1 Type-A (Rear);- 1 x USB 2.0 (Rear (USB_2));Chipset:;- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front);- 2 x USB 3.2 Gen1 Type-A (Front);- 5 x USB 2.0 (1 Rear (USB_1), 4 Front)

BIOS256Mb AMI UEFI Legal BIOS with GUI support

Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec);Nahimic Audio

OtherSoftware;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash

ChipsetAMD B850

StorageCPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset:;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

// Compatibility

Motherboards · Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

GraphicsIntegrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Wireless802.11axe Wi-Fi 6E Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe;Supports Dual-Band 2x2 with extended 6GHz band support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.2;Supports MU-MIMO

Connectors1 x Thermistor Cable Header;1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8 pin 12V Power Connector (Hi-Density Power Connector);1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports);1 x Front Panel Type C USB 3.2 Gen1 Header

Form factorMicro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

Memory typeDual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC);Max. capacity of system memory: 128GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

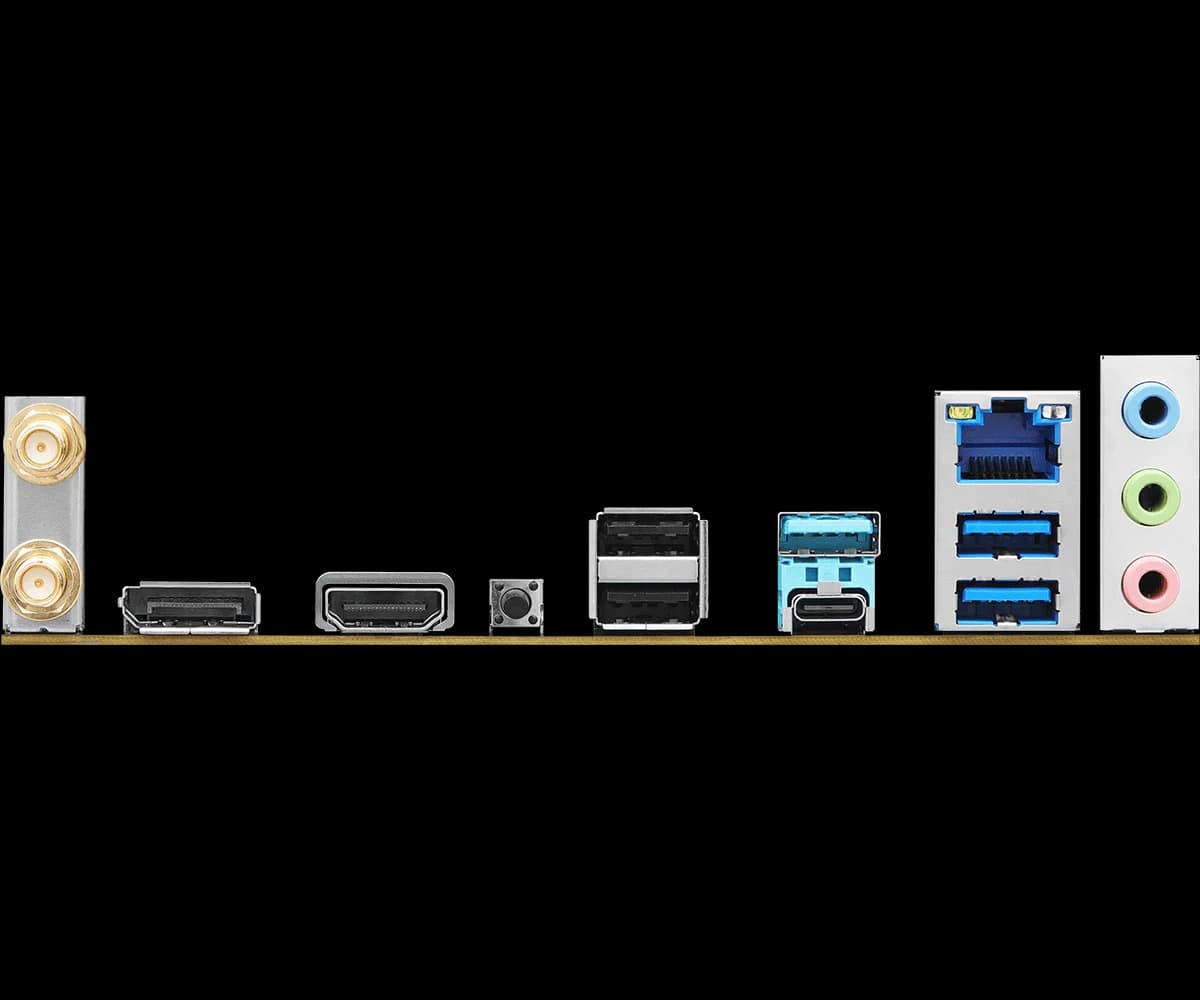

Rear panel I/O2 x Antenna Ports;1 x HDMI Port;1 x DisplayPort 1.4;1 x USB 3.2 Gen1 Type-C Port;3 x USB 3.2 Gen1 Type-A Ports;2 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;HD Audio Jacks: Line in / Front Speaker / Microphone

CPU's supportedSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Expansion slotsCPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
