Asrock X870 Nova WiFi /AM5

AMD AM5

312,50 €

● In stock

312,50 €

// Tech specs

ManufacturerASROCK

ChipsetAMD X870

CPU supportSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

MemoryDual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC)* Max. capacity of sys…

StorageCPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Blazing M.2 Socket (M2_2, Key M), support…

ExpansionCPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode - 1 x Vertical M.2 Socke…

Form factorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB 2oz Copper PCB

ModelX870 NOVA WIFI

▸ Full specifications

OSMicrosoft Windows® 10 64-bit / 11 64-bit

Lan5 Gigabit LAN 10/100/1000/2500/5000 Mb/s Realtek RTL8126

USBCPU: - 2 x USB4 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)

BIOS256Mb AMI UEFI Legal BIOS with GUI support

RAIDSupports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Audio7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Nahimic Audio

ChipsetAMD X870

StorageCPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 2 x SATA3 6.0 Gb/s Connectors

// Compatibility

Motherboards · Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

GraphicsIntegrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Wireless802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO

Connectors- 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)**** - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED

Form factorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB 2oz Copper PCB

Memory typeDual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC)* Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

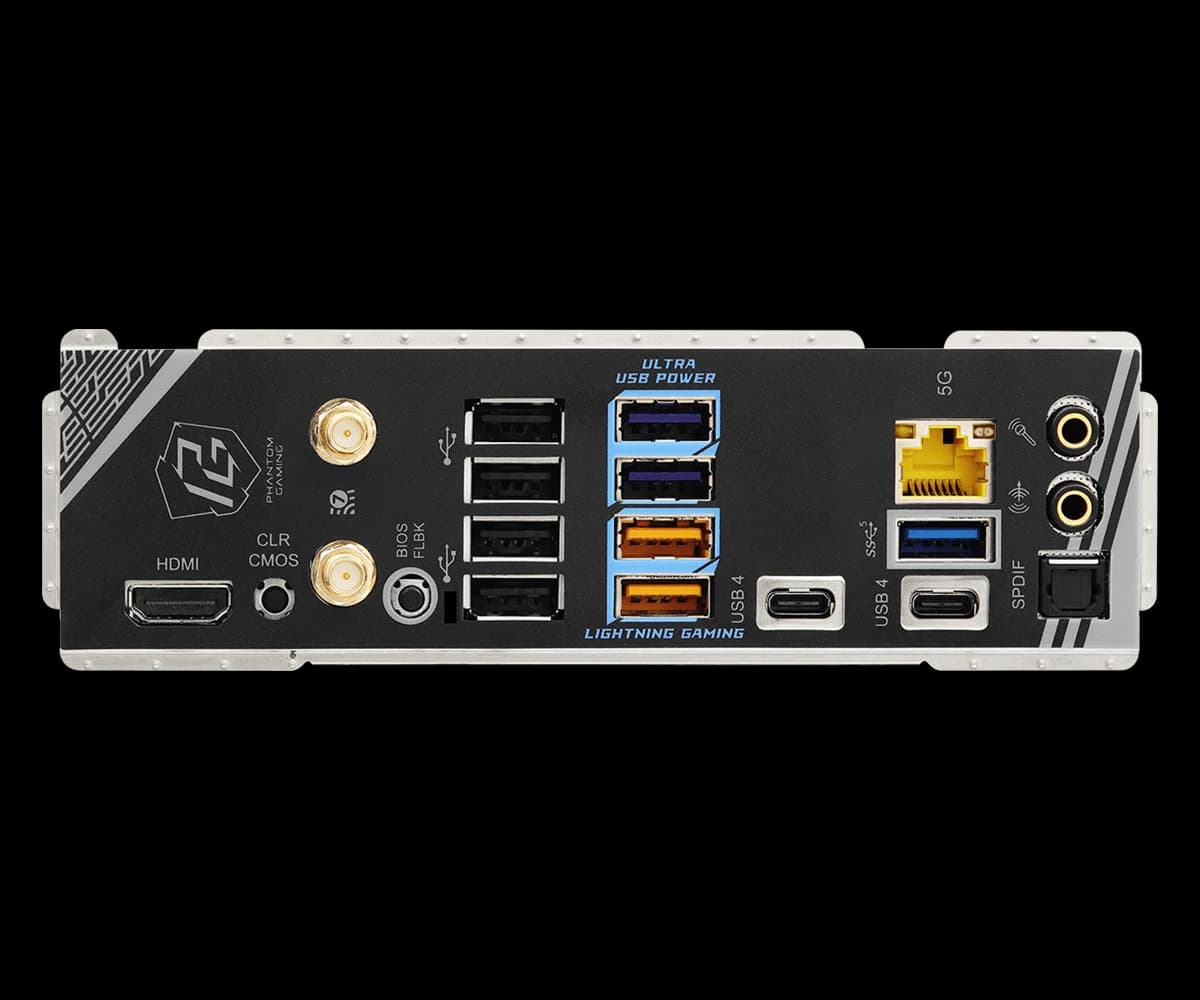

Rear panel I/O- 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)** - 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)

CPU's supportedSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Expansion slotsCPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
