Asrock X870 PRO RS

AMD AM5

220,30 €

● In stock

ASROCK X870 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 2xPCIEx16

220,30 €

// Tech specs

ManufacturerASROCK

ChipsetAMD X870

CPU supportSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

MemoryDual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of syst…

StorageCPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_2, Key M), su…

ExpansionCPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x M.2 Socket (Key E),…

Form factorATX 30.5 cm x 24.4 cm, 8 Layer PCB

EAN4710483949326

ModelX870 PRO RS

▸ Full specifications

OSMicrosoft Windows® 10 64-bit / 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash

Lan2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Customized Priority Control

BIOS256Mb AMI UEFI Legal BIOS with GUI support

Audio7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);- Impedance Sensing on Rear Out port;- Individual PCB Layers for R/L Audio Channel;- Nahimic Audio

ChipsetAMD X870

StorageCPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes;- 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061;- 2 x SATA3 6.0 Gb/s Connectors;Supports RAID 0 and RAID 1 for SATA storage devices;Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

GraphicsIntegrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

// Compatibility

Motherboards · Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

Connectors- 1 x Thermistor Cable Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);- 1 x 24 pin ATX Power Connector;- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);- 1 x Front Panel Audio Connector;- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports);- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports);- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Form factorATX 30.5 cm x 24.4 cm, 8 Layer PCB

Memory typeDual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

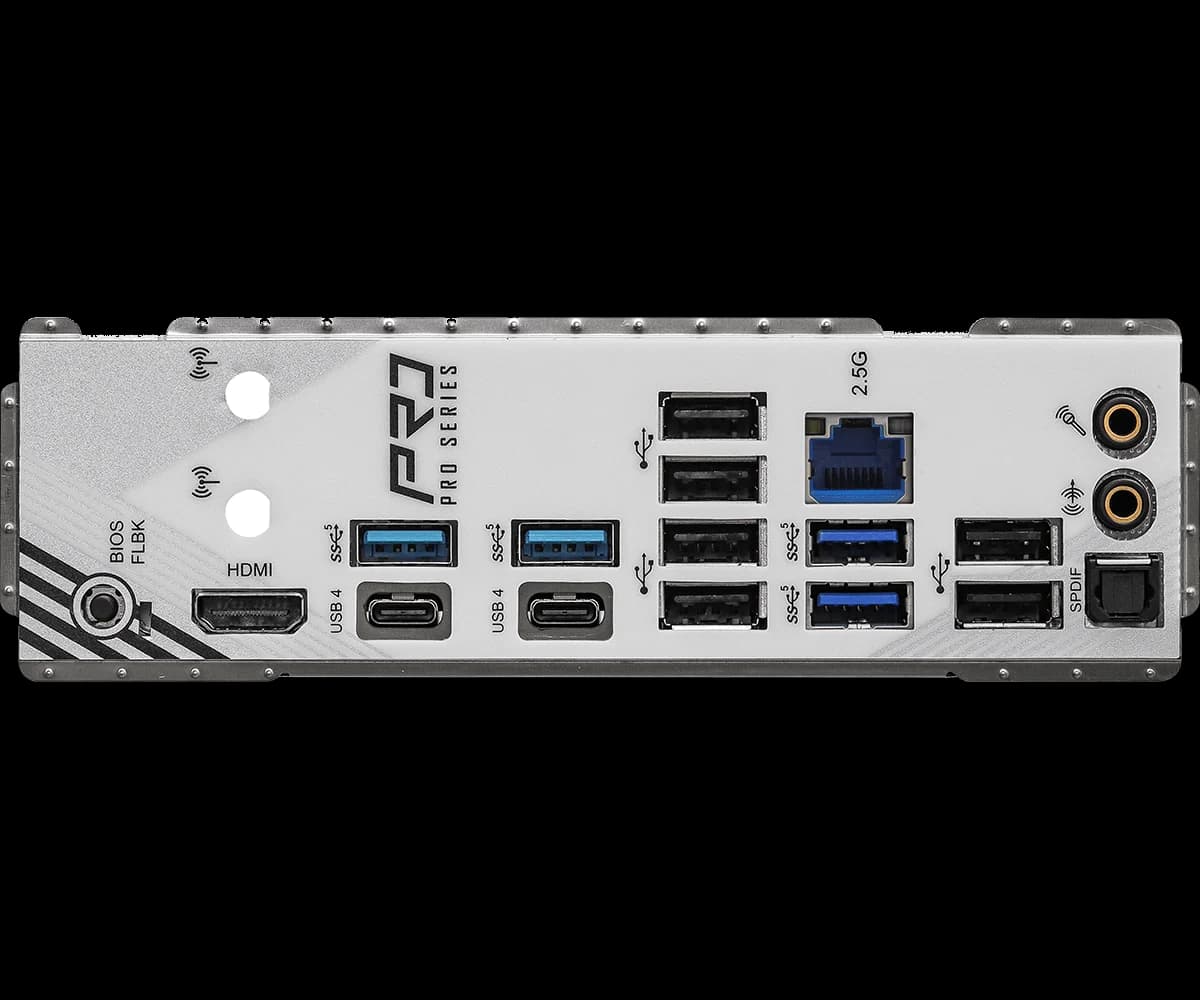

Rear panel I/OCPU;- 2 x USB4 Type-C (Rear);- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2));Chipset;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front);- 9 x USB 2.0 (6 Rear, 3 Front);- 2 x Antenna Mounting Points;- 1 x HDMI Port;- 1 x Optical SPDIF Out Port;- 2 x USB4 Type-C Ports (40 Gb/s);- 4 x USB 3.2 Gen1 Type-A Ports;- 6 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- 1 x BIOS Flashback Button;- 1 x Line Out Jack (Gold Audio Jack);- 1 x Microphone Input Jack (Gold Audio Jack)

CPU's supportedSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Expansion slotsCPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- Supports AMD CrossFire™;- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
