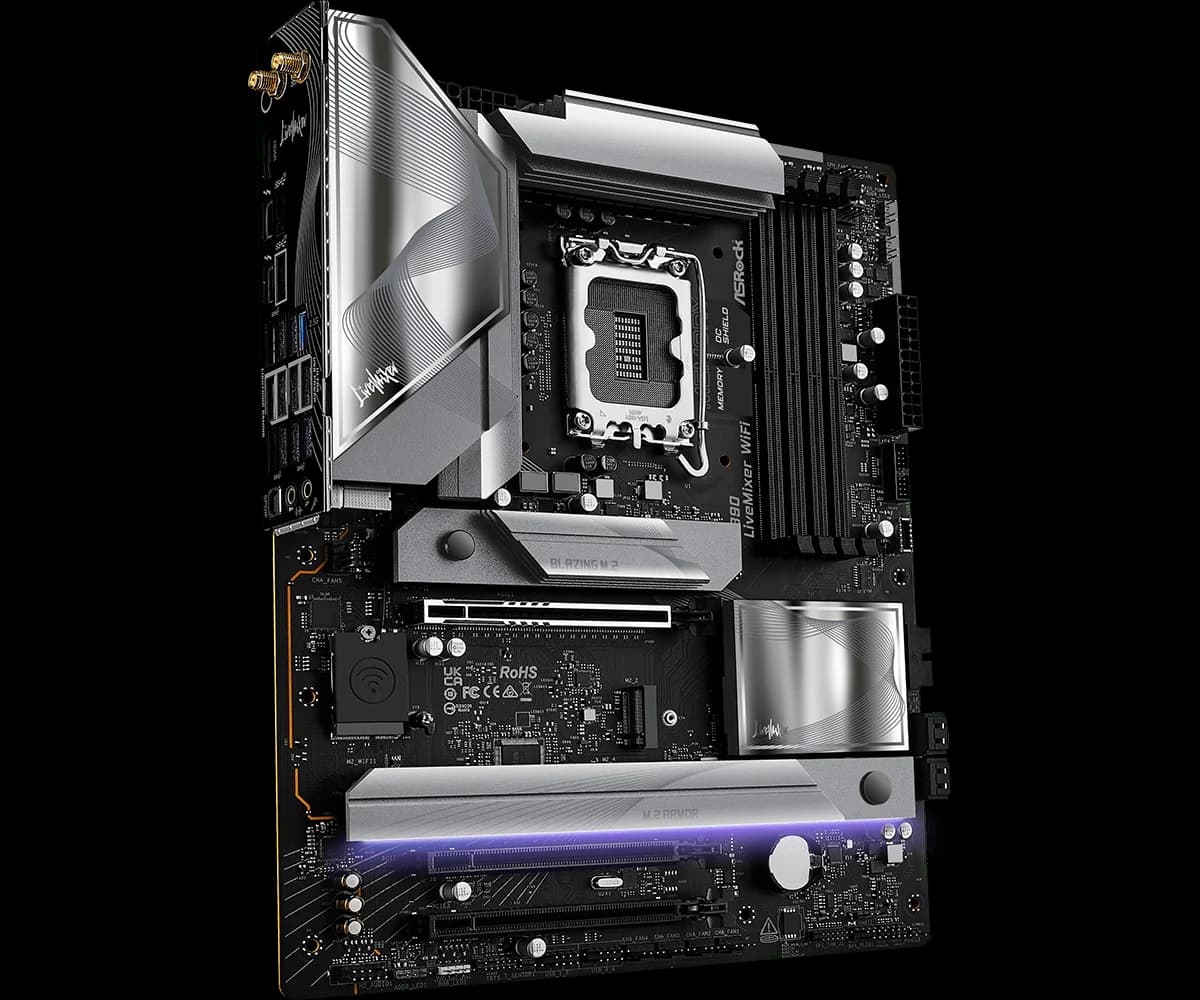

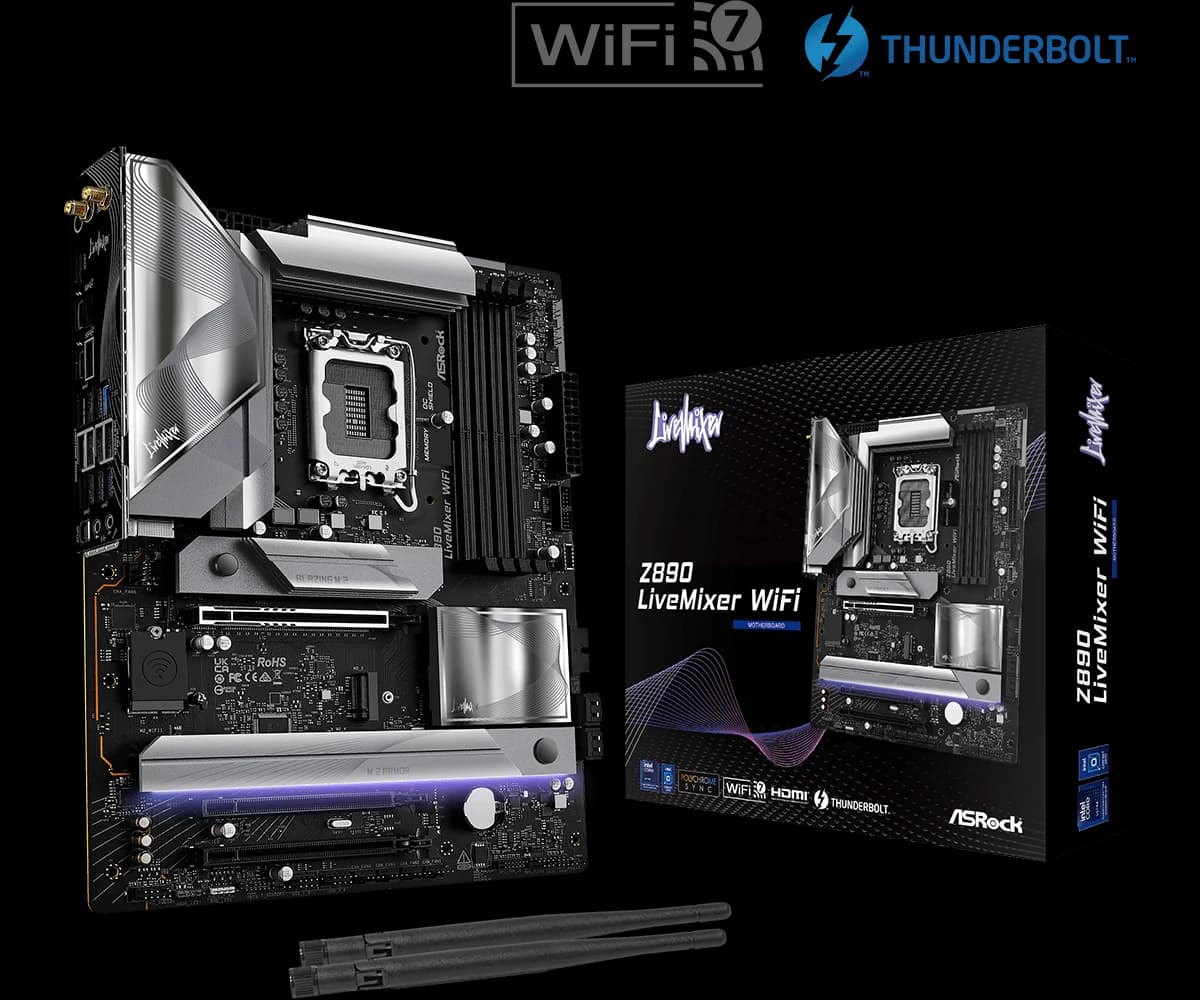

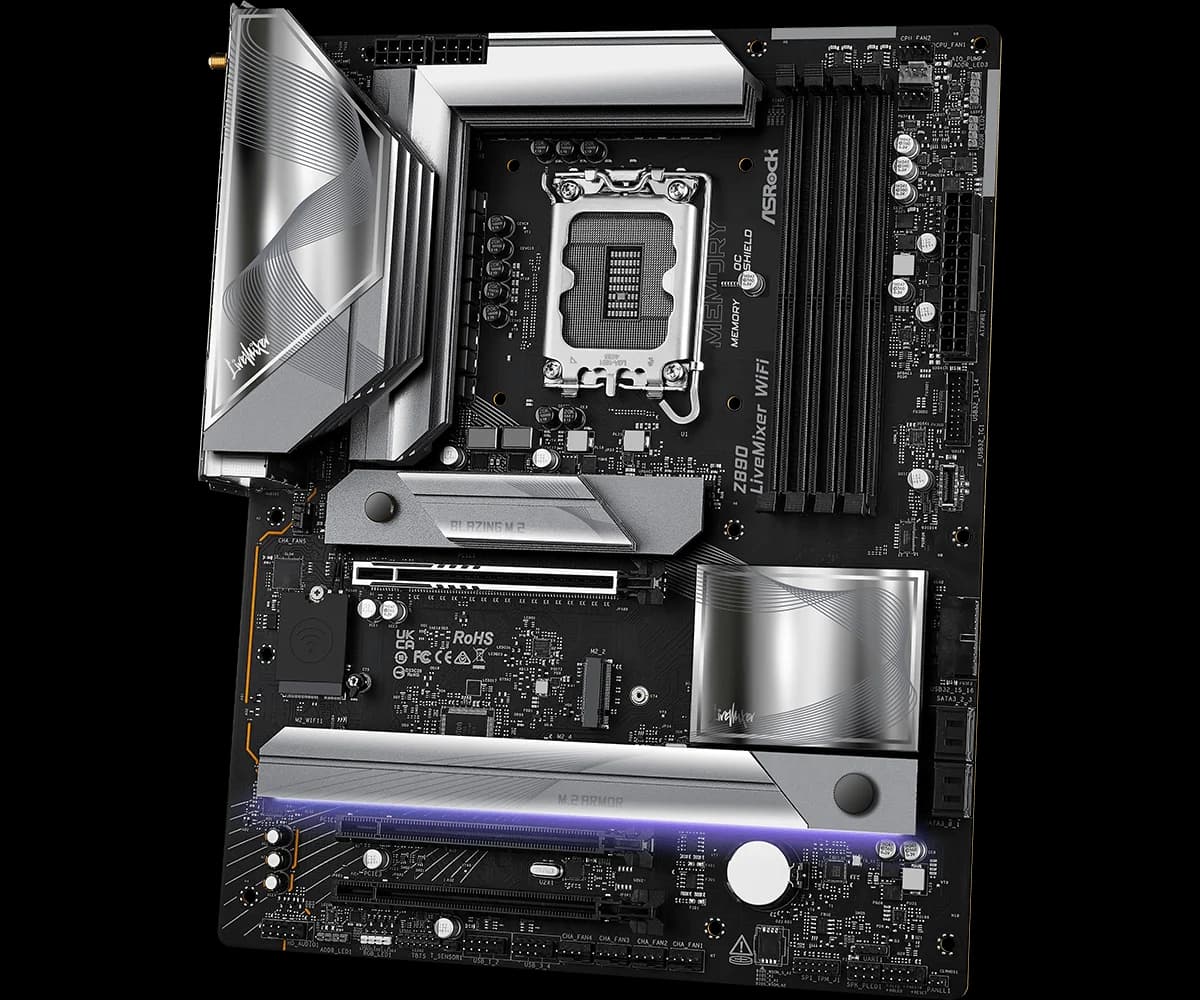

Asrock Z890 Livemixer WiFi

LGA1851 /Intel Core Ultra 200

251,75 €

● In stock

251,75 €

// Tech specs

ManufacturerASROCK

ChipsetIntel® Z890

CPU supportSupports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel® Hybrid Technology; Supports Intel® Turbo Boost Max 3.0 T…

MemoryDual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC); Supports Clocked Un…

StorageCPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_2, Key M), support…

ExpansionCPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode; - 1 x M.2…

Form factorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 2oz Copper PCB

EANZ890 LIVEMIXER WIFI

ModelZ890 LIVEMIXER WIFI

▸ Full specifications

OSMicrosoft Windows® 11 64-bit

Lan2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control

USBCPU:; - 2 x Thunderbolt™ 4/USB4 Type-C (Rear); Chipset:; - 1 x USB 3.2 Gen2x2 Type-C (Front); - 2 x USB 3.2 Gen2 Type-A (Rear); - 14 x USB 3.2 Gen1 (10 Rear, 4 Front); - 4 x USB 2.0 (Front)

BIOS256Mb AMI UEFI Legal BIOS with GUI support

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Audio7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); Impedance Sensing on Rear Out port; Individual PCB Layers for R/L Audio Channel; Nahimic Audio

ChipsetIntel® Z890

StorageCPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset:; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes; - 4 x SATA3 6.0 Gb/s Connectors

// Compatibility

Motherboards · Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel® Hybrid Technology; Supports Intel® Turbo Boost Max 3.0 Technology; Supports Intel® Thermal Velocity Boost (TVB); Supports Intel® Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

GraphicsIntel® Xe LPG Graphics Architecture; 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*

Wireless802.11be 2x2 Wi-Fi 7 Module; Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz frequency band* 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO

Connectors1 x Thermistor Cable Header; 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control); 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Form factorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 2oz Copper PCB

Memory typeDual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC); Supports Clocked Unbuffered DIMM (CUDIMM); Max. capacity of system memory: 256GB; Supports Intel® Extreme Memory Profile (XMP) 3.0x

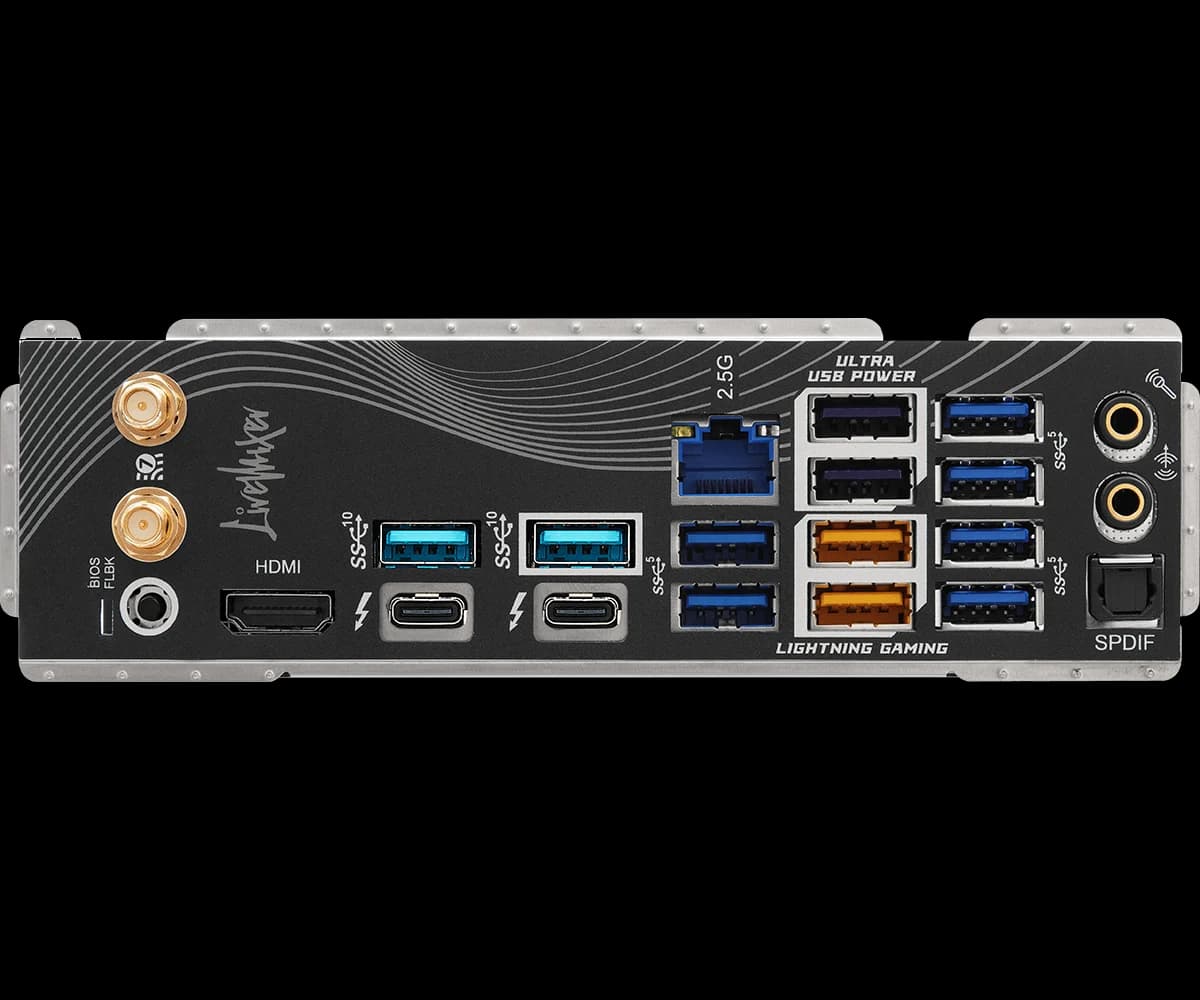

Rear panel I/O2 x Antenna Ports; - 1 x HDMI Port; - 1 x Optical SPDIF Out Port; - 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s); - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s); - 10 x USB 3.2 Gen1 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - 1 x Line Out Jack (Gold Audio Jack); - 1 x Microphone Input Jack (Gold Audio Jack)

CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel® Hybrid Technology; Supports Intel® Turbo Boost Max 3.0 Technology; Supports Intel® Thermal Velocity Boost (TVB); Supports Intel® Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration

Expansion slotsCPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
