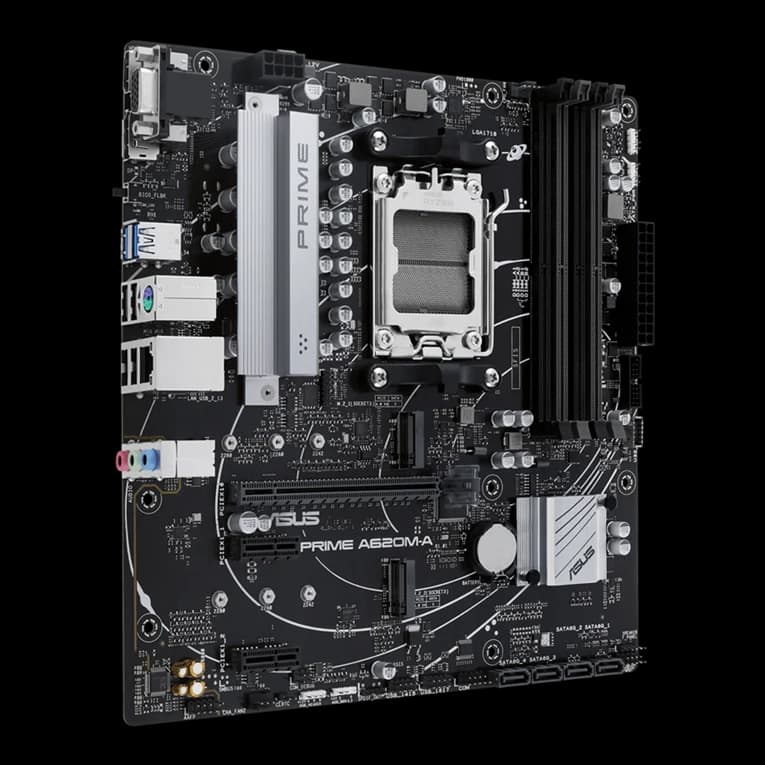

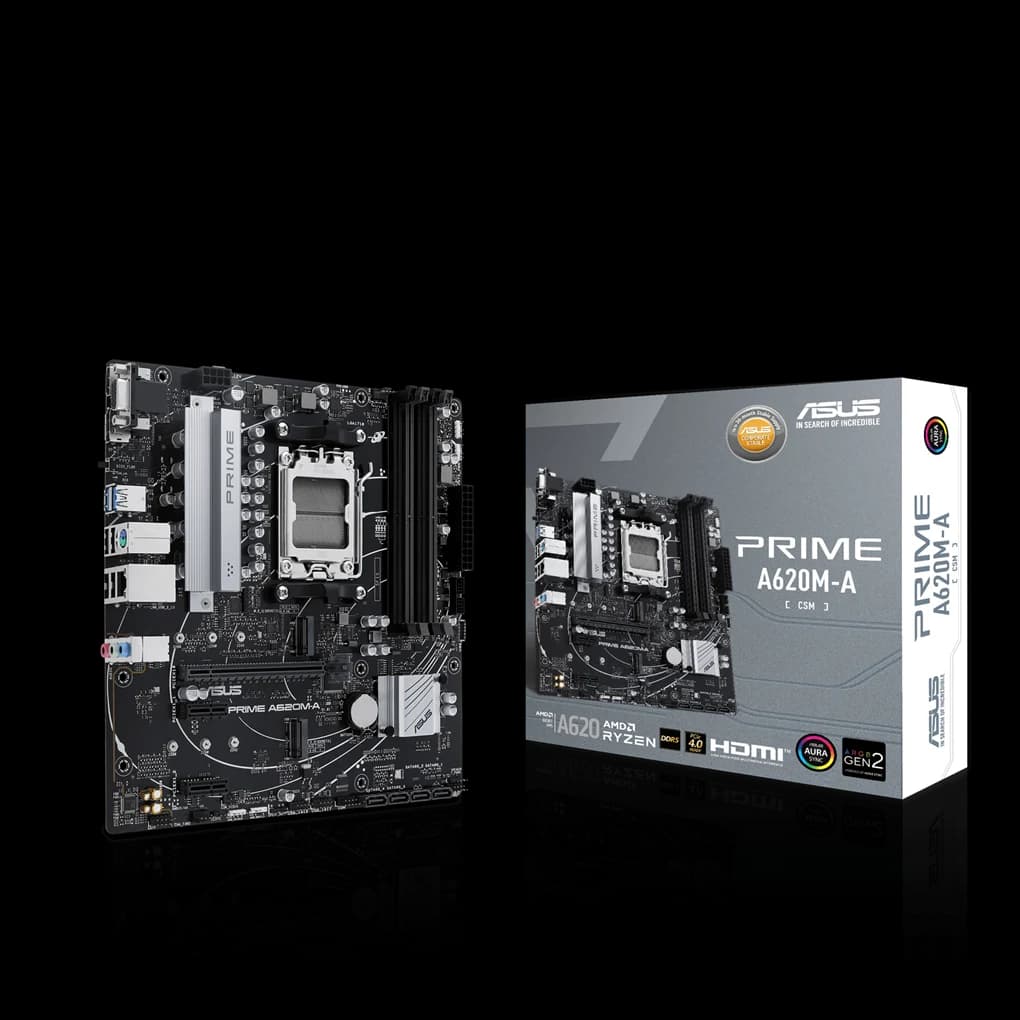

Asus Prime A620M-A-CSM

AMD AM5

140,05 €

● In stock

ASUS A620 4xDDR5 4xSATA3 HDMI DP VGA 2xM2 GLAN 1xPCIEx16 1xPCIEx1

140,05 €

// Tech specs

ManufacturerASUS

ChipsetAMD A620 Chipset

CPU supportAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Memory4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(…

StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2…

ExpansionAMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PC…

Form factormicro-ATX Form Factor;24.4 cm x 24.4 cm

EAN4711387176405

Model90MB1F10-M0EAY0

▸ Full specifications

OSWindows® 11, Windows® 10 64-bit

Lan1 x Realtek 1Gb Ethernet

USBRear USB (Total 6 ports);2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports

BIOS256 Mb Flash ROM, UEFI AMI BIOS

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

ChipsetAMD A620 Chipset

StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);AMD A620 Chipset;4 x SATA 6Gb/s ports

// Compatibility

Motherboards · AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

Graphics1 x DisplayPort;1 x VGA port;1 x HDMI™ port

ConnectorsFan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® );1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1pin);1 x 10-1 pin System Panel header

Form factormicro-ATX Form Factor;24.4 cm x 24.4 cm

Memory type4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);OptiMem II

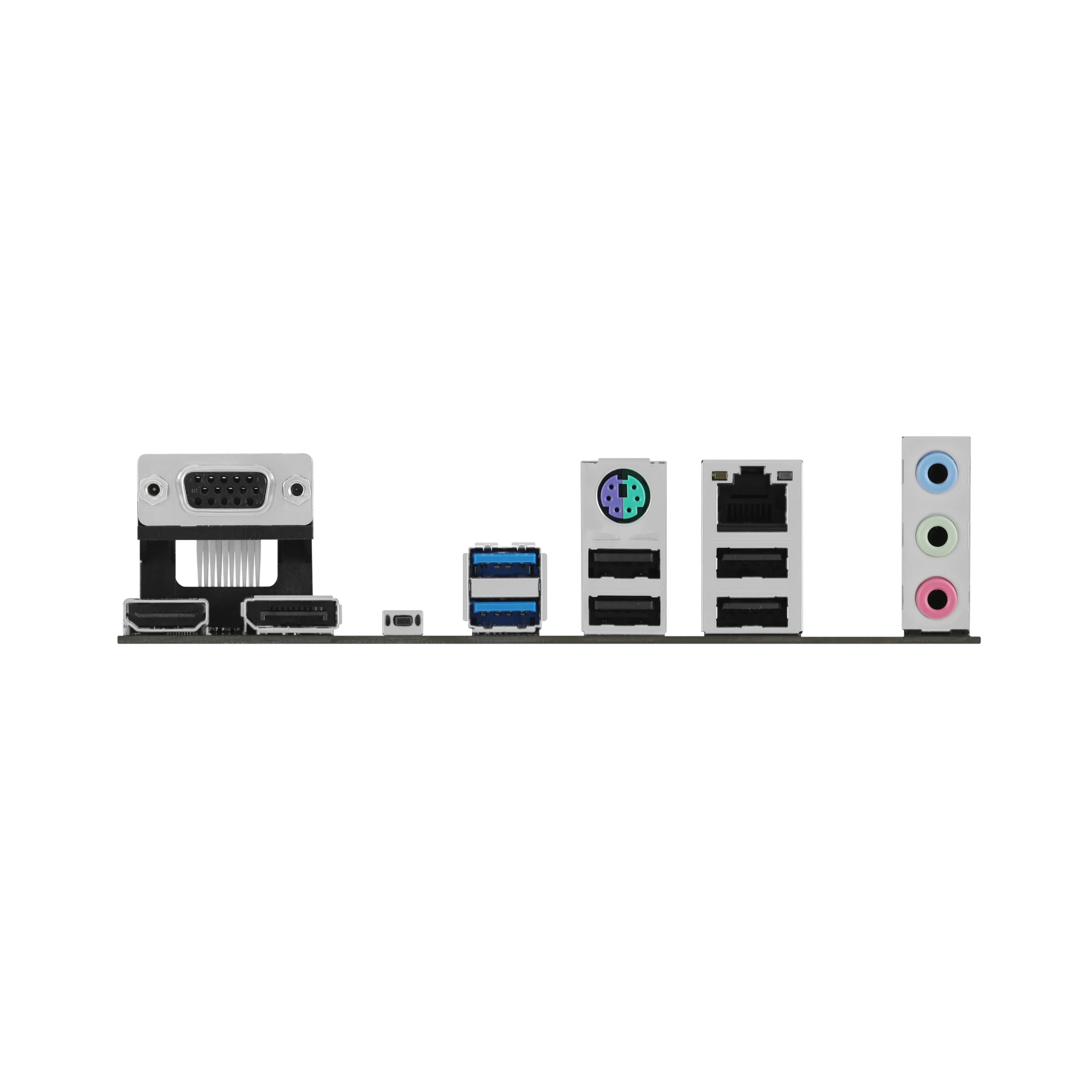

Rear panel I/O2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x VGA port;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button;1 x PS/2 Keyboard/Mouse combo port

CPU's supportedAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Expansion slotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD A620 Chipset;2 x PCIe 3.0 x1 slots
