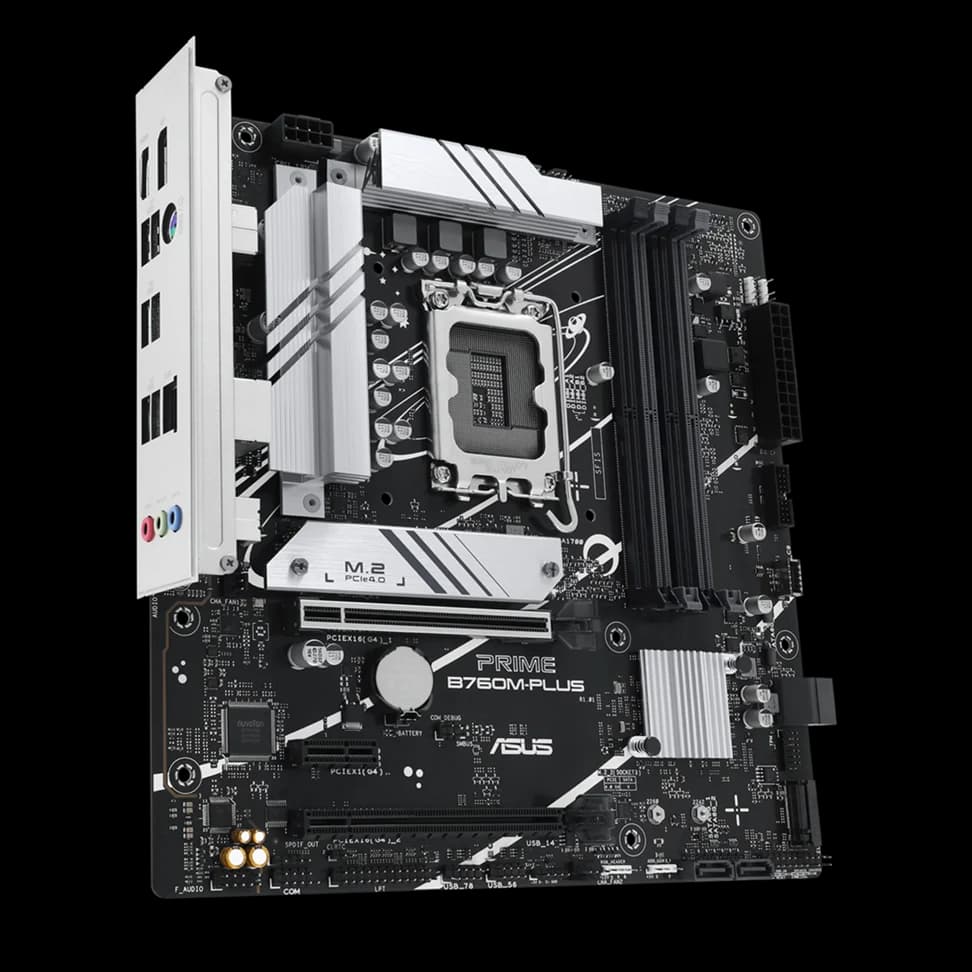

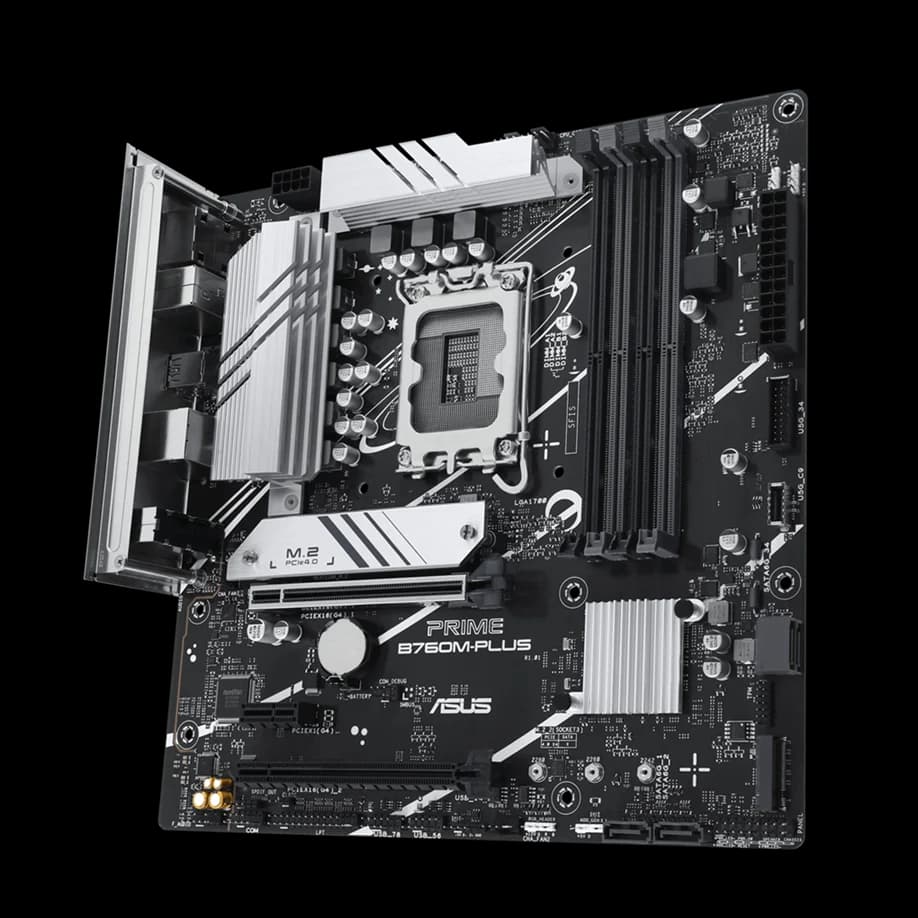

Asus Prime B760M-PLUS

LGA1700 /Intel 12th and 13th Gen

165,76 €

● In stock

ASUS B760 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1

165,76 €

// Tech specs

ManufacturerASUS

ChipsetIntel® B760 Chipset

CPU supportIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®

Memory4 x DIMM slots, max. 192GB, DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4…

StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/226…

ExpansionIntel® CoreTM Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1…

Form factormicro-ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

EAN4711387469910

Model90MB1GY0-M0EAY0

▸ Full specifications

OSWindows® 11, Windows® 10 64-bit

Lan1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

BIOS128 Mb Flash ROM, UEFI AMI BIOS

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback"; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers

ChipsetIntel® B760 Chipset

StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports

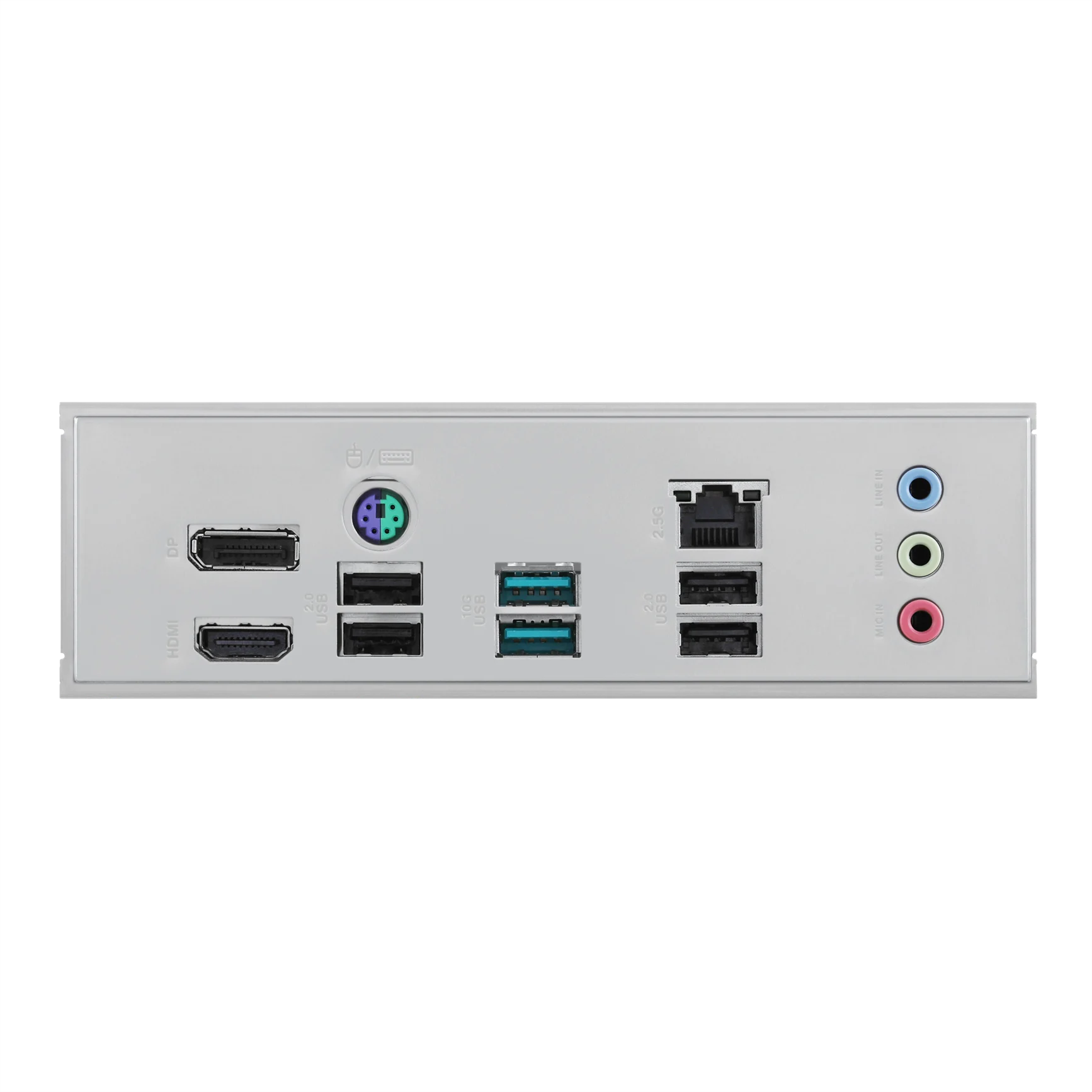

Graphics1 x DisplayPort;1 x HDMI™ port

Warranty36 Months

ConnectorsFan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 header support 5 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front panel audio header (F_AUDIO); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function;

// Compatibility

Motherboards · Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria
