EAN 4711387321515MODEL 90MB1GL0-M0ECY0
// Motherboards · ASUS

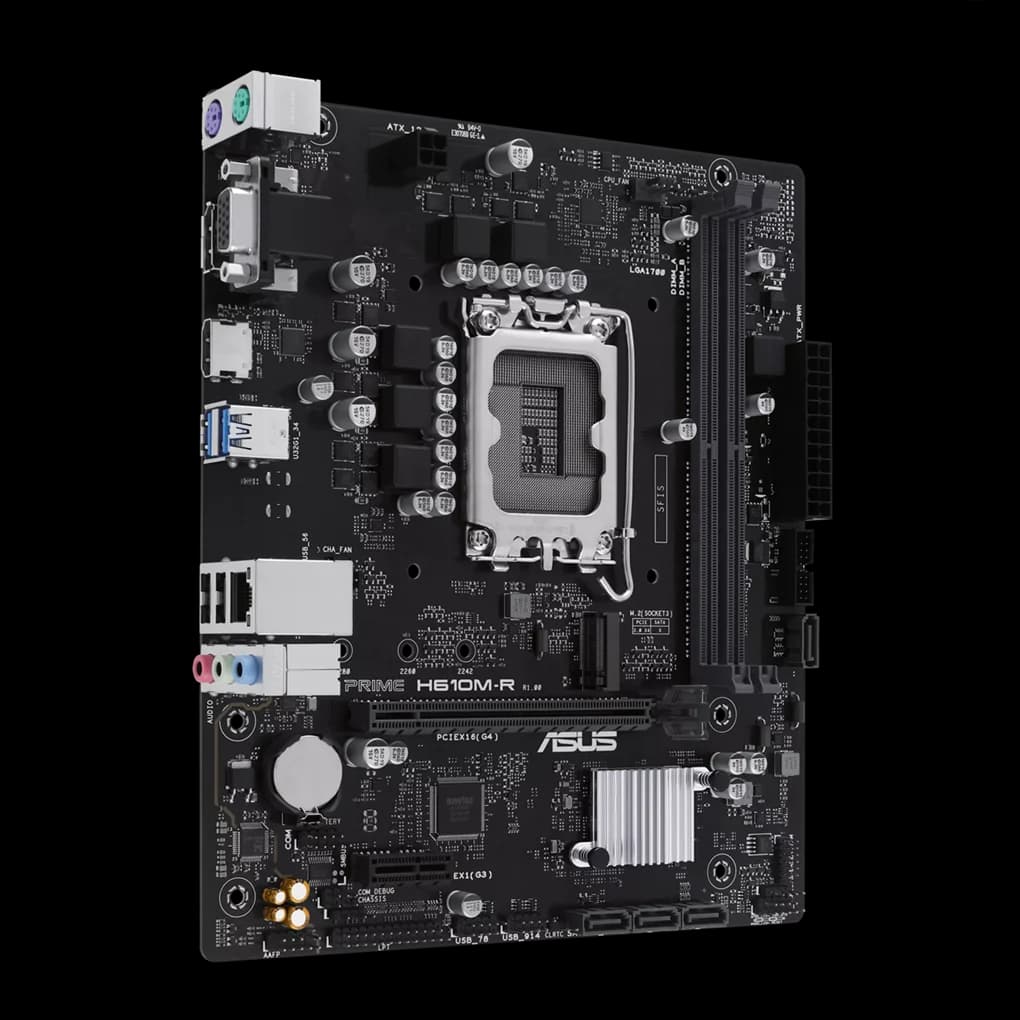

Asus Prime H610M-R-SI
LGA1700 /Intel 12th and 13th Gen
60,53 €
● In stockASUS H610 2xDDR5 4xSATA3 RAID HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
60,53 €
// Tech specs
ManufacturerASUS
ChipsetIntel® H610 Chipset
CPU supportIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports up…
Memory2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme…
StorageTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;Intel® H610 Chipset;M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);…
ExpansionIntel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot;Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
Form factormATX Form Factor, 22.6 cm x 19.5 cm
EAN4711387321515
Model90MB1GL0-M0ECY0
▸ Full specifications▾ Full specifications
OSWindows® 11 64-bit, Windows® 10 64-bit
Lan1 x Realtek 1Gb Ethernet
USBRear USB (Total 4 ports);2 x USB 3.2 Gen 1(5G) ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 6 ports);1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports
BIOS128 Mb Flash ROM, UEFI AMI BIOS
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
ChipsetIntel® H610 Chipset
StorageTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;Intel® H610 Chipset;M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);4 x SATA 6Gb/s ports

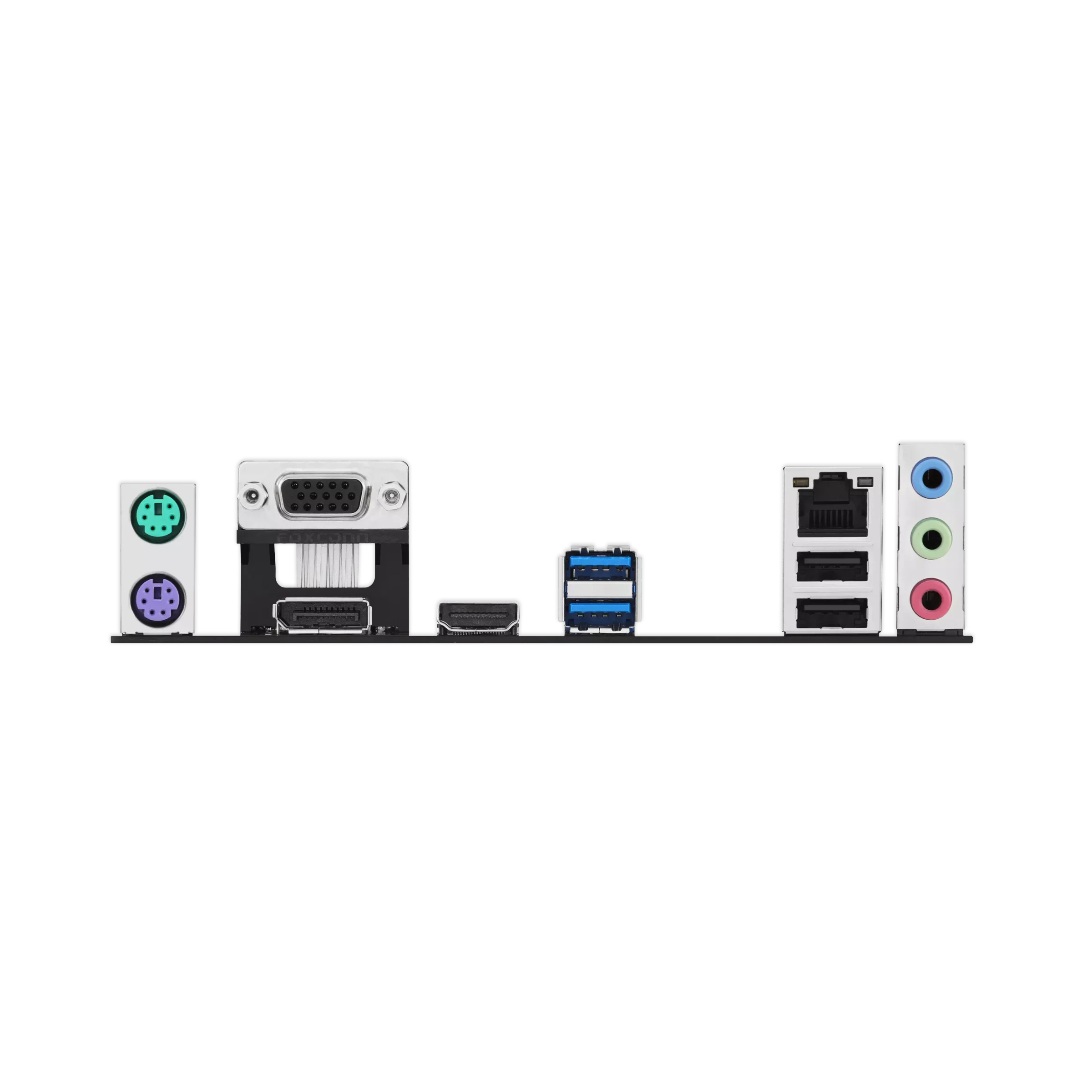

Graphics1 x DisplayPort;1 x VGA port;1 x HDMITM port
// Compatibility
Motherboards · Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports up to Intel® 65W CPU;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
// Delivery & warranty
- ✓Genuine part
- ✓3-year warranty
- ✓Delivery across Bulgaria
