OSWindows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Lan1 x Intel® 1Gb Ethernet port;ASUS LANGuard
USBRear USB (Total 6 ports);2 x USB 10Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 5Gbps connector (supports USB Type-C®)*;1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports
BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers
ChipsetIntel® H810 Chipset
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® H810 Chipset;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode);4 x SATA 6Gb/s ports
Graphics1 x DisplayPort;1 x HDMI™ port
Warranty36 Months
WirelessWi-Fi 6;1x1 Wi-Fi 6 (802.11ax);Supports 2.4/5GHz frequency band;Bluetooth® v5.3
Bluetooth5.3
ConnectorsFan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin Front Panel System header
Form factormicro-ATX Form Factor 24.4 cm x 22.2 cm
Memory type2 x DIMM slots, max. 128GB, DDR5;Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile II (AEMP II)
ManufacturerASUS

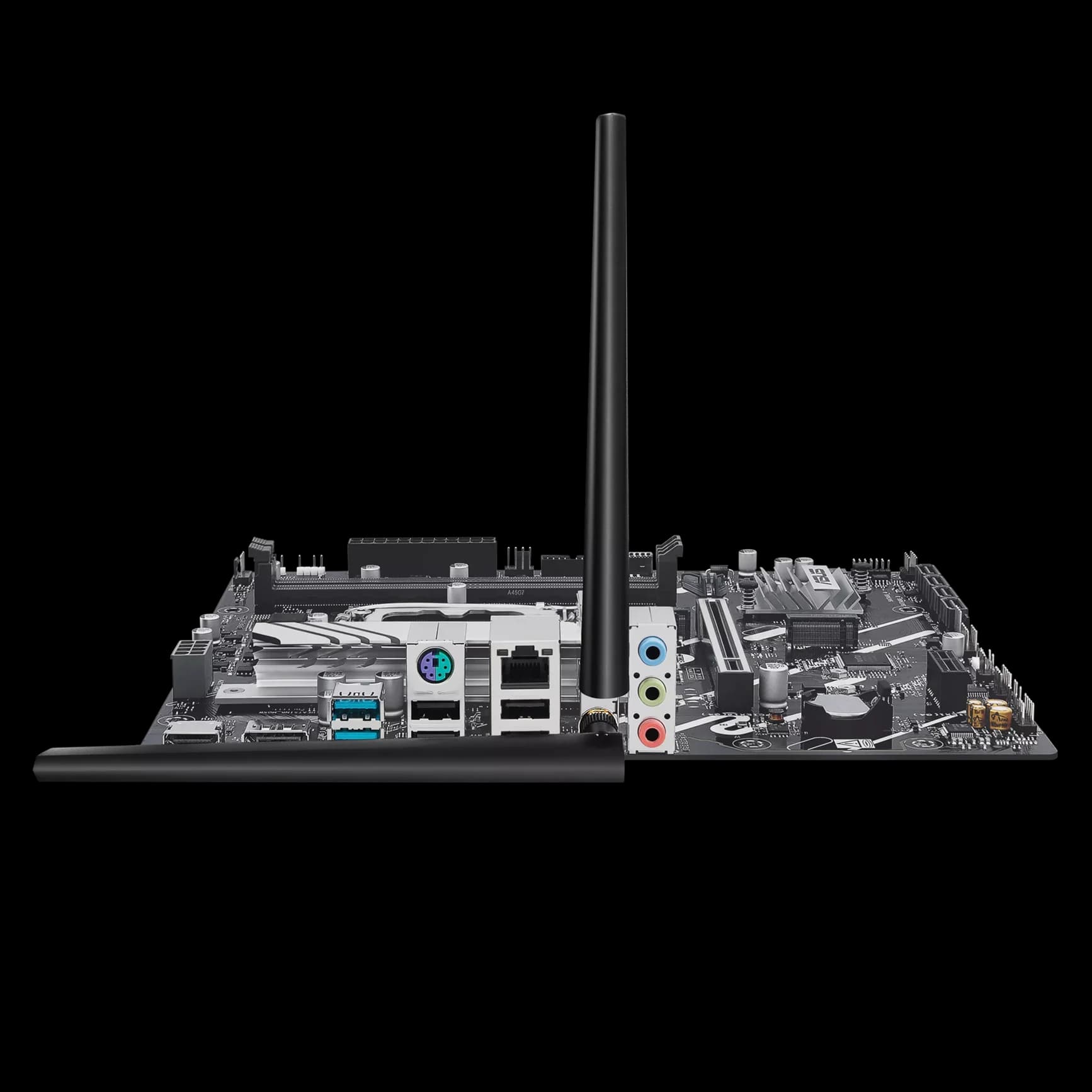

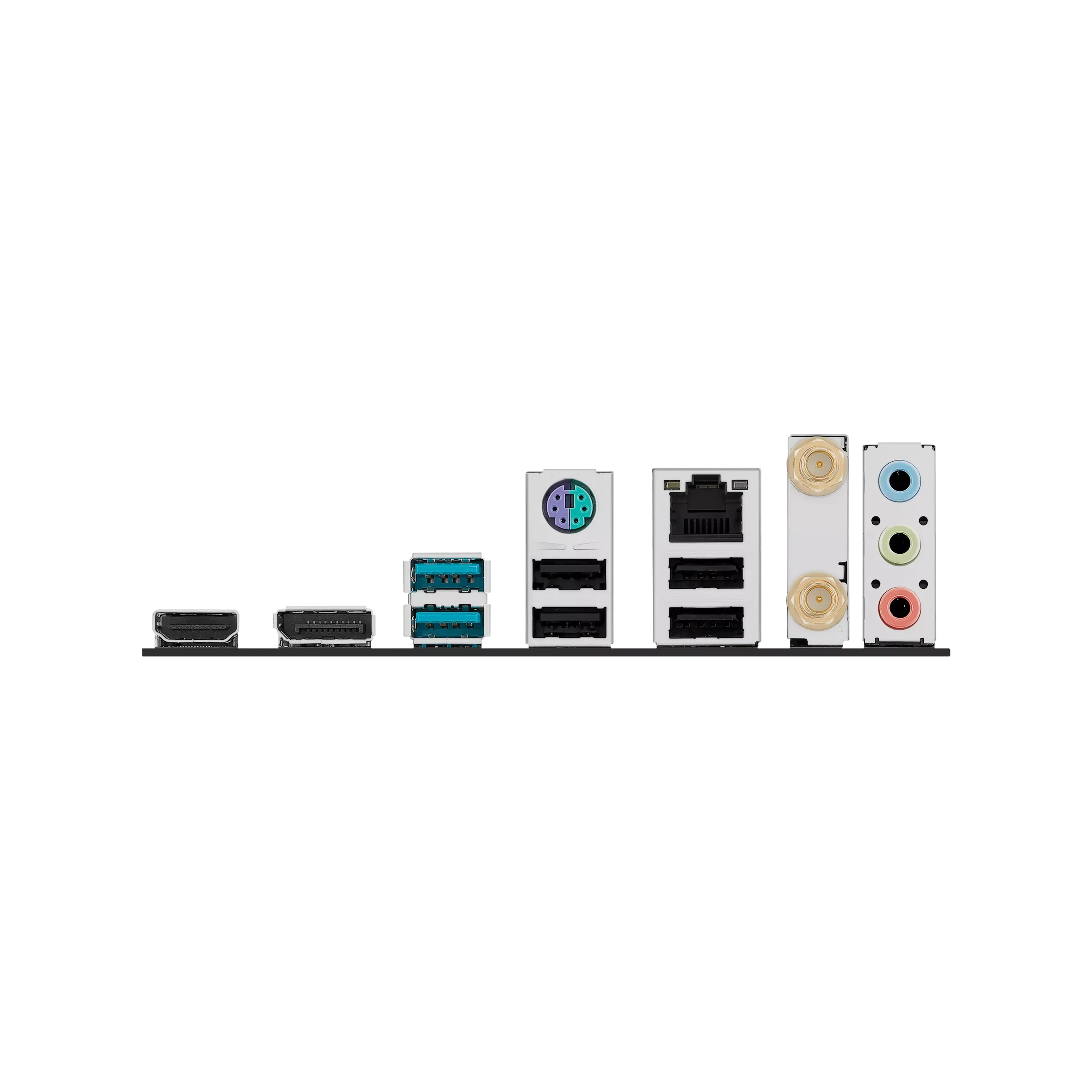

Rear panel I/O2 x USB 10Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 keyboard/mouse combo port
CPU's supportedSupport Intel® Core™ Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Expansion slotsIntel® Core™ Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® H810 Chipset;1 x PCIe 4.0 x1 slot
