Asus Prime Z890-P

LGA1851 /Intel Core Ultra 200

273,01 €

● In stock

273,01 €

// Tech specs

ManufacturerASUS

ChipsetIntel® Z890 Chipset

CPU supportSupports Intel® Core™ Ultra Processors (Series 2), LGA1851*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technolog…

Memory4 x DIMM slots, max. 192GB, DDR5;Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*;Dual channel memory a…

StorageTotal supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2)*;-M.2_1 slot (Key M), type 2280/22110 (supp…

ExpansionIntel® Core™ Ultra Processors (Series 2);-1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;-2 x PCIe 4.0 x16 slots (support x4 mode);-1 x PCIe 4.0…

Form factorATX Form Factor 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )

EAN4711387759103

Model90MB1I50-M0EAY0

▸ Full specifications

OSWindows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Lan1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

ChipsetIntel® Z890 Chipset

StorageTotal supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2)*;-M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;-M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);-4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Graphics1 x DisplayPort**;1 x HDMITM port***;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****;* Graphics specifications may vary between CPU types.;** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;*** Supports 4K@60Hz as specified in HDMI 2.1.;**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.;***** VGA resolution support depends on processors' or graphic cards' resolution.;****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

// Compatibility

Motherboards · Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

ConnectorsFan and Cooling related;-1 x 4-pin CPU Fan header;-1 x 4-pin CPU OPT Fan header;-1 x 4-pin AIO Pump header;-4 x 4-pin Chassis Fan headers;Power related;-1 x 24-pin Main Power connector;-2 x 8-pin +12V CPU Power connector;Storage related;-4 x M.2 slots (Key M);-4 x SATA 6Gb/s ports;USB;-1 x USB 10Gbps connector (supports USB Type-C®);-2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;-2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;-3 x Addressable Gen2 headers;-1 x Aura RGB header;-1 x Clear CMOS header;-1 x COM Port header;-1 x Front Panel Audio header (F_AUDIO);-1 x S/PDIF Out header;-1 x SPI TPM header (14-1pin);-1 x 10-1 pin Front PanelSystem header;-1 x Thunderbolt™ (USB4®) header

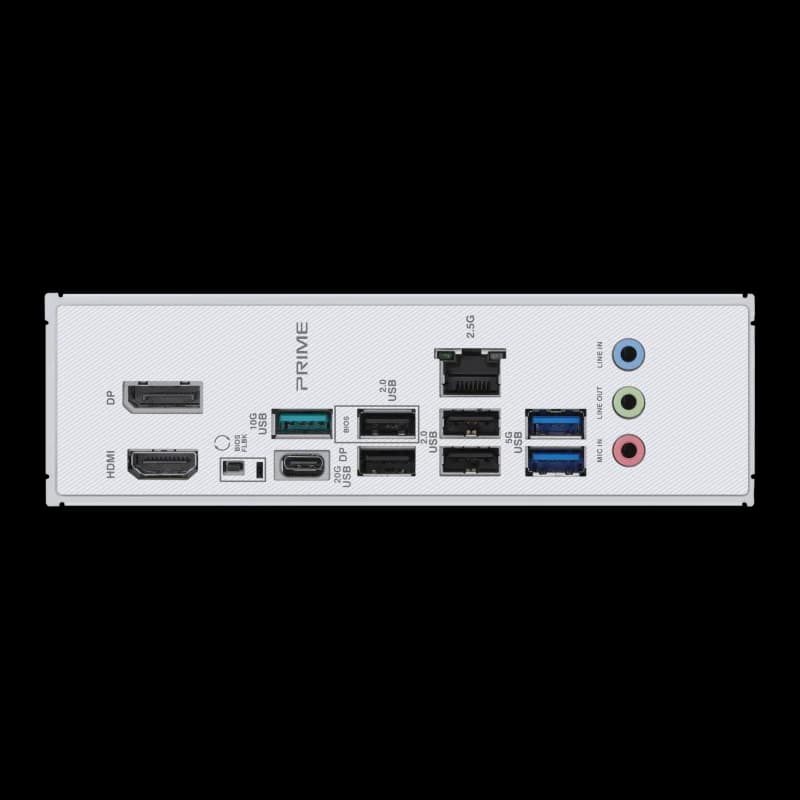

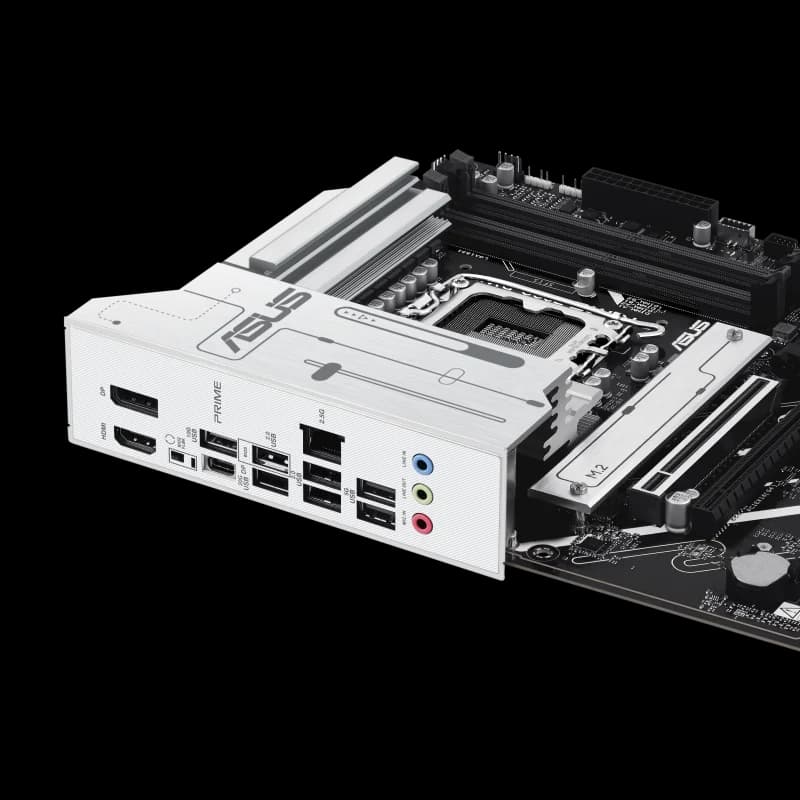

Rear panel I/O1 x DisplayPort;1 x HDMITM port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button;Rear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A)**;Front USB (Total 9 ports);1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports**;* USB Type-C® power delivery output: max. 5V/3A;** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.;** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
