OSWindows 11 (22H2 & later)
Lan1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
USBRear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1x USB 10Gbps port (1 x Type-A);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers
ChipsetIntel® Z890 Chipset
StorageTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors (Series 2);M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);Intel® Z890 Chipset;M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);6 x SATA 6Gb/s ports
Graphics1 x DisplayPort;1 x HDMI™ port;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
Warranty36 Months

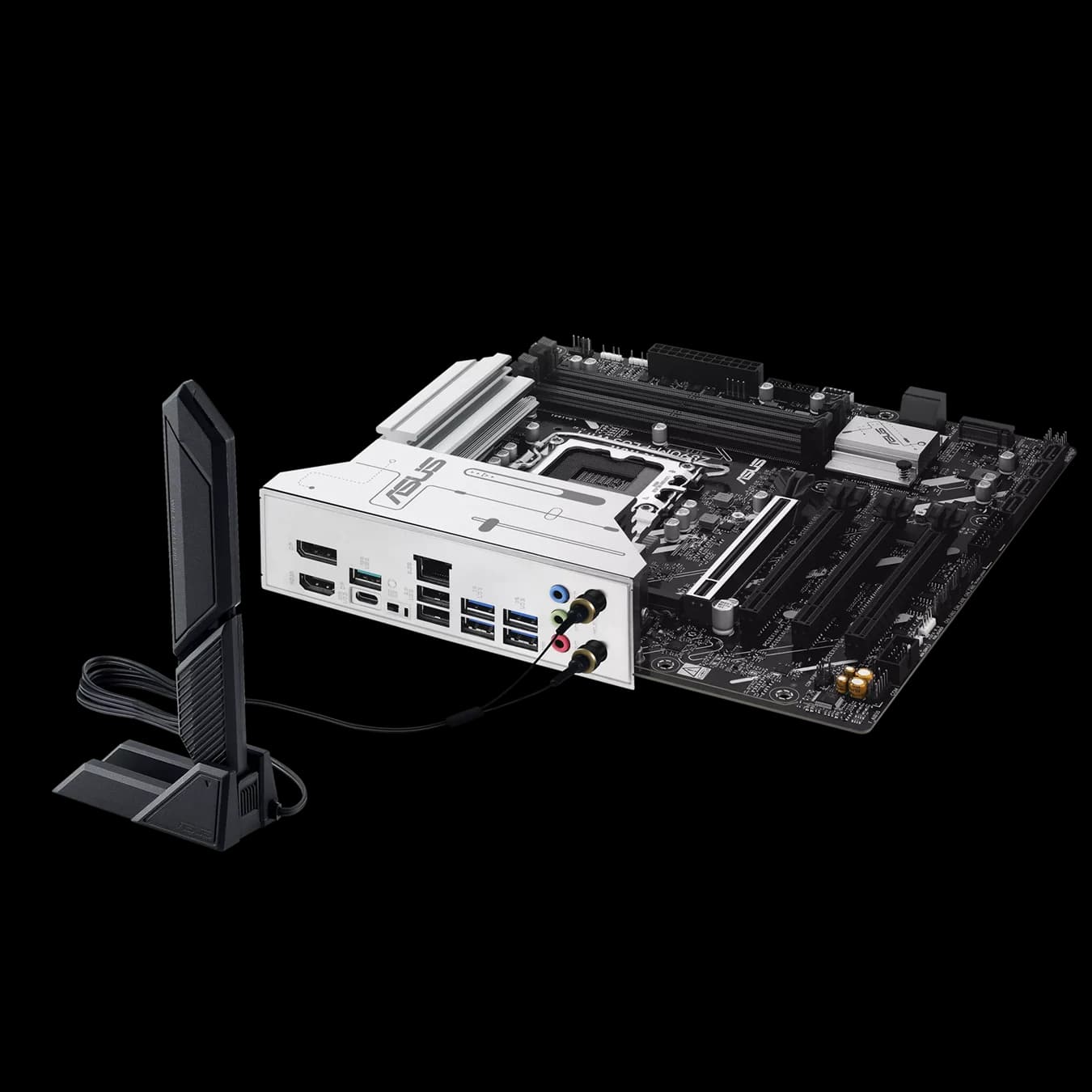

WirelessWi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.;Bluetooth® v5.4
Bluetooth5.4
ConnectorsFan and cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;1 x 4-pin +12V CPU Power connector;Storage related;3 x M.2 slots (Key M);6 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 10-1 pin Front Panel System header;1 x Thunderbolt™ (USB4®) header
Form factormATX Form Factor, 24.4 cm x 24.4 cm
Memory type4 x DIMM slots, max. 256GB, DDR5;Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP);ASUS Enhanced Memory Profile III(AEMPIII)
ManufacturerASUS

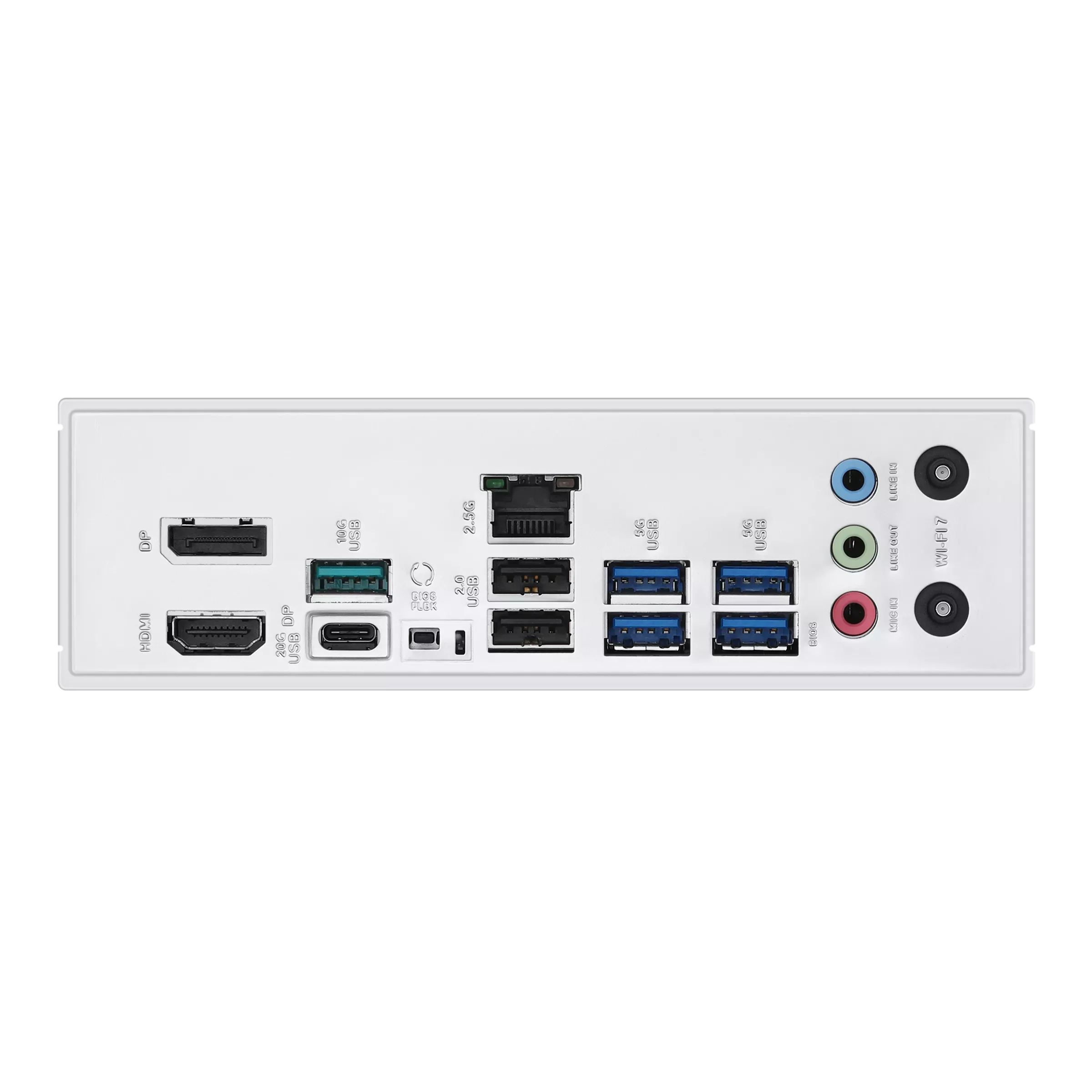

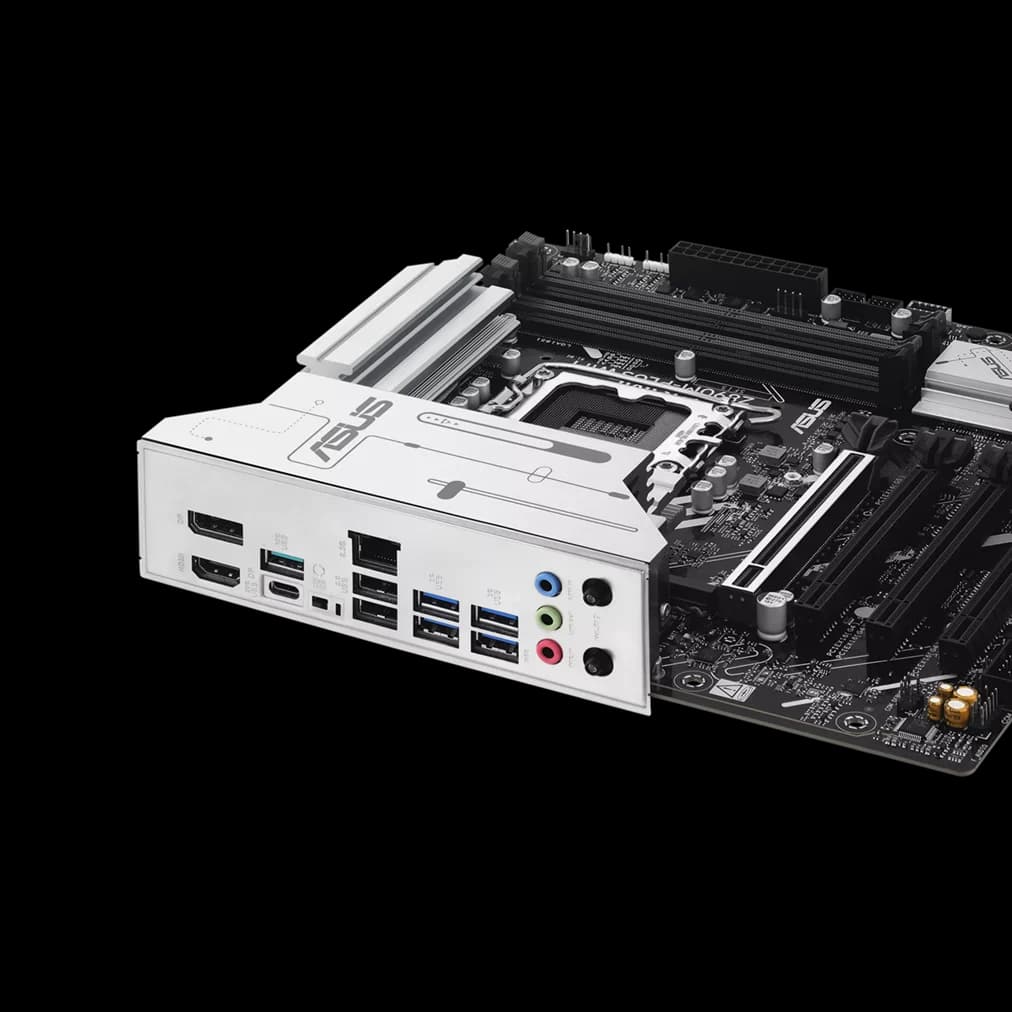

Rear panel I/O1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1x USB 10Gbps port (1 x Type-A);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet;3 x Audio jacks;1 x BIOS FlashBack™ button
CPU's supportedSupports Intel® Core™ Ultra Processors(Series 2), LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Expansion slotsIntel® Core™ Ultra Processors (Series 2);1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);2 x PCIe 4.0 x16 slots (support x1 mode)
