OSWindows 11 (22H2 & later)
Lan1 x Realtek 5Gb Ethernet;ASUS LANGuard
USBRear USB (Total 10 ports);2 x USB4® (40Gbps) ports (2 x USB Type-C®);6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A);Front USB (Total 10 ports);1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*;1 x USB 20Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;USB Type-C® power delivery output: max. 5V/3A;*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
BIOS2 x 256 Mb Flash ROM, UEFI AMI BIOS
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel";Audio Features ;- SupremeFX Shielding Technology;- Savitech SV3H712 AMP;- Gold-plated audio jacks;- Rear optical S/PDIF out port;- Premium audio capacitors;- Audio cover;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
ChipsetAMD X870E
StorageSupports 5 x M.2 slots and 4 x SATA 6Gb/s ports*;AMD Ryzen™ 9000 & 7000 Series Desktop Processors***;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (Not supports);M.2_3 slot (Key M), type 2242/2260/2280 (Not supports);AMD X870E Chipset;DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports;** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled. ;***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;R
Graphics2 x USB4® (40Gbps) ports support USB Type-C® display outputs*;Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.;VGA resolution support depends on processors' or graphic cards' resolution.;*Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Warranty36 Months
WirelessWi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927);2x2 Wi-Fi 7 (802.11be) ;Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 320MHz bandwidth;Bluetooth® v5.4
Bluetooth5.4
ConnectorsFan and Cooling Related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header;2 x 4-pin Chassis Fan headers;2 x 4-pin Full Speed Fan headers;1 x W_PUMP+ header;1 x Extra Flow Fan header;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connector;1 x 8-pin PCIe Power connectorStorage Related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB ;2 x USB 20Gbps connectors (support USB Type-C® ) ;2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;1 x 80 Light Bar jumper;3 x Addressable Gen2 headers;1 x Alteration PCIe mode switch;2 x BCLK button;1 x BIOS Switch button ;1 x FlexKey button ;1 x Front Panel Audio header (F_AUDIO);1 x LN2 Mode jumper ;1 x Pause switch;12 x ProbeIt Measurement Points;1 x ReTry button;2 x RSVD switches;1 x RSVD_4 header;1 x Safe Boot button;1 x Slow Mode switch ;1 x Start button;1 x 10-1 pin System Panel header;1 x Thermal Sensor header
Form factorATX Form Factor;30.5 cm x 24.4 cm
Memory type2 x DIMM slots, max. 128GB, DDR5 ;Supports up to;8200+MT/s(OC) with Ryzen™ 9000 Series Processors,;9600+MT/s(OC) with Ryzen™ 8000 Series Processors;8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;ECC and Non-ECC, Un-buffered Memory*;Dual channel memory architecture ;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP)
ManufacturerASUS

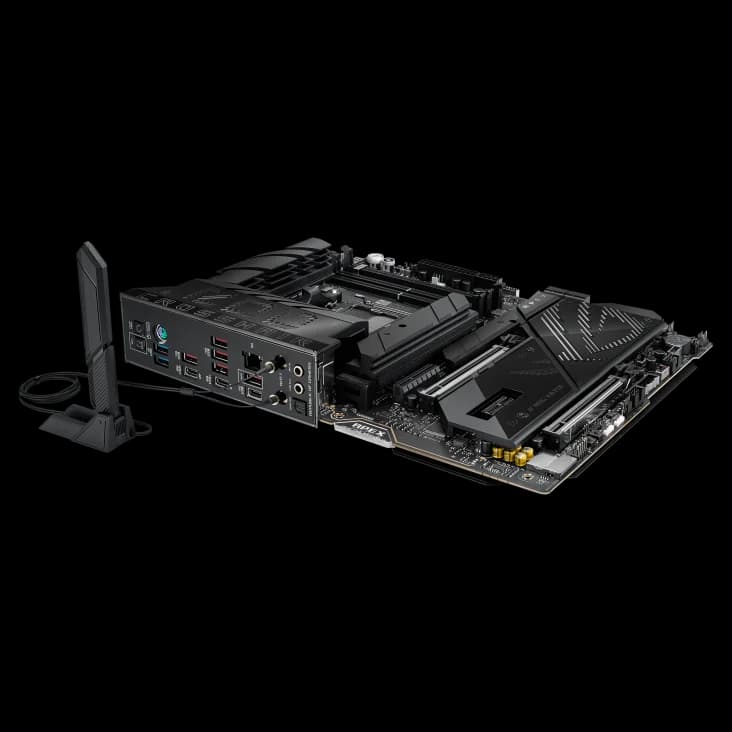

Rear panel I/O2 x USB4® (40Gbps) ports (2 x USB Type-C®);6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) ;2 x USB 5Gbps ports (2 x Type-A)1 x Wi-Fi module;1 x Realtek 5Gb Ethernet port;1 x PS/2 keyboard/mouse combo port ;2 x Gold-plated audio jacks1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button ;1 x Clear CMOS button
CPU's supportedAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Expansion slotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors*;2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***);** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. ;***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.;**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.;AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*;2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled);AMD Ryzen™ 8500 & 8300 Series Desktop Processors*;2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled);AMD X870E Chipset1 x PCIe 4.0 x4 slot;1 x PCIe 3.0 x1 slot
