OSWindows® 11
Lan1 x Realtek 5Gb Ethernet; 1 x Marvell® AQtion 10Gb Ethernet; ASUS LANGuard
USBRear USB (Total 12 ports); 2 x USB4® (40Gbps) ports (2 x USB Type-C®); 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®); Front USB (Total 10 ports); 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*; 1 x USB 10Gbps connector (supports USB Type-C®); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; USB Type-C® power delivery output: max. 5V/3A; *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
BIOS2 x 256 Mb Flash ROM, UEFI AMI BIOS
RAIDAMD RAIDXpert2 Technology; Ryzen™ 9000 Series Processors: RAID 0/1/5/10; Ryzen™ 8000 Series Processors: RAID 0/1; Ryzen™ 7000 Series Processors: RAID 0/1/10
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback on front panel; Audio Features; - SupremeFX Shielding Technology; - ESS® ES9219 QUAD DAC; - LED-illuminated audio jacks; - Rear optical S/PDIF out port; - Premium audio capacitors; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.; ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
SocketSocket AM5
ChipsetAMD X870E
StorageSupports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (Not supports); M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports); AMD X870E Chipset; DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately; 4 x SATA 6Gb/s ports
Graphics1 x HDMITM port; 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
WirelessWi-Fi 7*; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band**; Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.; Bluetooth® v5.4***; *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
ConnectorsFan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; 2 x 4-pin Radiator Fan headers; 2 x W_PUMP+ headers; 1 x VRM Heatsink Fan header; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; 1 x 8-pin PCIe Power connector; Storage related; 3 x M.2 slots (Key M); 1 x DIMM.2 slot supports 2 x M.2 slots (KeyM); 1 x SlimSAS connector; 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C®); 1 x USB 10Gbps connector (supports USBType-C®); 2 x USB 5Gbps headers support 4 additional; USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional; USB 2.0 ports; Miscellaneous; 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers; 2 x Addressable Gen 2 header; 1 x Alteration PCIe mode switch; 2 x BCLK button; 1 x BIOS Switch; 1 x FlexKey button; 1 x Front Panel Audio header (F_AUDIO); 1 x LN2 Mode jumper; 12 x ProbeIt Measurement Points; 1 x ReTry button; 2 x RSVD switchs; 1 x RSVD header; 1 x Safe Boot button; 1 x Slow Mode switch; 1 x Start button; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header; 1 x Pause switch
Form factorE-ATX Form Factor; 30.5 cm x 27.7 cm
Memory type4 x DIMM slots, max. 256GB, DDR5; Supports up to; 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,; 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,; ECC and Non-ECC, Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP); NitroPath DRAM Technology;
ManufacturerAsus

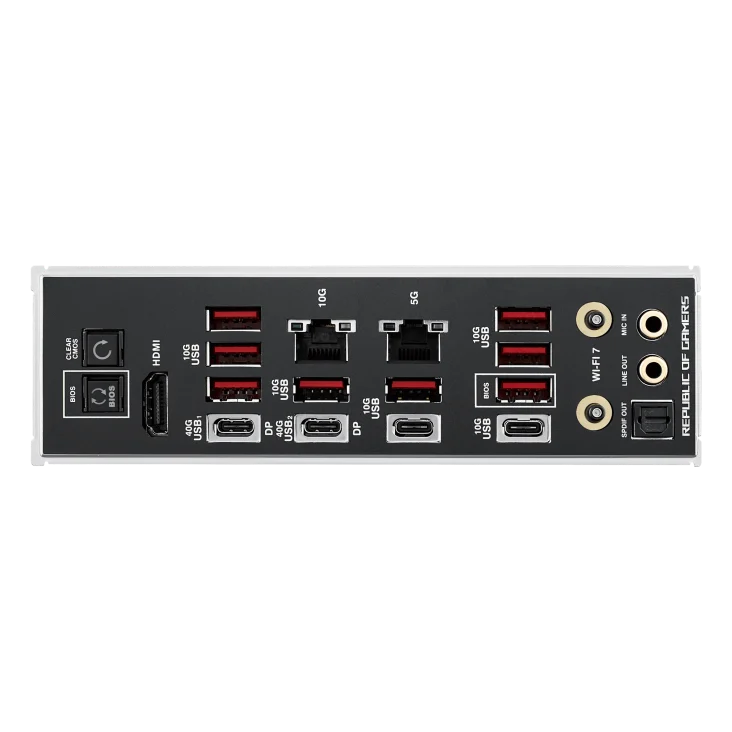

Rear panel I/O2 x USB4® (40Gbps) ports (2 x USB Type-C®); 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®); 1 x HDMITM port; 1 x Wi-Fi Module; 1 x Realtek 5Gb Ethernet port; 1 x Marvell® AQtion 10Gb Ethernet port; 2 x LED-illuminated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button; 1 x Clear CMOS button
CPU's supportedAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Expansion slotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors; 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes); AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors; 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled); AMD Ryzen™ 8500 & 8300 Series Desktop Processors; 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
