OSWindows 11 (22H2 later)
Lan1 x Intel® 2.5Gb Ethernet; ASUS LANGuard
USBRear USB (Total 10 ports); 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*; 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)**; 2 x USB 5Gbps ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps connector (supports USB Type-C® )*; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A; ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
BIOS256 Mb UEFI AMI BIOS
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback on front panel; Audio Features; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.; ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

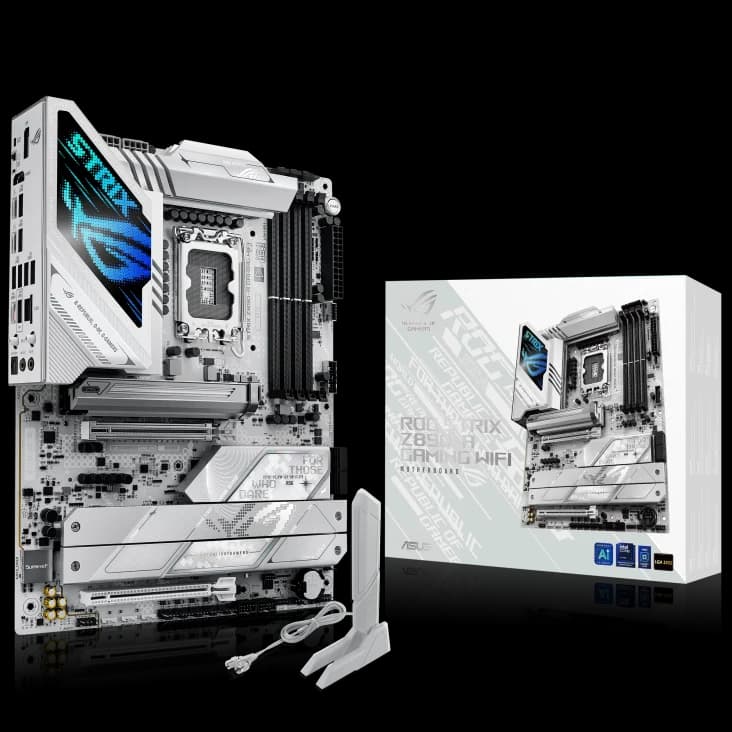

ModelROG STRIX Z890-A GAMING WIFI
ChipsetIntel® Z890 Chipset
StorageTotal Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors (Series 2)*; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); Intel® Z890 Chipset; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Graphics1 x DisplayPort; 1 x HDMI™ port; 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs; - Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

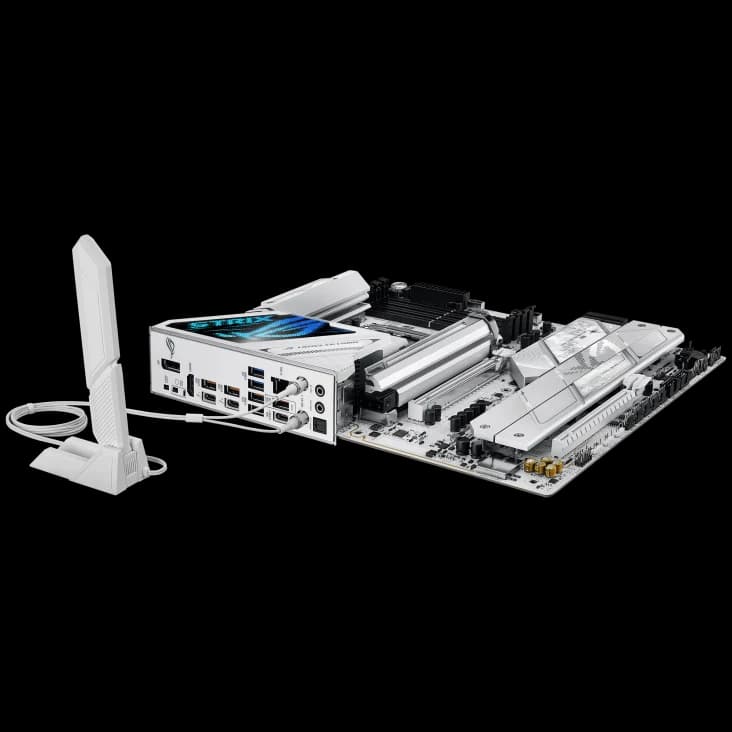

WirelessWi-Fi 7*; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band**; Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.; Bluetooth® v5.4***; *Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.; For Windows 10, only Wi-Fi 6 is supported.; ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
ConnectorsFan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 5 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Chassis Intrusion header; 1 x CPU Over voltage jumper; 1 x Front Panel Audio header (F_AUDIO); 1 x Start button; 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4®) header
Dimensions30.5 cm x 24.4 cm
Form factorATX Form Factor
Memory type4 x DIMM slots, max. 256GB, DDR5; Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; Supports DIMM FIT; ASUS Enhanced Memory Profile III (AEMPIII)
ManufacturerAsus

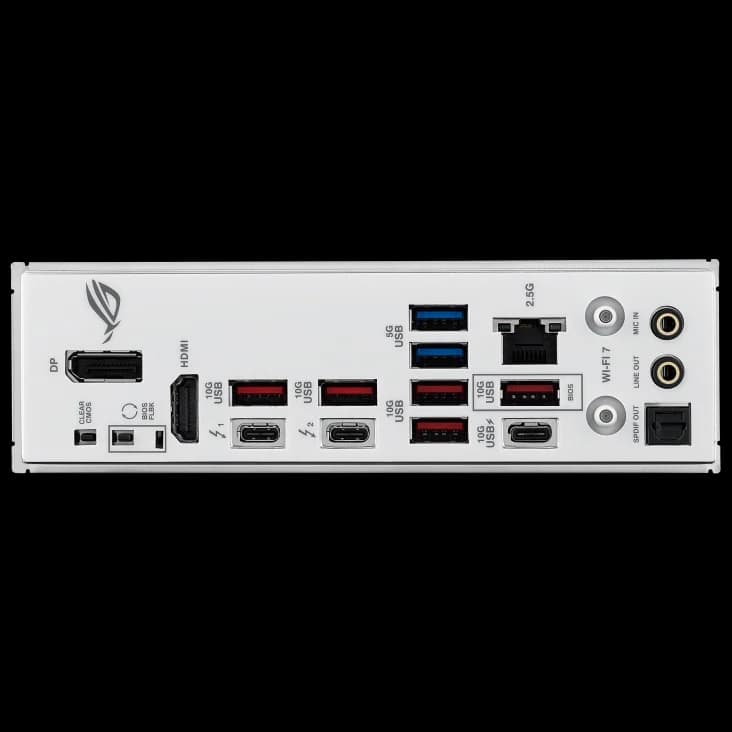

Rear panel I/O2 x Thunderbolt™ 4 ports (2 x USB Type-C®); 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge); 2 x USB 5Gbps ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Intel® 2.5Gb Ethernet port; 2 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button; 1 x Clear CMOS button
CPU's supportedSupport Intel® Core™ Ultra Processors (Series 2); Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Expansion slotsIntel® Core™ Ultra Processors (Series 2); 1 x PCIe 5.0 x16 slot; Intel® Z890 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode)
