OSWindows® 11 (22H2 & later)
Lan1 x Intel® 2.5Gb Ethernet;ASUS LANGuard
USBRear USB (Total 14 ports);2 x Thunderbolt™ 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports;Front USB (Total 9 ports);1 x USB 20Gbps connector (1 x USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
BIOS256 Mb Flash ROM, UEFI AMI BIOS
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features;- SupremeFX Shielding Technology;- Savitech SV3H712 AMP ;- Gold-plated audio jacks- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover
ChipsetIntel® Z890 Chipset
StorageSupports 5 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors(Series 2);M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5
Graphics1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
Warranty36 Months
WirelessWi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4
Bluetooth5.4
ConnectorsFan and Cooling related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;5 x M.2 slots (Key M) ;4 x SATA 6Gb/s ports;USB ;1 x USB 20Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support additional 4 USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Chassis Intrusion header;1 x CPU Over voltage jumper;1 x Front Panel Audio header (F_AUDIO);1 x Start button;1 x 10-1 pin Front System Panel header;1 x Thermal Sensor header;1 x Thunderbolt™ (USB4®) header
Form factorATX Form Factor;30.5 cm x 24.4 cm
Memory type4 x DIMM slots, max. 256GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture ;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM FlexDIMM Fit;ASUS Enhanced Memory Profile III (AEMP III)
ManufacturerASUS

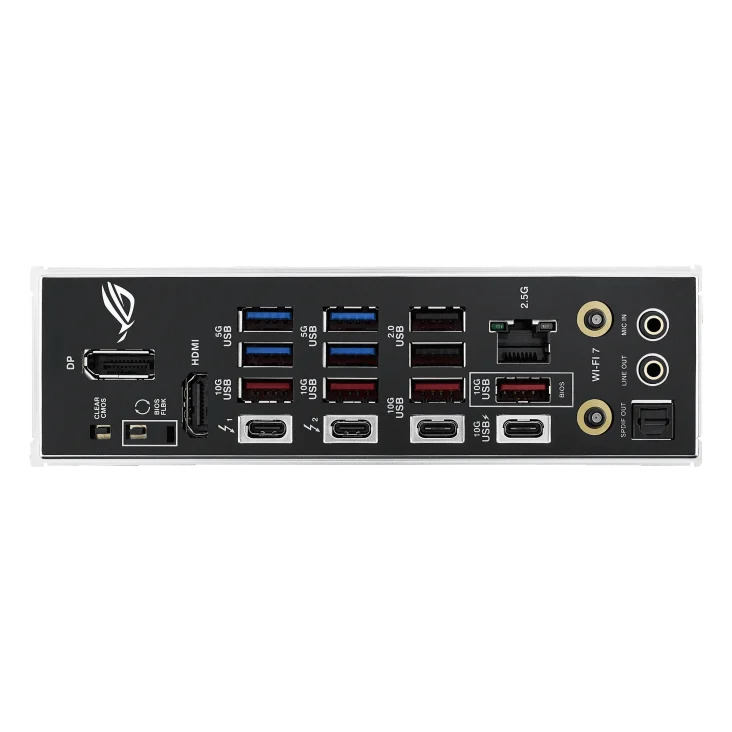

Rear panel I/O2 x Thunderbolt™ 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;2 x Gold-plated audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button ;1 x Clear CMOS button
CPU's supportedIntel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2);Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Expansion slotsIntel® Core™ Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
