OSWindows 11
Lan1 x Realtek 2.5Gb Ethernet;TUF LANGuard
USBRear USB (Total 12 ports);1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 6 ports);1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 3 additional USB 2.0 ports
BIOS256 Mb Flash ROM, UEFI AMI BIOS
AudioRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit
ChipsetAMD B850 Chipset
StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);AMD B850 Chipset;M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10
Graphics1 x DisplayPort;1 x HDMI™ port
Warranty36 Months
WirelessWi-Fi 7 (MediaTek MT7925);2x2 Wi-Fi 7* (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth;Bluetooth® v5.4
Bluetooth5.4
ConnectorsFan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 3 additional USB 2.0 ports;Miscellaneous;3 x Addressable RGB Gen 2 headers;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front Panel System header
Form factormicro-ATX Form Factor 24.4 cm x 24.4 cm
Memory type4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP)
ManufacturerASUS

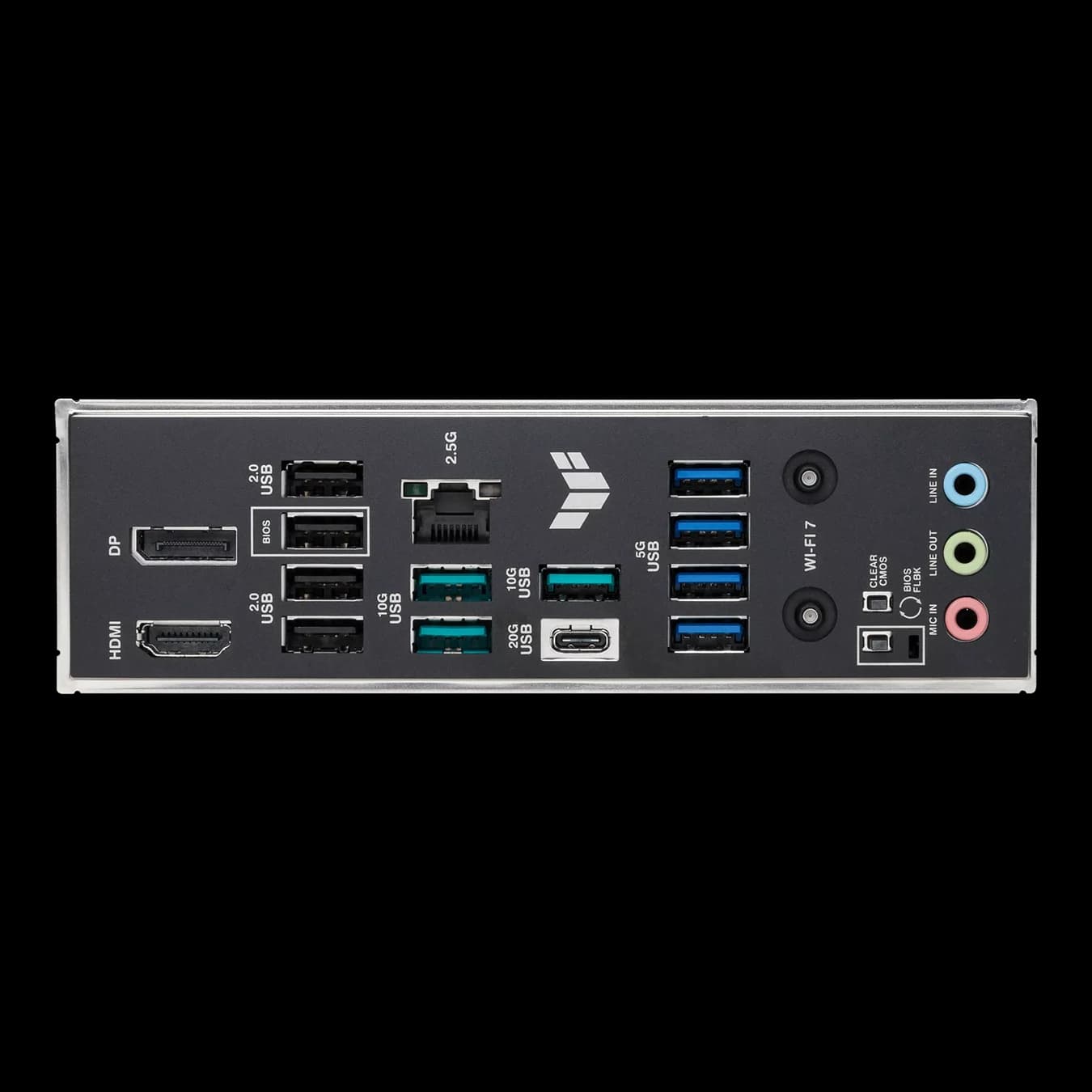

Rear panel I/O1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button;1 x Clear CMOS button
CPU's supportedAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Expansion slotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B850 Chipset;1 x PCIe 4.0 x1 slot
