OSWindows 11 (22H2 & later)
Lan1 x Realtek 2.5Gb Ethernet;TUF LANGuard
USBRear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C®);2 x USB 10Gbps port (2 x Type-A);4 x USB 5Gbps ports (4 x Type-A);1 x USB 2.0 ports (1x Type-A);Front USB (Total 5 ports);1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 headers support 2 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A
BIOS2 x 128 Mb Flash ROM, UEFI AMI BIOS
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers
ChipsetIntel® B860 Chipset
StorageSupports 3 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors(Series 2);M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);Intel® B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports
Graphics1 x DisplayPort;1 x HDMI™ port;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
Warranty36 Months
WirelessWi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
BluetoothBluetooth® v5.4
ConnectorsI/O Connectors Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;2 x 8-pin +12V Power connectors;Storage related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x Front panel audio header (F_AUDIO);1 x 10-1 pin Front System Panel header;1 x Thunderbolt™ (USB4®) header
Form factormATX, 24.4 cm x 24.4 cm
Memory type4 x DIMM slots, max. 256GB, DDR5;Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII)
ManufacturerASUS

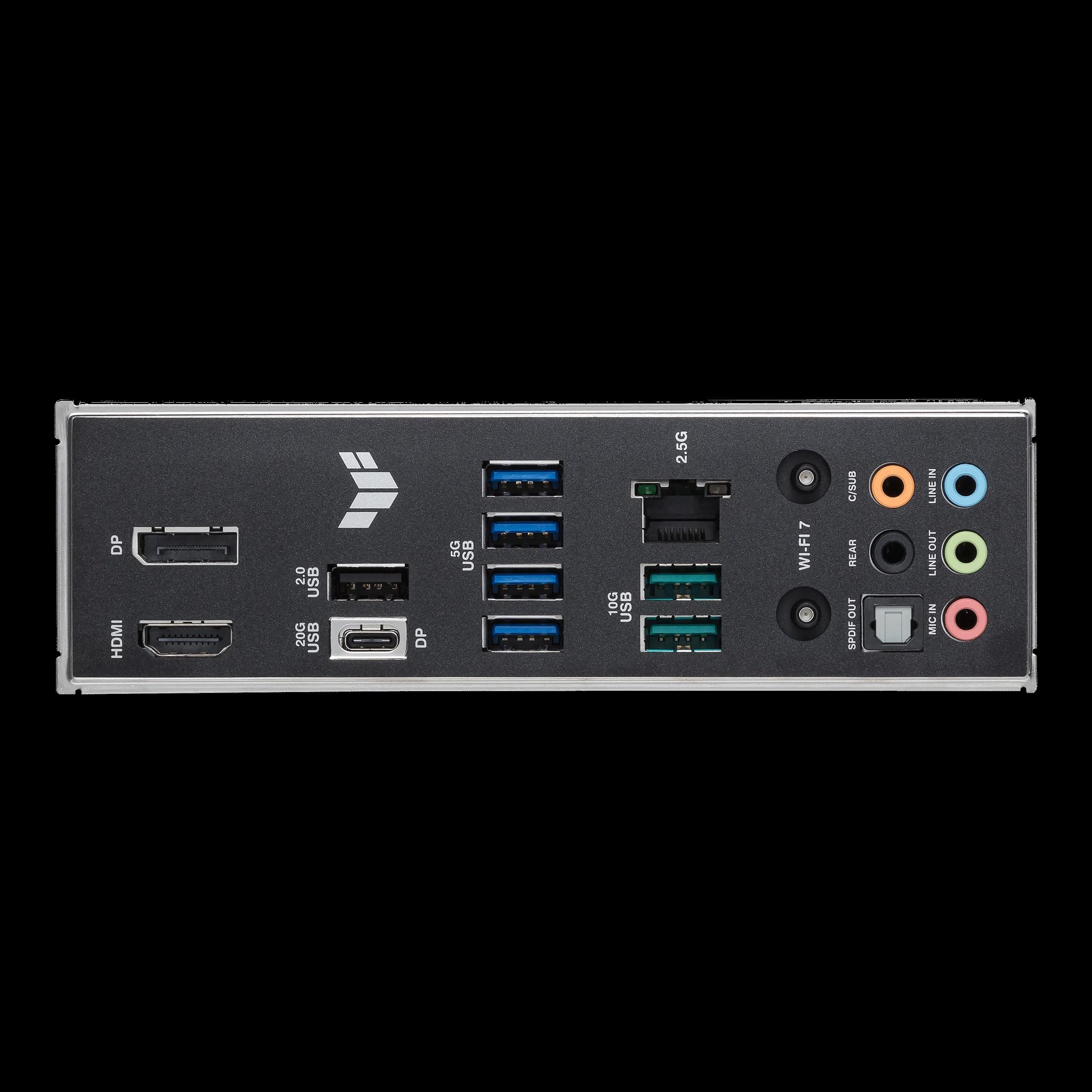

Rear panel I/O1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);2 x USB 10Gbps port (2 x Type-A);4 x USB 5Gbps ports (4 x Type-A);1 x USB 2.0 port (1 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi Module;1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port
CPU's supportedSupport Intel® Core™ Ultra Processors (Series 2) ,LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Expansion slotsIntel® CoreTM Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot;Intel® B860 Chipset;1 x PCIe 4.0 x4 slot
