EAN 4711387987544MODEL 90MB1L20-M0EAY0
// Motherboards · ASUS

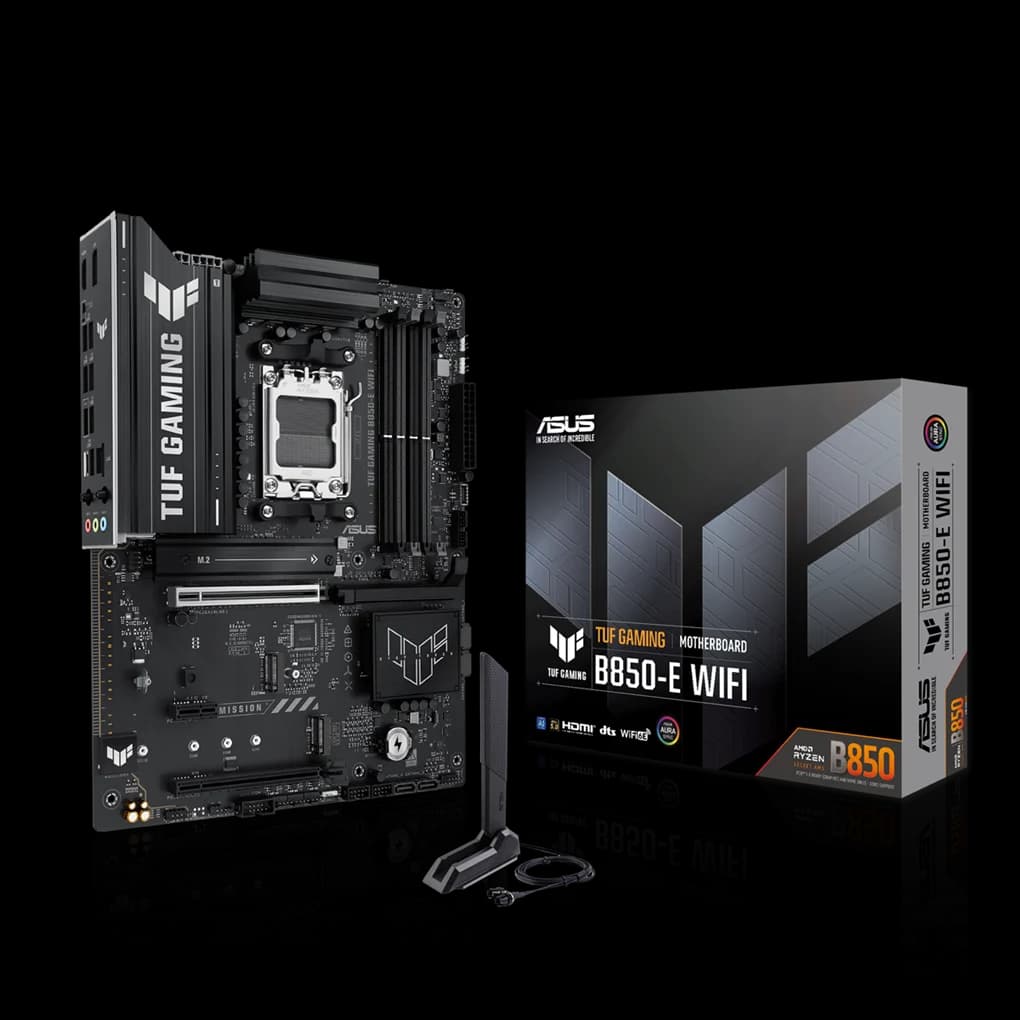

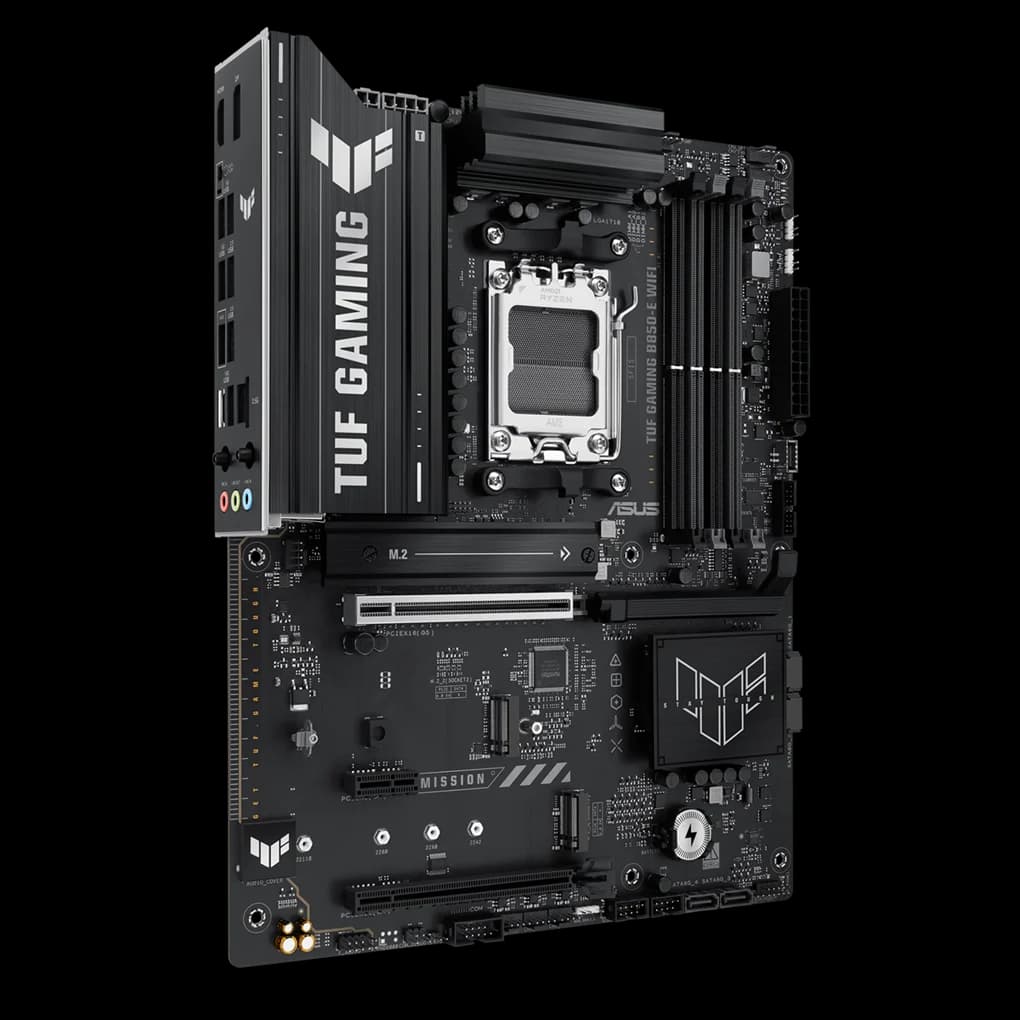

Asus TUF Gaming B850-E WiFi
AMD AM5
265,55 €
● In stock265,55 €
// Tech specs
ManufacturerASUS
ChipsetAMD B850 Chipset
CPU supportAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Memory4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered…
StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (suppo…
ExpansionAMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PC…
Form factorATX Form Factor;30.5 cm x 24.4 cm
EAN4711387987544
Model90MB1L20-M0EAY0
▸ Full specifications▾ Full specifications
OSWindows 11, Windows 10 64-bit
Lan1 x Realtek 2.5Gb Ethernet;TUF LANGuard

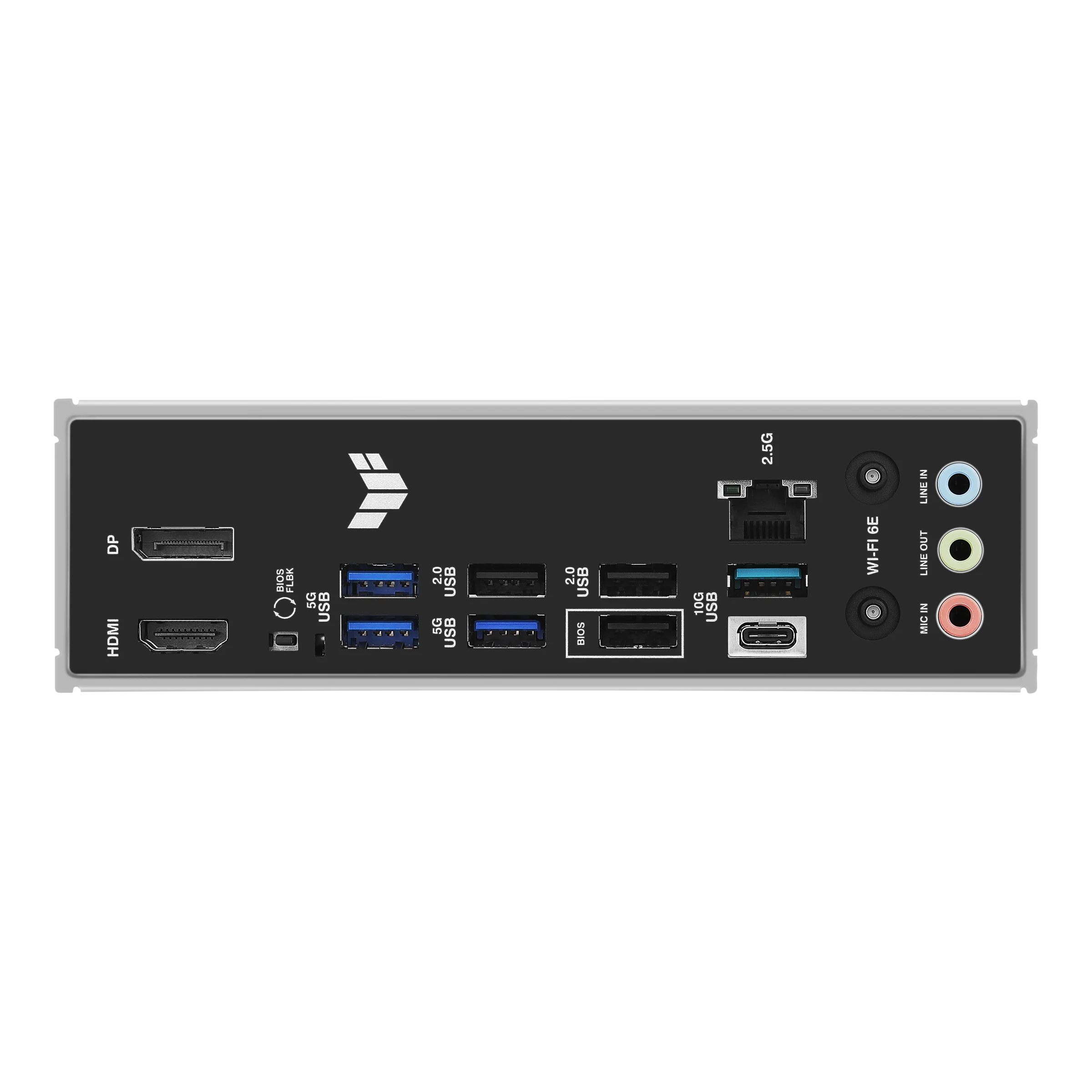

USBRear USB (Total 8 ports);2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®);3 x USB 5Gbps ports (3 x Type-A);3 x USB 2.0 ports (3 x Type-A);Front USB (Total 7 ports);1 x USB 20Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A.
BIOS256 Mb Flash ROM, UEFI AMI BIOS
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
ChipsetAMD B850 Chipset
StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*;AMD B850 Chipset;M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports;* Specifications vary by CPU types.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10
// Compatibility
Motherboards · AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
// Delivery & warranty
- ✓Genuine part
- ✓Delivery across Bulgaria
