OSWindows 11 (22H2 & later)
Lan1 x Intel® 2.5Gb Ethernet TUF LANGuard
BIOS256 Mb Flash ROM, UEFI AMI BIOS
AudioRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback*;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit;* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
ChipsetIntel® Z890 Chipset
StorageTotal Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors(Series 2)*;-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;-M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Graphics1 x DisplayPort**;1 x HDMI™ port***;1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output******;* Graphics specifications may vary between CPU types;** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;*** Supports 4K@60Hz as specified in HDMI 2.1;****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.;***** In DP alt mode, supports up to UHBR20.;****** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;******* VGA resolution support depends on processors' or graphic cards' resolution.;********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Warranty36 Months
WirelessWi-Fi 7* 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band**;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.;Bluetooth® v5.4***;*Wi-Fi features may vary depending on the operating system;For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.;For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.;** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.;*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth5.4
ConnectorsFan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connector;Storage Related;4 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 20Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front System Panel header;1 x Thunderbolt™ (USB4®) header
Form factorATX Form Factor 30.5 cm x 24.4 cm
Memory type4 x DIMM slots, max. 192GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*;Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII);* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration;** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
ManufacturerASUS

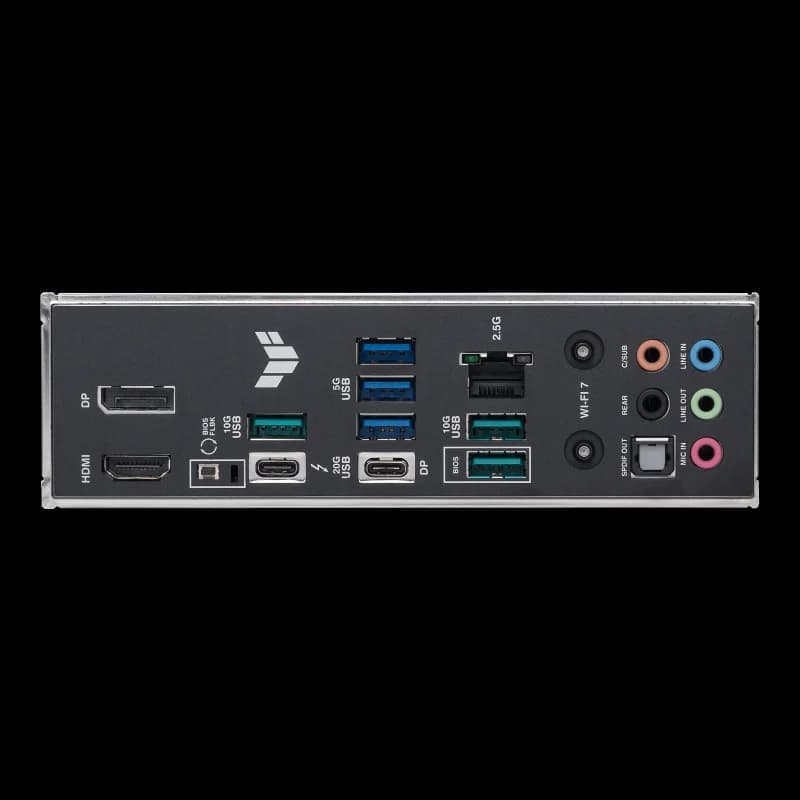

Rear panel I/O1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button;Rear USB (Total 8 ports)1 x Thunderbolt™ 4 port (1 x USB Type-C®);1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);3 x USB 5Gbps ports (3 x Type-A);Front USB (Total 7 ports);1 x USB 20Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;USB Type-C® power delivery output: max. 5V/3A
CPU's supportedSupport Intel® Core™ Ultra Processors (Series 2), LGA1851*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Expansion slotsIntel® Core™ Ultra Processors(Series 2)*;-1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x4 slot;-2 x PCIe 4.0 x1 slots
