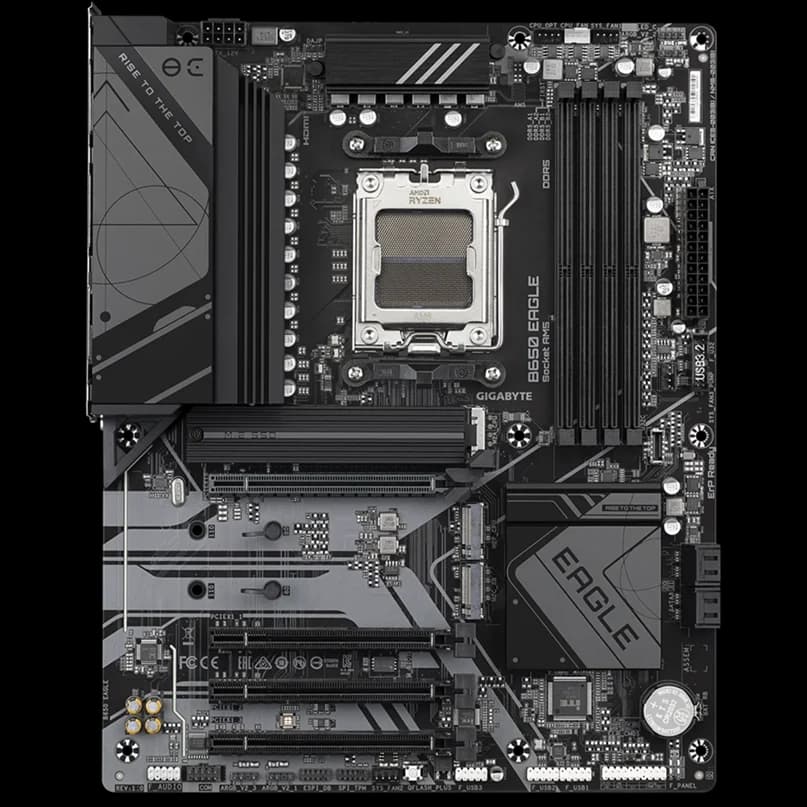

GB B650 Eagle /AM5

AMD AM5

131,42 €

● In stock

GB B650 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16

131,42 €

// Tech specs

ManufacturerGIGABYTE

ChipsetAMD B650

CPU supportAMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

MemorySupport for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory mod…

Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs;AMD Ryzen™ 7000 Series Proc…

Expansion1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode;AMD Ryzen™ 8000 Serie…

Form factorATX Form Factor; 30.5cm x 24.4cm

EAN4719331863081

ModelB650 EAGLE 1.2

▸ Full specifications

OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit

LanRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

ChipsetAMD B650

Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs;AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs;AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support);4 x SATA 6Gb/s connectors;RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, and RAID 10 support for SATA storage devices

GraphicsIntegrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version;1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3;** Support for native HDMI 2.1 TMDS compatible ports

// Compatibility

Motherboards · AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

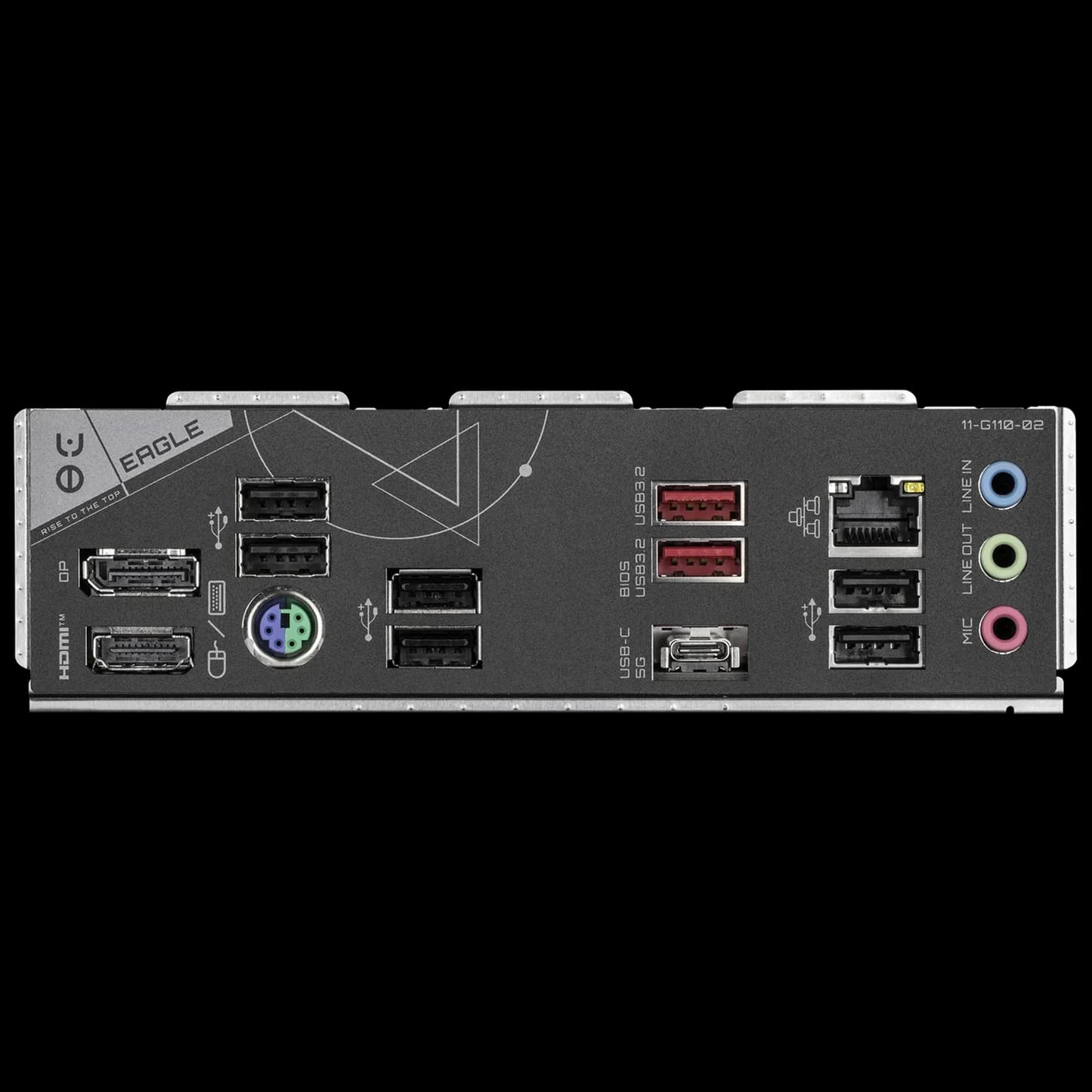

Connectors1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;2 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;3 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;3 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x Q-Flash Plus button;1 x serial port header j;1 x Clear CMOS jumper;1 x DisplayPort;1 x HDMI port;1 x PS/2 keyboard/mouse port;2 x SMA antenna connectors (2T2R);1 x USB Type-C® port, with USB 3.2 Gen 1 support;2 x USB 3.2 Gen 2 Type-A ports (red);6 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks

Expansion slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot;2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1;* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used;1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
