OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit
LanRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USBChipset:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 4 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;Support for S/PDIF Out
ChipsetIntel® B760 Express Chipset
StorageCPU:;- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports.;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3
Warranty36 Months
WirelessIntel® Wi-Fi 6E AX210;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
Bluetooth5.3

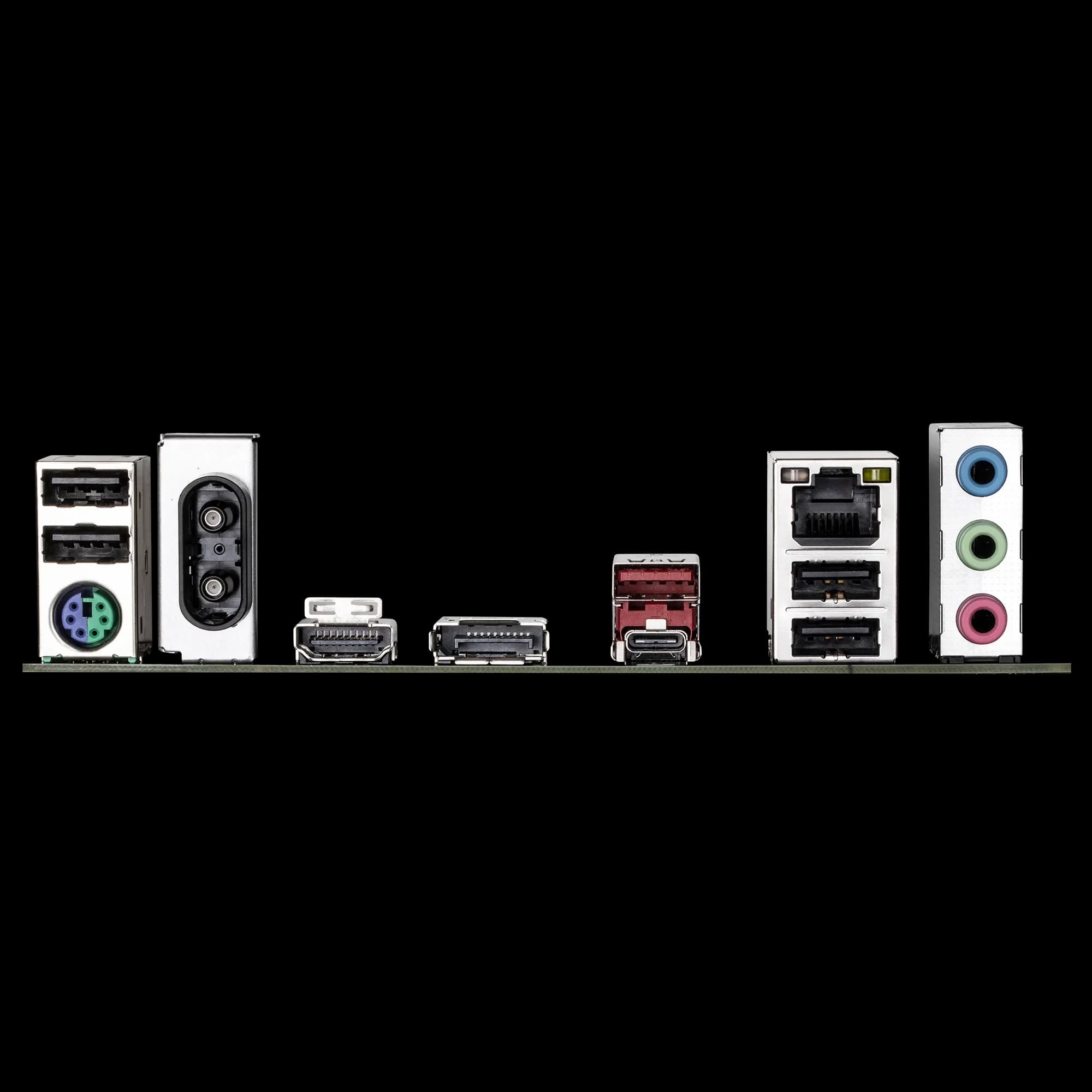

Connectors1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x S/PDIF Out header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Q-Flash Plus button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x PS/2 keyboard/mouse port;2 x antenna connectors (2T2R);1 x USB Type-C® port, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 2 Type-A port (red);4 x USB 2.0/1.1 ports;1 x HDMI port (Note);1 x DisplayPort (Note);1 x RJ-45 port;3 x audio jacks

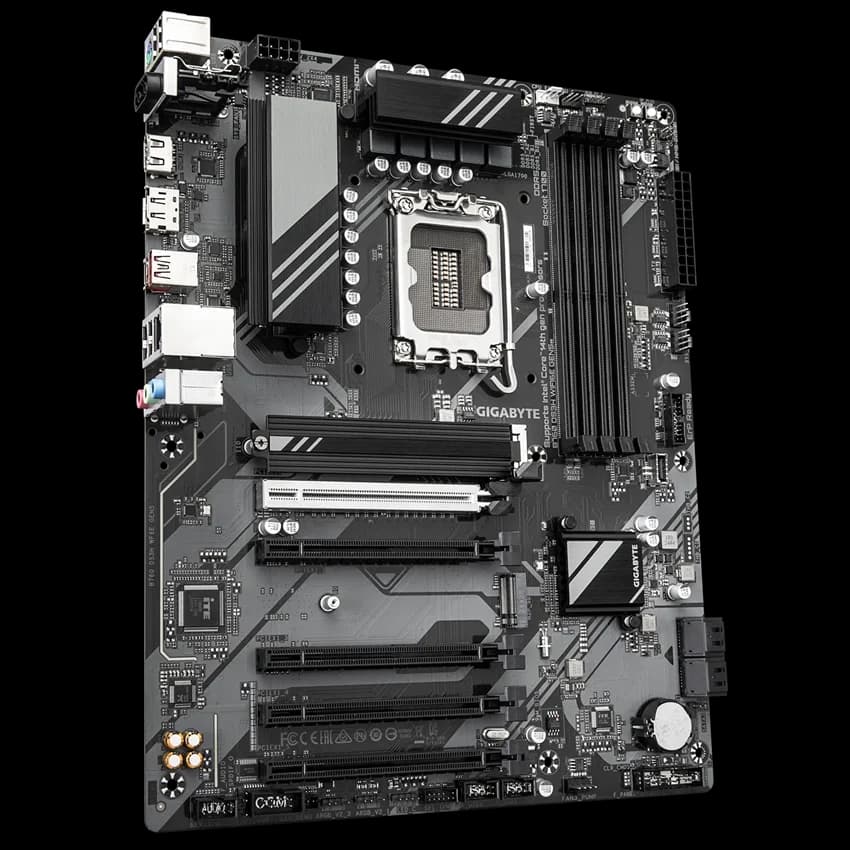

Form factorATX Form Factor; 30.5cm x 24.4cm
Memory typeSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules

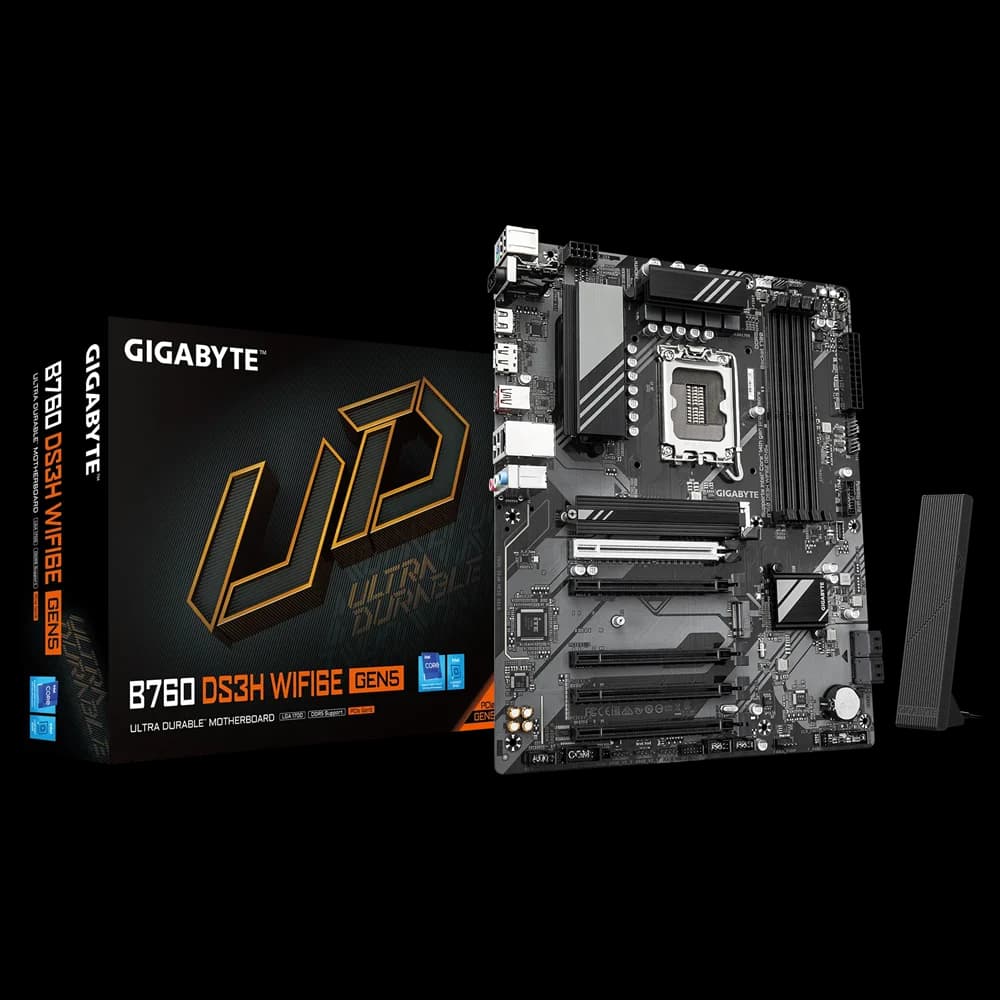

ManufacturerGIGABYTE
Rear panel I/OiTE® I/O Controller Chip
CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
Expansion slotsCPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
