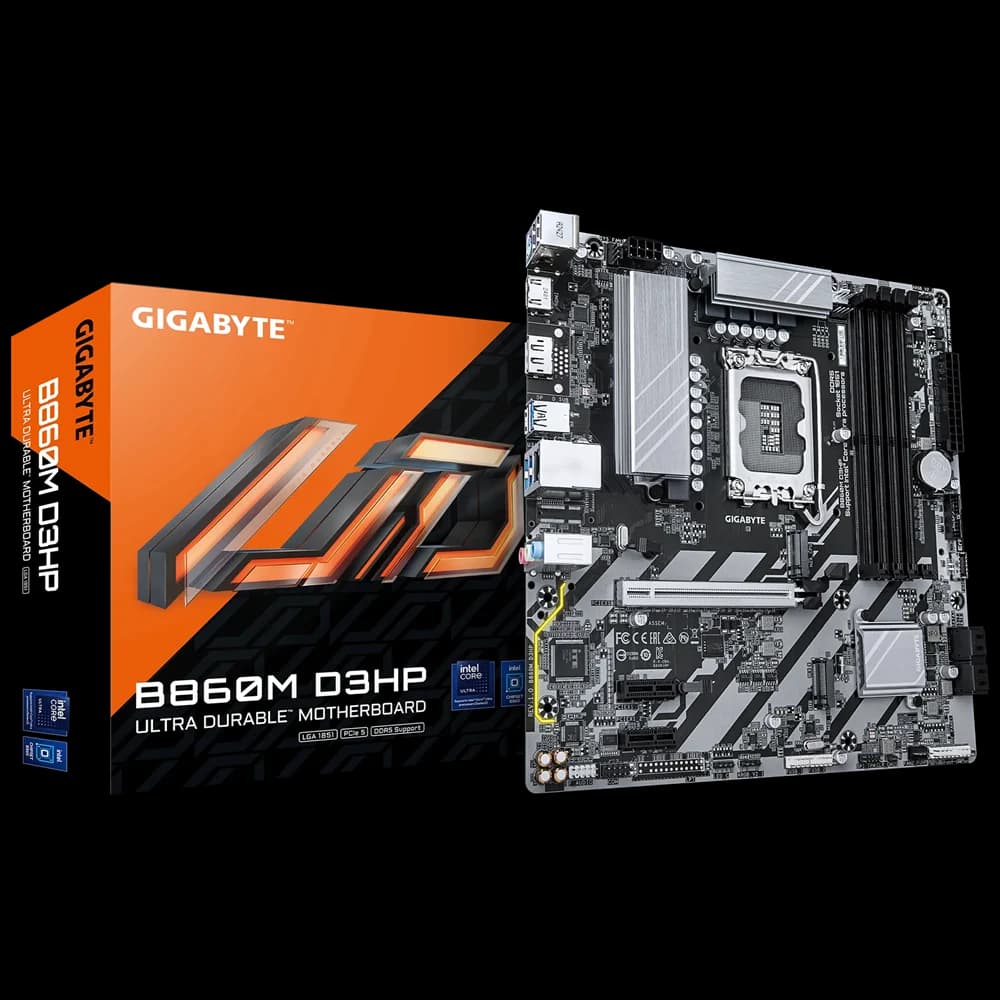

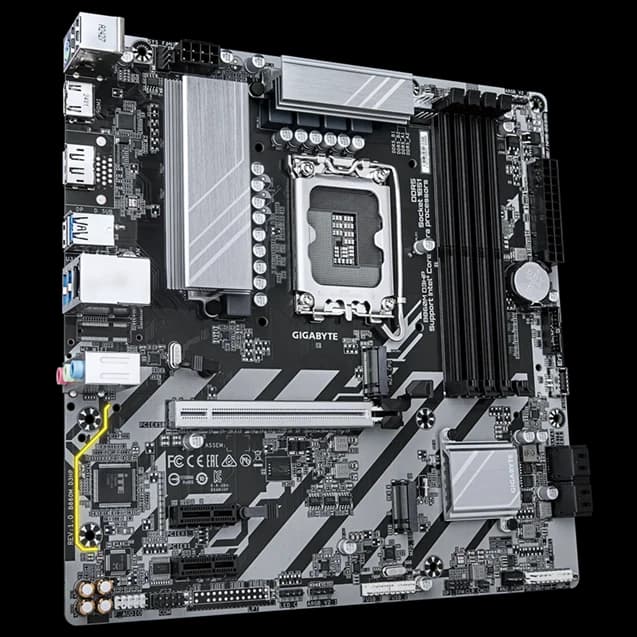

GB B860M D3HP

LGA1851 /Intel Core Ultra 200

143,72 €

● In stock

GB B860 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1

143,72 €

// Tech specs

ManufacturerGIGABYTE

ChipsetIntel® B860 Express Chipset

CPU supportLGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU

MemorySupport for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 76…

StorageCPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, ty…

ExpansionCPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.…

Form factorMicro ATX Form Factor; 24.4cm x 24.4cm

EANB860M D3HP

ModelB860M D3HP 1.0

▸ Full specifications

OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit

LanRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

USBChipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 3 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers

BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

AudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel

ChipsetIntel® B860 Express Chipset

StorageCPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version.

// Compatibility

Motherboards · LGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

Connectors1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;1 x system fan header;1 x system fan/water cooling pump header;2 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;Back Panel Connectors;3 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;1 x DisplayPort*;1 x HDMI port*;3 x USB 3.2 Gen 1 ports;1 x RJ-45 port;3 x audio jacks

Memory typeSupport for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
