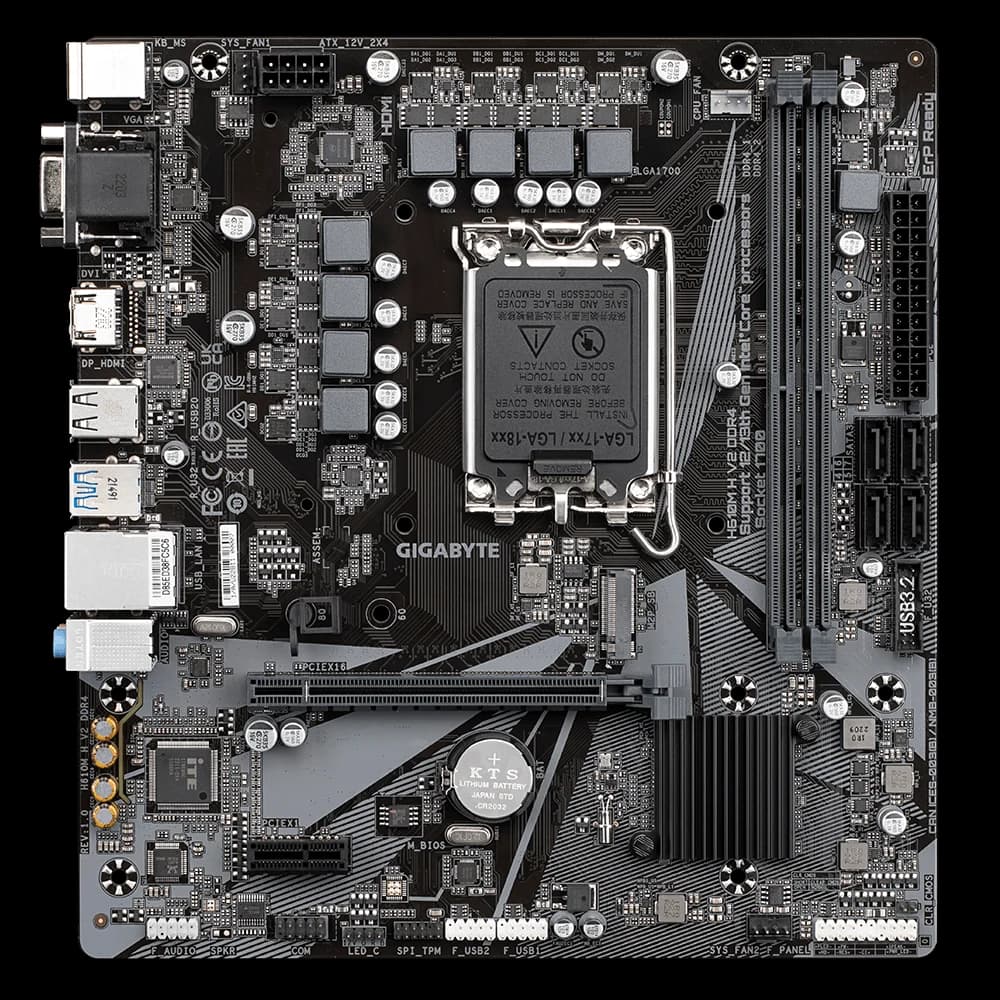

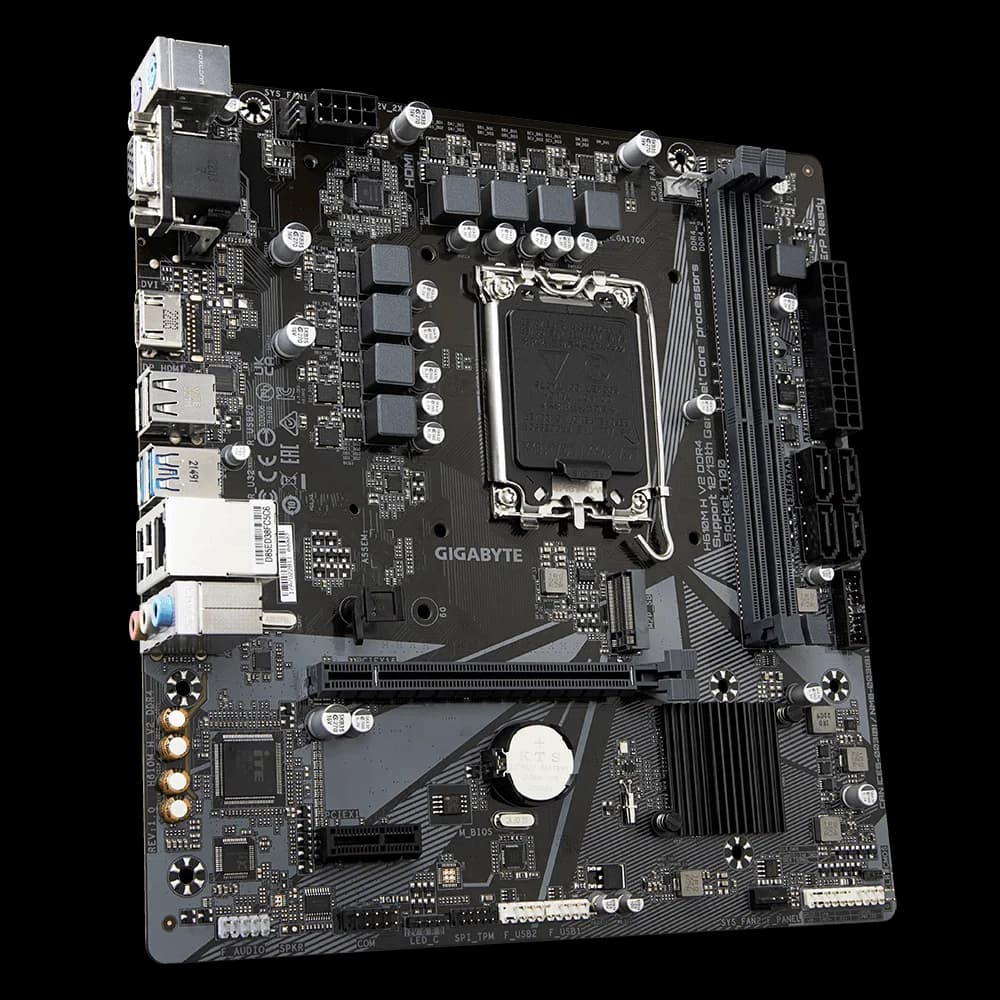

EAN 4719331859985MODEL H610M H V2 1.0
// Motherboards · GIGABYTE
GB H610M H V2 /LGA1700
LGA1700 /Intel 12th and 13th Gen
72,91 €
● In stockGB H610 2xDDR5 4xSATA3 HDMI 2DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
72,91 €
// Tech specs
ManufacturerGIGABYTE
ChipsetIntel® H610 Express Chipset
CPU supportLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Memory14th and 13th Generation Intel® Core™ i9/i7 Pocessors;- Support for DDR5 5600/5200/4800/4400 MT/s memory modules;13th Generation Intel® Cor…
StorageChipset;- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors
ExpansionCPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running a…
Form factorMicro ATX Form Factor; 22.3cm x 19.6cm
EAN4719331859985
ModelH610M H V2 1.0
▸ Full specifications▾ Full specifications
OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit;Bundled Software;Norton® Internet Security (OEM version);LAN bandwidth management software
LanRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
ChipsetIntel® H610 Express Chipset
StorageChipset;- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Warranty36 Months
ConnectorsInternal I/O Connectors:1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x RGB LED strip header;1 x front panel header;1 x front panel audio header;1 x speaker header;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;1 x chassis intrusion header;Back Panel Connectors;1 x PS/2 keyboard/mouse port;1 x D-Sub port;1 x HDMI port;2 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks
// Compatibility
Motherboards · LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
// Delivery & warranty
- ✓Genuine part
- ✓3-year warranty
- ✓Delivery across Bulgaria
