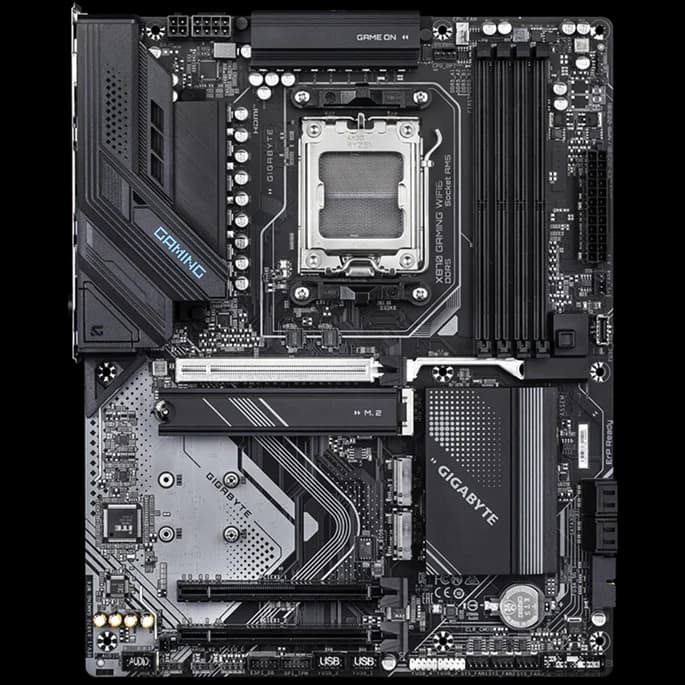

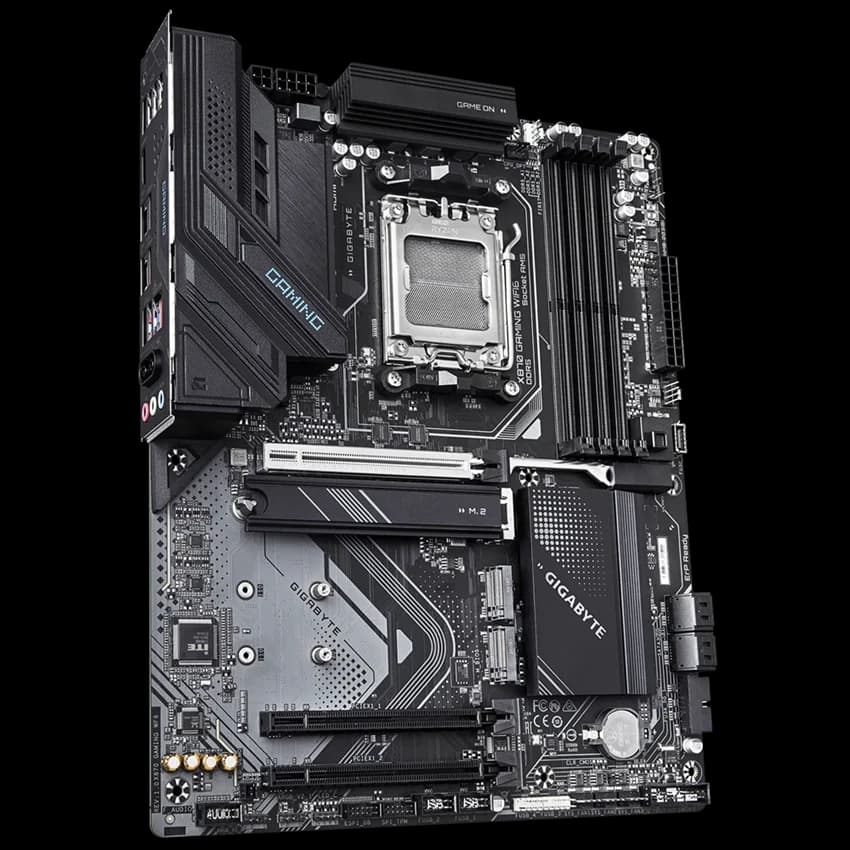

GB X870 Gaming WF6 /AM5

AMD AM5

208,76 €

● In stock

GB X870 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 3xPCIEx16 WiFi

208,76 €

// Tech specs

ManufacturerGIGABYTE

ChipsetAMD X870

CPU supportAMD Socket AM5, support for;-AMD Ryzen™ 9000 Series Processors/;-AMD Ryzen™ 8000 Series Processors/;-AMD Ryzen™ 7000 Series Processors

MemorySupport for DDR5;8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 56…

Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs;-AMD Ryzen™ 9000/7000 Se…

Expansion1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen™ 800…

Form factorATX Form Factor; 30.5cm x 24.4cm

EAN4719331865399

ModelX870 GAMING WF6 1.0

▸ Full specifications

OSSupport for Windows 11 64-bit;Support for Windows 10 64-bit

LanRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

BIOS1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

AudioRealtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

ChipsetAMD X870

Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs;1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs;* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 support for SATA storage devices

// Compatibility

Motherboards · AMD Socket AM5, support for;-AMD Ryzen™ 9000 Series Processors/;-AMD Ryzen™ 8000 Series Processors/;-AMD Ryzen™ 7000 Series Processors

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon™ Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support native HDMI 2.1 TMDS compatible ports.;(Graphics specifications may vary depending on CPU support.)

WirelessRealtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless standard;(Actual data rate may vary depending on environment and equipment.)

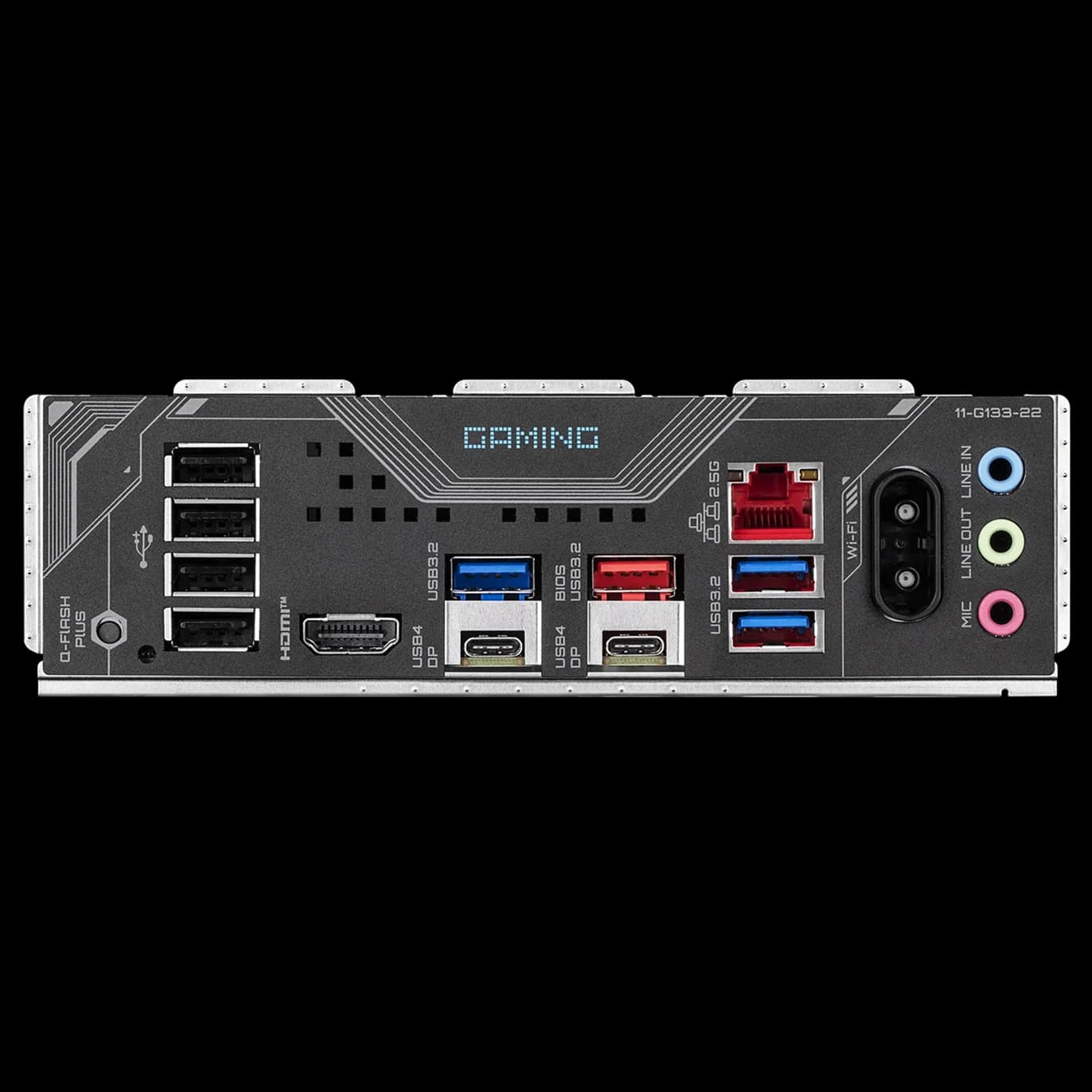

ConnectorsInternal I/O Connectors;-1 x 24-pin ATX main power connector;-1 x 8-pin ATX 12V power connector;-1 x 4-pin ATX 12V power connector;-1 x CPU fan header;-1 x CPU fan/water cooling pump header;-4 x system fan headers;-3 x addressable RGB Gen2 LED strip headers;-1 x RGB LED strip header;-4 x SATA 6Gb/s connectors;-3 x M.2 Socket 3 connectors;-1 x front panel header;-1 x front panel audio header;-1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;-1 x USB 3.2 Gen 1 header;-4 x USB 2.0/1.1 headers;-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);-1 x reset jumper;-1 x Clear CMOS jumper;Back Panel Connectors;-1 x Q-Flash Plus button;-2 x SMA antenna connectors (2T2R);-1 x HDMI port (Note);-2 x USB4® USB Type-C® ports (DisplayPort (Note));-1 x USB 3.2 Gen 2 Type-A port (red);-3 x USB 3.2 Gen 1 ports;-4 x USB 2.0/1.1 ports;-1 x RJ-45 port;-3 x audio jacks;(Note) Actual support may vary by CPU.

Form factorATX Form Factor; 30.5cm x 24.4cm

Memory typeSupport for DDR5;8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

ManufacturerGIGABYTE

Rear panel I/OiTE® I/O Controller Chip

CPU's supportedAMD Socket AM5, support for;-AMD Ryzen™ 9000 Series Processors/;-AMD Ryzen™ 8000 Series Processors/;-AMD Ryzen™ 7000 Series Processors

Expansion slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset;- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
