Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; - AMD Ryzen™ 9000/7000 Se…
Expansion1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode; - AMD Ryzen…
Form factorATX Form Factor; 30.5cm x 24.4cm

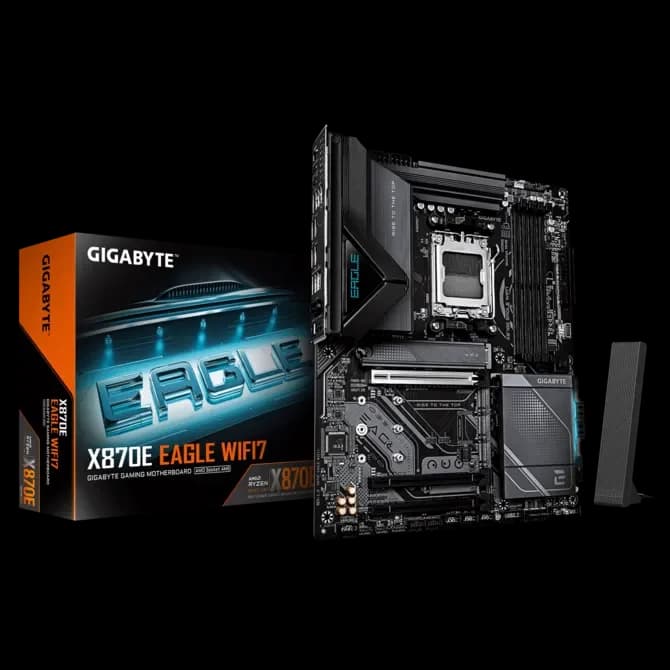

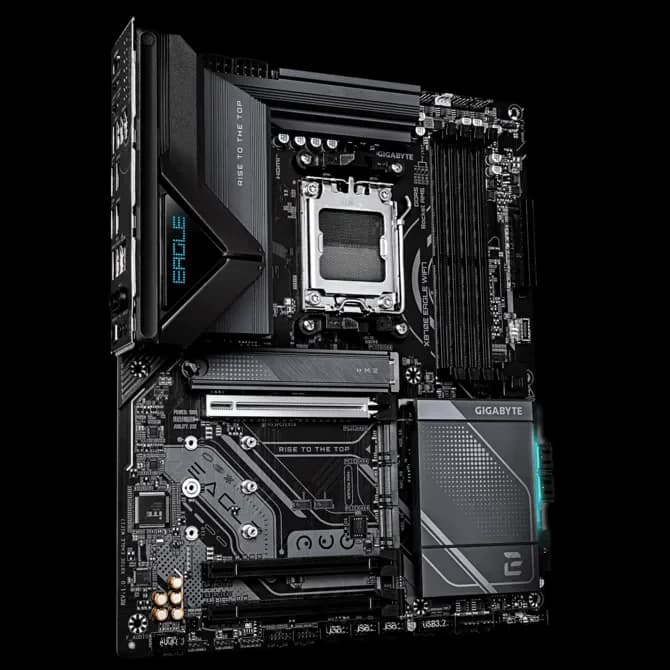

ModelX870E EAGLE WIFI7
▸ Full specifications▾ Full specifications
OSSupport for Windows 11 64-bit
LanRealtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
USBCPU+ASMedia USB4® controller:; - 2 x USB4® USB Type-C® ports on the back panel; CPU:; - 2 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers); - 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
BIOS1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
AudioRealtek® ALC1220 CODEC; * The back panel line out jack supports DSD audio.; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
ChipsetAMD X870E
// Compatibility
Motherboards · AMD Socket AM5, support for:; AMD Ryzen™ 9000 Series Processors/; AMD Ryzen™ 8000 Series Processors/; AMD Ryzen™ 7000 Series Processors
// Delivery & warranty
✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:; - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * Support for DisplayPort 1.4 version and HDR.; Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.
WirelessRealtek® Wi-Fi 7 RTL8922AE; - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.); * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.); ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.; ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Bluetooth5.4

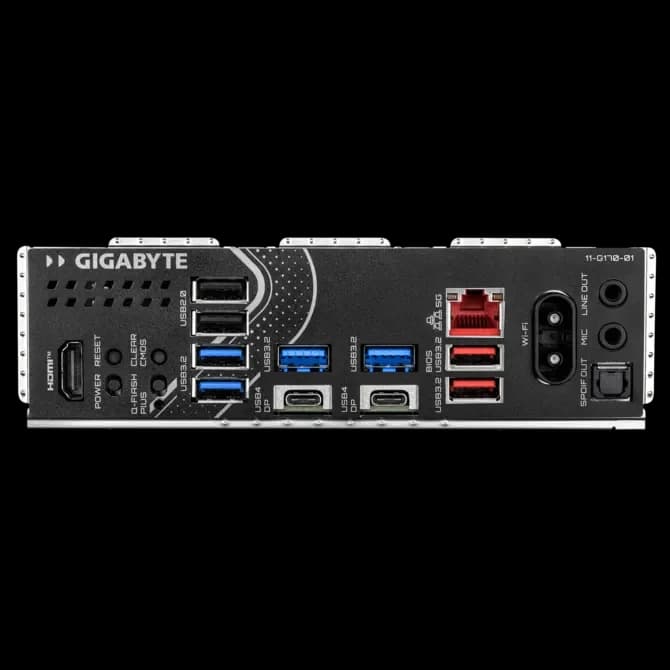

ConnectorsInternal I/O Connectors; 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 1 headers; 3 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x HDMI port (Note); 1 x reset button; 1 x power button; 1 x Clear CMOS button; 1 x Q-Flash Plus button; 2 x USB 2.0/1.1 ports; 4 x USB 3.2 Gen 1 ports; 2 x USB4® USB Type-C® ports (DisplayPort (Note)); 1 x RJ-45 port; 2 x USB 3.2 Gen 2 Type-A ports (red); 2 x antenna connectors (2T2R); 2 x audio jacks; 1 x optical S/PDIF Out connector
Form factorATX Form Factor; 30.5cm x 24.4cm
Memory typeSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
ManufacturerGigabyte
Rear panel I/OiTE® I/O Controller Chip
CPU's supportedAMD Socket AM5, support for:; AMD Ryzen™ 9000 Series Processors/; AMD Ryzen™ 8000 Series Processors/; AMD Ryzen™ 7000 Series Processors
Expansion slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4); * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.; - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
