GB Z890 Eagle

LGA1851 /Intel Core Ultra 200

235,51 €

● In stock

235,51 €

// Tech specs

ManufacturerGIGABYTE

ChipsetIntel® Z890 Express Chipset

CPU supportLGA1851 socket: Support for Intel® Core™ Ultra Processors; (Go to GIGABYTE's website for the latest CPU support list.); L3 cache varies wit…

MemorySupport for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7…

StorageCPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280; PCIe 5.0 x4/x2 SSD support) (M2A_CPU); - 1 x M.2 connector (Socket…

ExpansionCPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or…

Form factorATX Form Factor; 30.5cm x 24.4cm

EAN4719331865214

ModelZ890 EAGLE

▸ Full specifications

OSSupport for Windows 11 64-bit

LanRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USBCPU:; - 1 x USB4® USB Type-C® port on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); Chipset+2 USB 2.0 Hubs:; - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

BIOS1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

AudioRealtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

ChipsetIntel® Z890 Express Chipset

StorageCPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280; PCIe 5.0 x4/x2 SSD support) (M2A_CPU); - 1 x M.2 connector (Socket 3, M key, type 22110/2280; PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); - 4 x SATA 6Gb/s connectors

// Compatibility

Motherboards · LGA1851 socket: Support for Intel® Core™ Ultra Processors; (Go to GIGABYTE's website for the latest CPU support list.); L3 cache varies with CPU

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

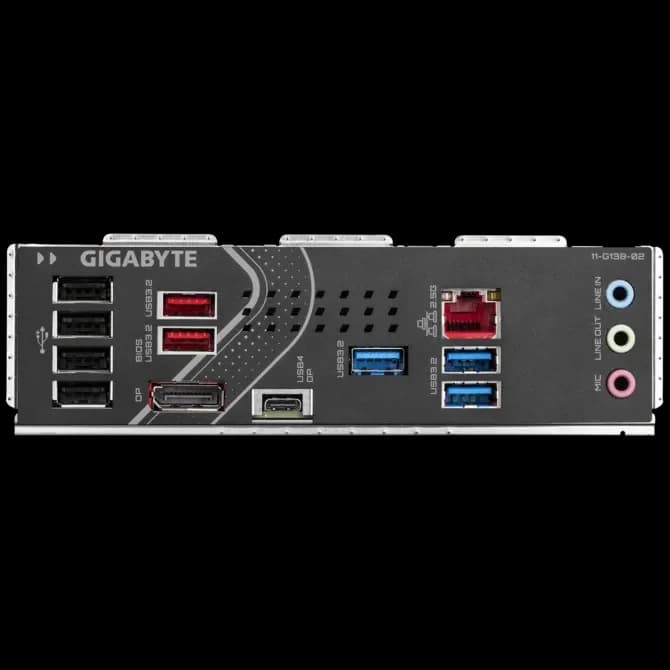

ConnectorsInternal I/O Connectors; 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only); 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x power button; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x USB4® USB Type-C® port (DisplayPort (Note)); 2 x USB 3.2 Gen 2 Type-A ports (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x DisplayPort (Note); 2 x antenna connectors (2T2R); 1 x RJ-45 port; 3 x audio jacks

Memory typeSupport for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
