GB Z890 Gaming X WIFI7

LGA1851 /Intel Core Ultra 200

258,07 €

● In stock

258,07 €

// Tech specs

ManufacturerGIGABYTE

ChipsetIntel® Z890 Express Chipset

CPU supportLGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU

MemorySupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 790…

StorageCPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); - 1 x M.2 connector (Socket 3…

ExpansionCPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or…

Form factorATX Form Factor; 30.5cm x 24.4cm

EAN4719331864941

ModelZ890 GAMING X WIFI7

▸ Full specifications

OSSupport for Windows 11 64-bit

LanRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USBCPU:; - 1 x USB4® USB Type-C® port on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); Chipset+2 USB 2.0 Hubs:; - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

BIOS1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

AudioRealtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out

ChipsetIntel® Z890 Express Chipset

StorageCPU:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); - 4 x SATA 6Gb/s connectors

// Compatibility

Motherboards · LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:; - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version; - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; * Support for HDMI 1.4 version; (Graphics specifications may vary depending on CPU support.); Support for up to 3 displays at the same time

WirelessMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0); - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 160MHz wireless standard; Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1); - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 160MHz wireless standard

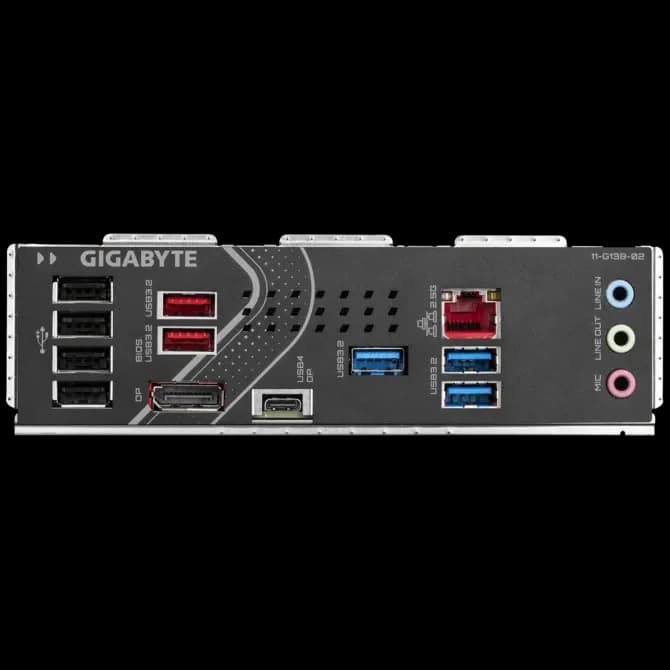

ConnectorsInternal I/O Connectors; 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only); 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x HDMI port (Note); 1 x power button; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x USB4® USB Type-C® port (DisplayPort (Note)); 2 x USB 3.2 Gen 2 Type-A ports (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x DisplayPort (Note); 2 x antenna connectors (2T2R); 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 2 x audio jacks

Form factorATX Form Factor; 30.5cm x 24.4cm

Memory typeSupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

ManufacturerGigabyte

Rear panel I/OiTE® I/O Controller Chip

CPU's supportedLGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU

Expansion slotsCPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
