MSI B550 Gaming

AMD AM5

130,08 €

● In stock

130,08 €

// Tech specs

ManufacturerMSI

ChipsetAMD B550

CPU supportSupports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-S…

Memory4x DDR4, Maximum Memory Capacity 128GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4…

Storage2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset)…

Expansion2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset…

EAN4711377459846

Model911-7C56-093

▸ Full specifications

OSSupport for Windows® 11 64-bit

LanRealtek® 8111H 1G LAN

USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear)

AudioRealtek® ALC897; 7.1-Channel High Definition Audio

SocketSocket AM4

ChipsetAMD B550

Storage2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices; 6x SATA 6G

Graphics1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.2, maximum resolution of 4K 60Hz

WirelessWi-Fi 5 Solution

// Compatibility

Motherboards · Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

Supports Bluetooth® 5.0

DimensionsATX 243.84mmx304.8mm

Memory type4x DDR4, Maximum Memory Capacity 128GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE; • 1DPC 1R Max speed 4800 MHz; • 1DPC 2R max speed 3866 MHZ; • 2DPC 1R max speed 4000 MHZ; • 2DPC 2R max speed 3600 MHZ; • Dual channel memory architecture; • Supports non-ECC UDIMM memory; • Supports ECC UDIMM memory (non-ECC mode); • Supports un-buffered memory

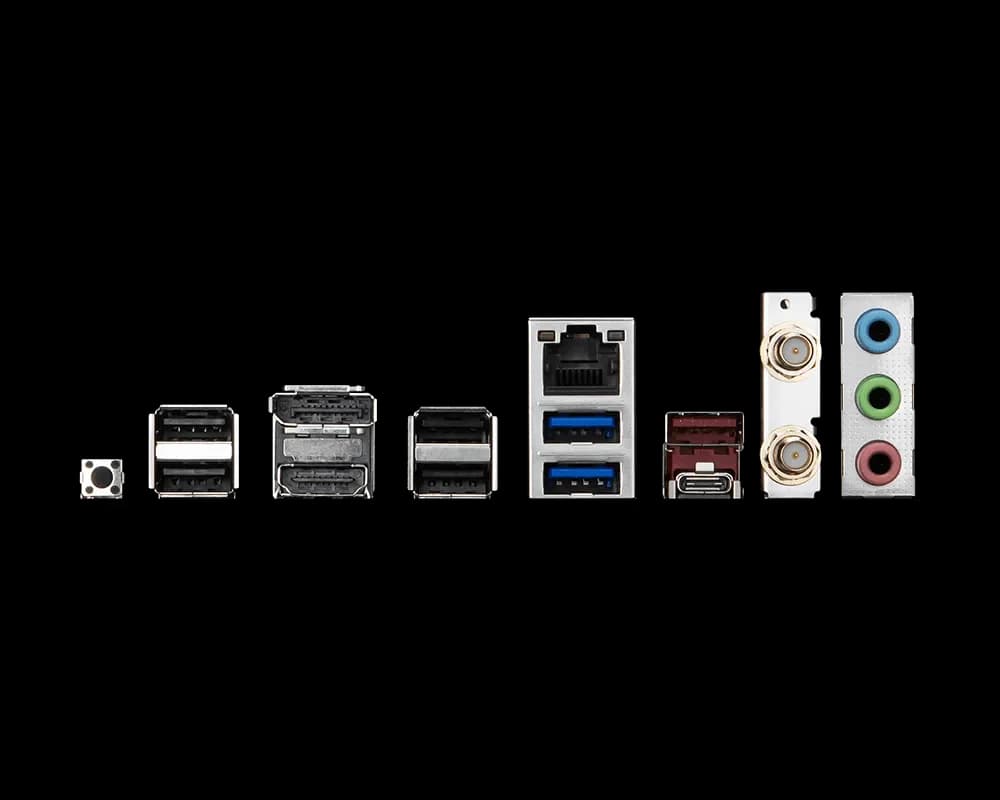

Rear panel I/O1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable RGB LED connector(JRAINBOW); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 1x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports

CPU's supportedSupports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Expansion slots2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
