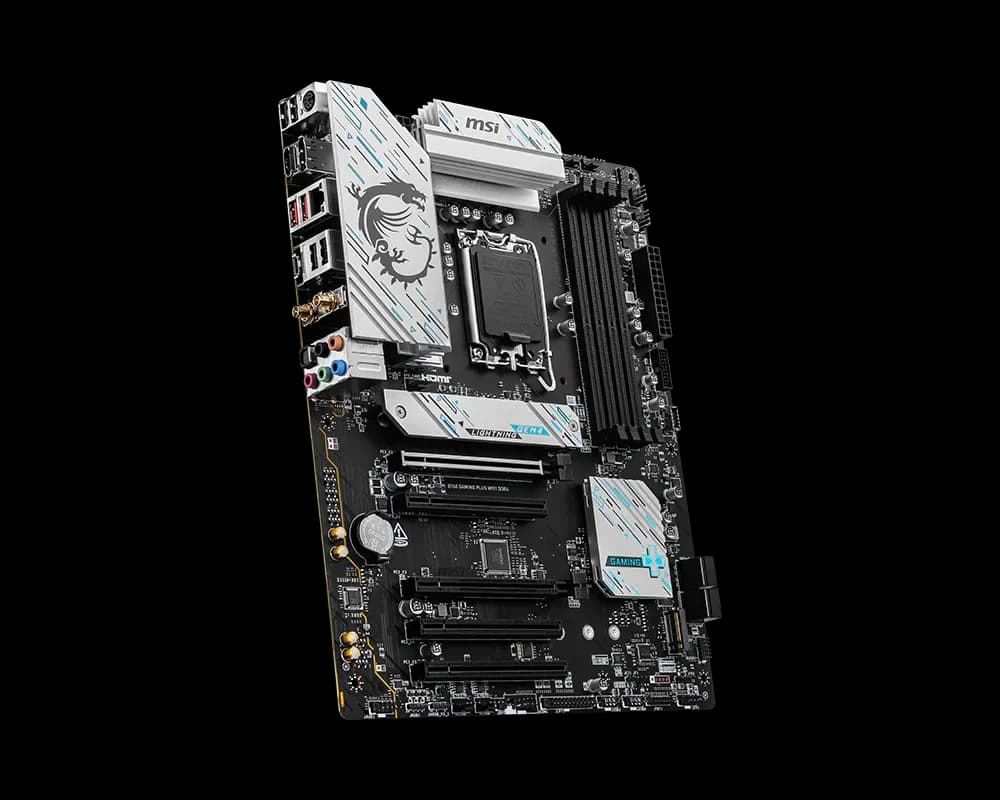

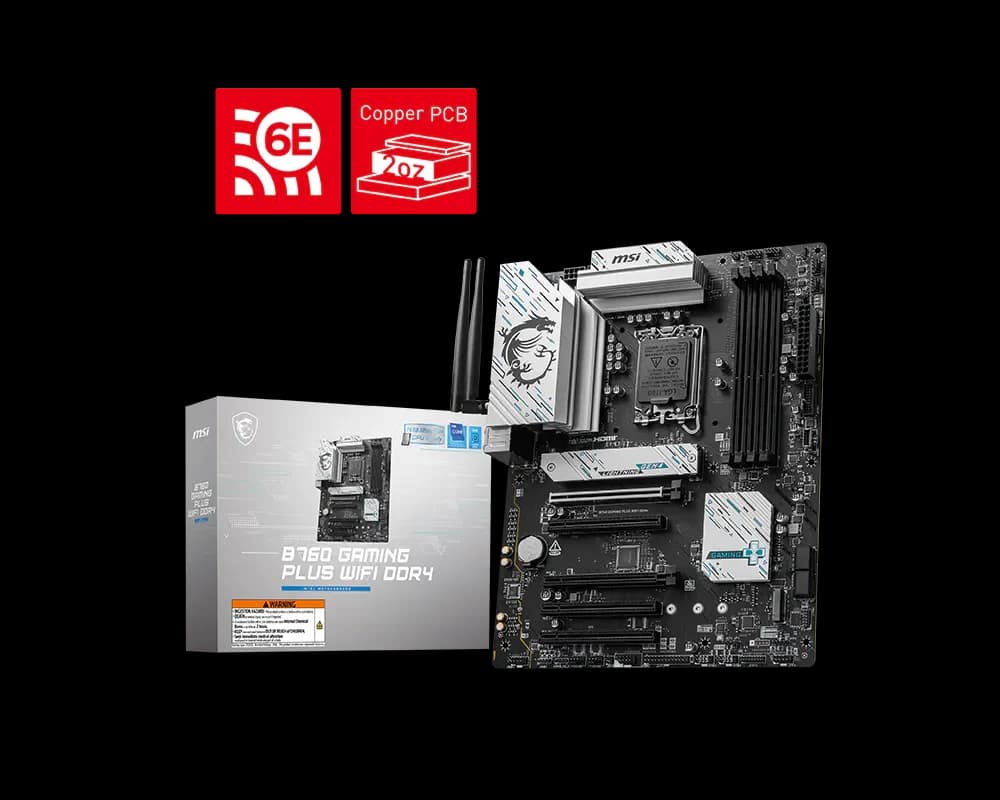

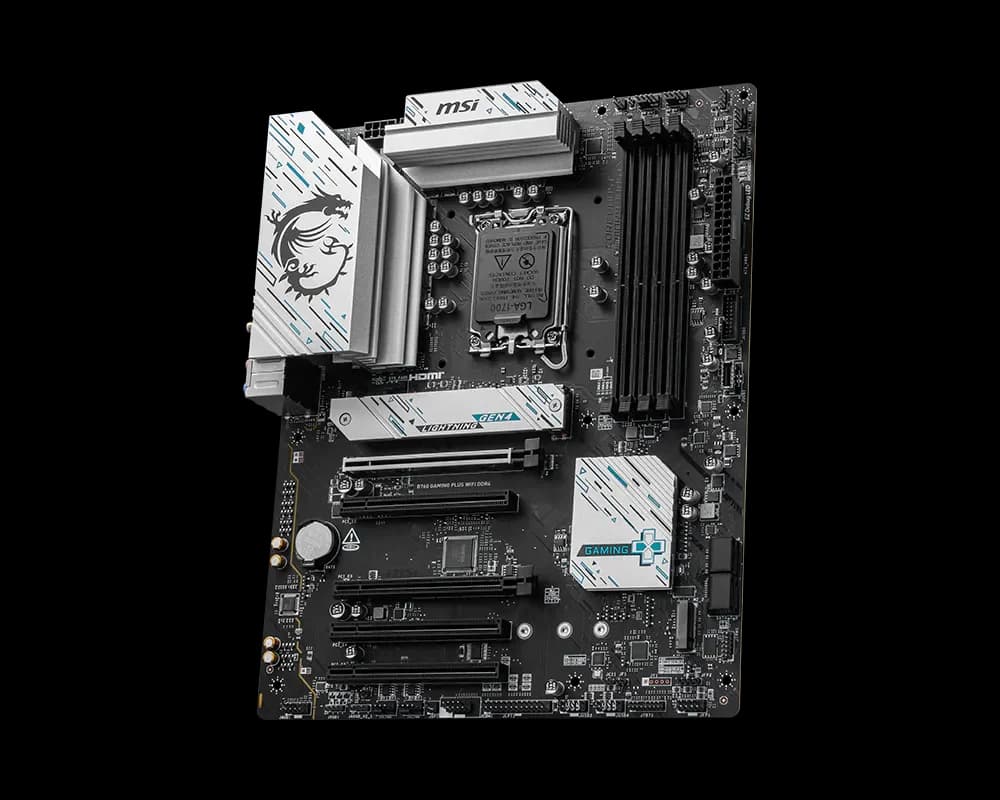

MSI B760 Gaming Plus WiFi DDR4

AMD AM5

167,44 €

● In stock

167,44 €

// Tech specs

ManufacturerMSI

ChipsetINTEL B760

CPU supportSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

Memory4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200…

Storage2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up…

Expansion5x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe…

Form factorATX, 243.84mmx304.8mm

EAN4711377247900

Model911-7D98-043

▸ Full specifications

OSSupport for Windows® 11 64-bit, Windows® 10 64-bit

LanRealtek® RTL8125BG 2.5G LAN

USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear)

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

AudioRealtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

SocketLGA 1700

ChipsetINTEL B760

Storage2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G; * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Graphics1x HDMI™; Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

// Compatibility

Motherboards · Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

WirelessIntel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

BluetoothSupports Bluetooth® 5.3, FIPS, FISMA; ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Connectors1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports

Form factorATX, 243.84mmx304.8mm

Memory type4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

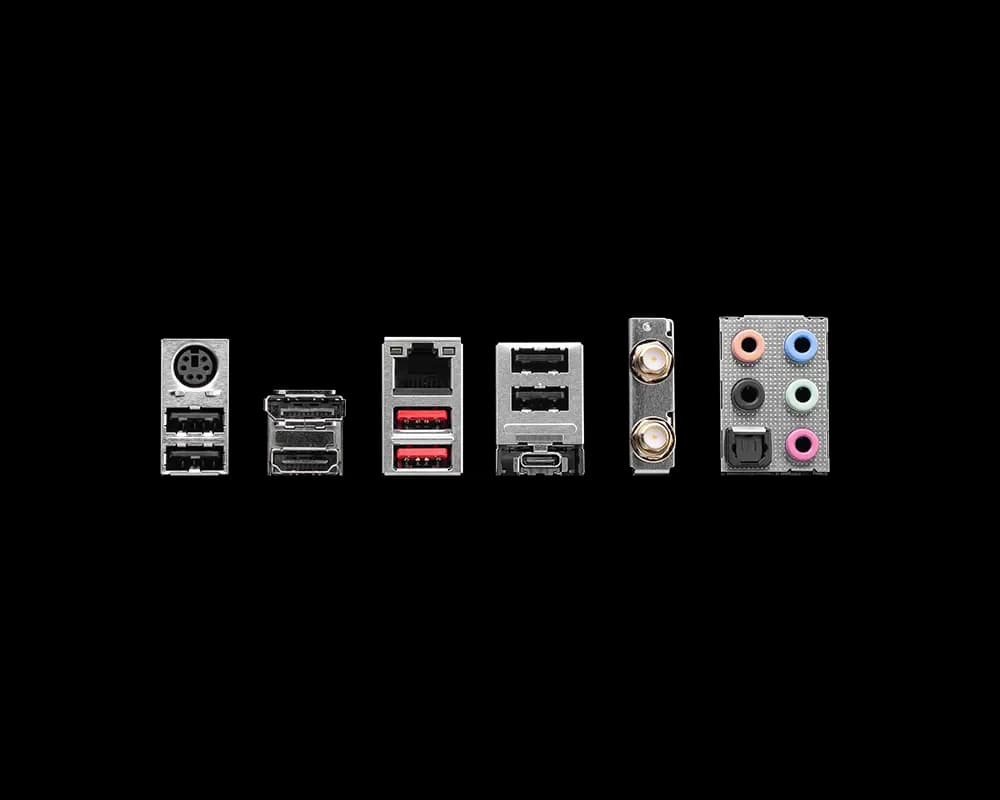

Rear panel I/OKeyboard / Mouse; DisplayPort; 2.5G LAN; USB 2.0; Wi-Fi / Bluetooth; Audio Connectors; USB 2.0; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-C); S/PDIF-OUT

CPU's supportedSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

Expansion slots5x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
