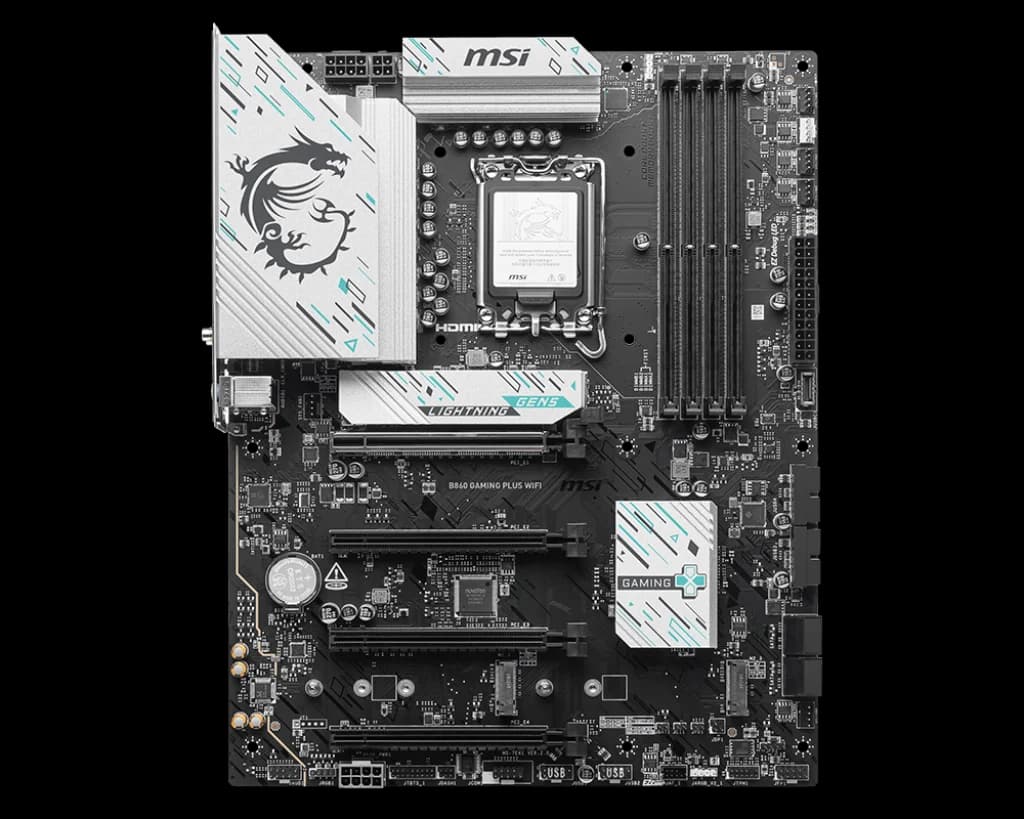

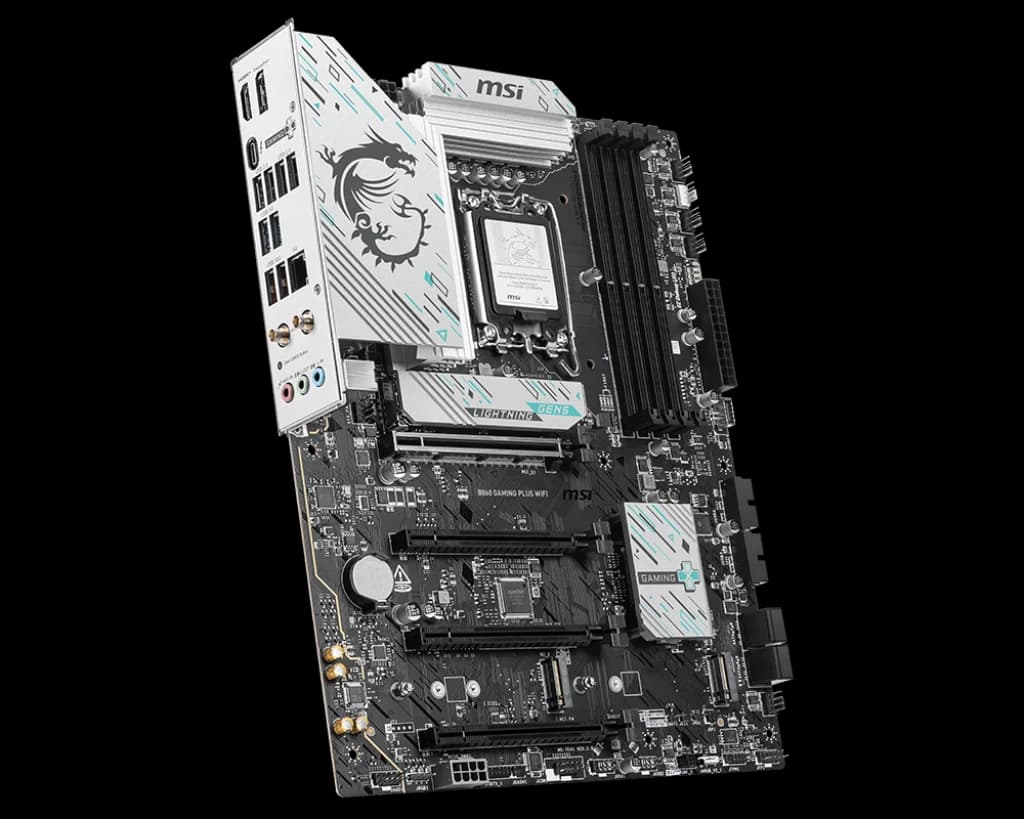

MSI B860 Gaming Plus WiFi

LGA1851 /Intel Core Ultra 200

209,81 €

● In stock

MSI B860 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16 WiFi

209,81 €

// Tech specs

ManufacturerMSI

ChipsetINTEL B860

CPU supportSupports Intel® Core™ Ultra Processors (Series 2) LGA 1851

Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency;•…

Storage3x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_2 Source (From Chipset) supports up to PCIe 4.0…

Expansion4x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.…

Form factorATX 243.84mmx304.8mm

EAN4711377289764

Model911-7E41-003

▸ Full specifications

OSSupport for Windows® 11 64-bit

LanIntel® Killer™ E5000 5Gbps LAN

AudioRealtek® ALC897 Codec;7.1-Channel High Definition Audio

ChipsetINTEL B860

Storage3x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices;4x SATA 6G;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Graphics1x HDMI™;Support HDMI™ 2.1, maximum resolution of 4K 60Hz*;1x DisplayPort;Support DisplayPort 1.4, maximum resolution of 4K 60Hz*;1x Type-C DisplayPort;Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*;*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Warranty36 Months

WirelessIntel® Killer™ BE1750x Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

// Compatibility

Motherboards · Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria

BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM

Connectors1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);4x System Fan;1x EZ Conn-header (JAF_1);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x Tuning Controller connector(JDASH);2x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports

Form factorATX 243.84mmx304.8mm

Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency;• 1DPC 1R Max speed up to 8600+ MT/s;• 1DPC 2R Max speed up to 7200+ MT/s;• 2DPC 1R Max speed up to 4800+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports Intel® POR Speed and JEDEC Speed;Supports Memory Overclocking and Intel® XMP 3.0;Supports Dual-Controller Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM

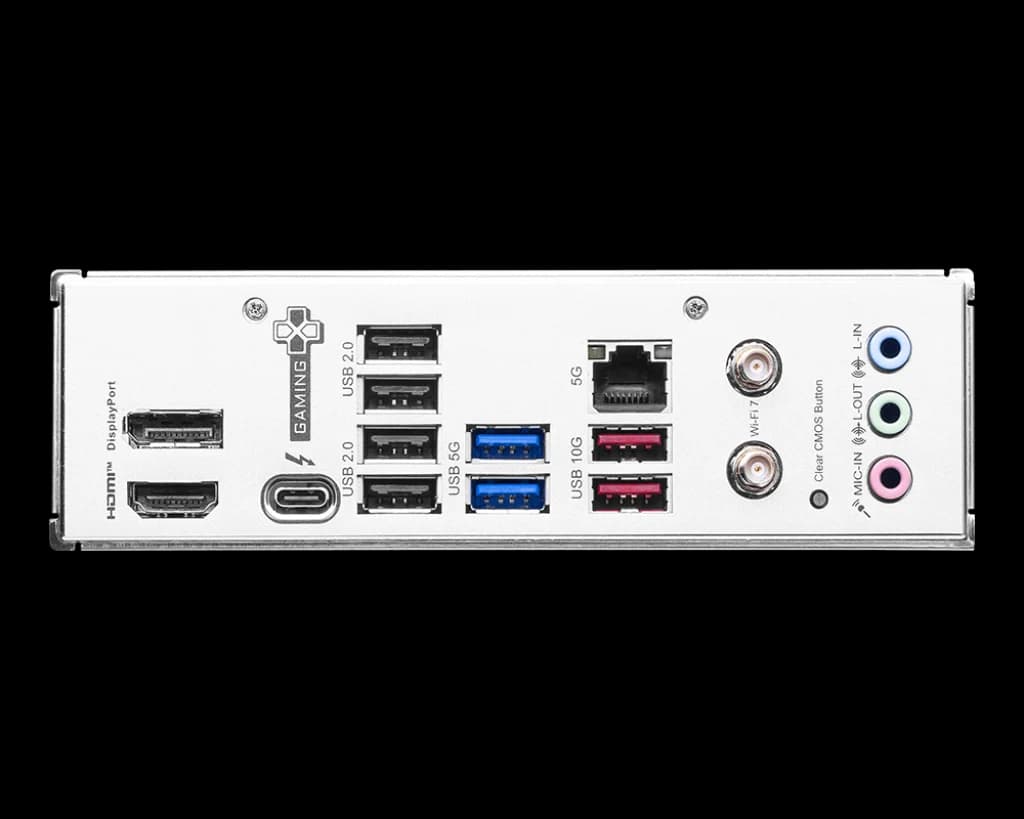

Rear panel I/OThunderbolt;1x Thunderbolt4 ports (Rear);Supports up to 40Gbps transfer rate with Thunderbolt devices;Supports up to 20Gbps transfer rate with USB4 devices;Supports up to 10Gbps transfer rate with USB 3.2 devices;Supports up to 5V/3A,15W power charging;Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices;Supports up to 8K display;4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);4x USB 5Gbps Type A (Front);2x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Front);1x USB 40Gbps Type C (Rear);• Display Port;• USB 2.0;• 5G LAN;• Wi-Fi / Bluetooth;• Audio Connectors;• HDMI™;• Thunderbolt™ 4 40Gbps (Type-C);• USB 5Gbps (Type-A);• USB 10Gbps (Type-A);• Clear CMOS Button

CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2) LGA 1851

Expansion slots4x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
