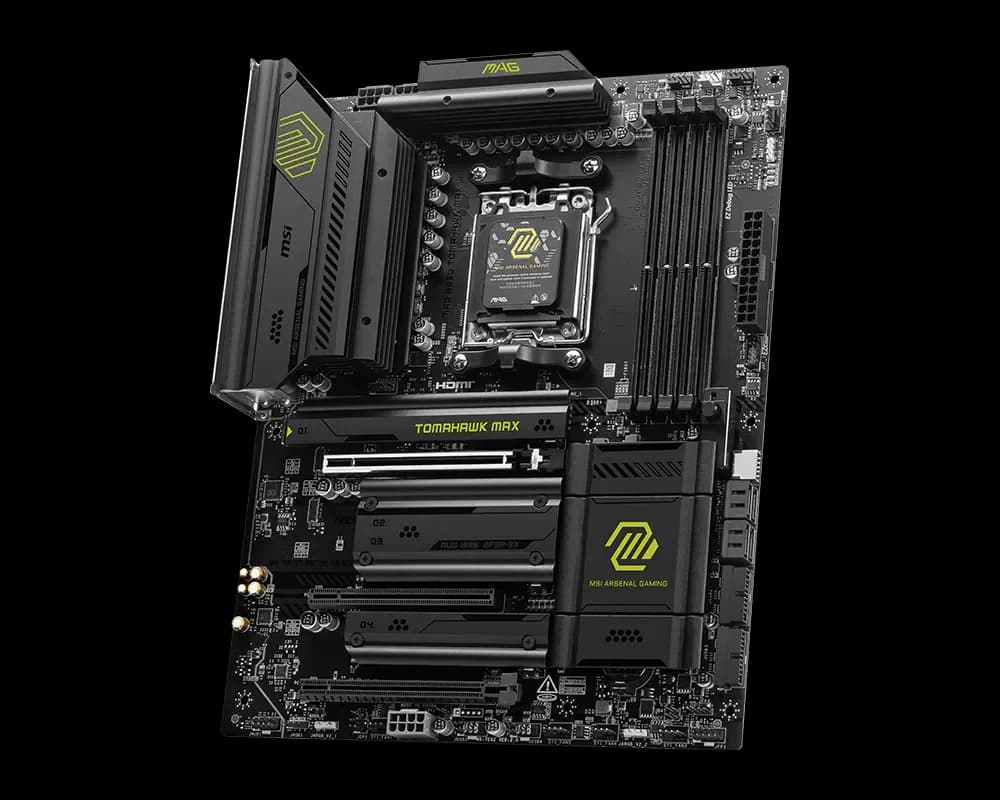

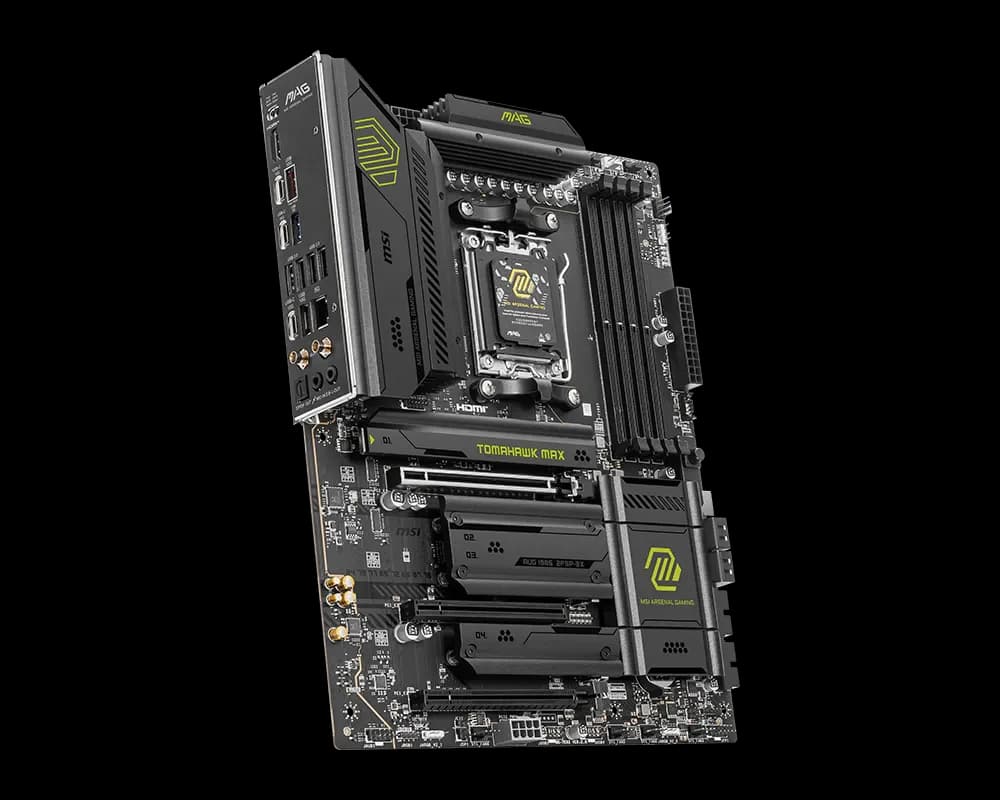

MSI MAG B850 Tomahawk MAX Wfii

AMD AM5

313,55 €

● In stock

313,55 €

// Tech specs

ManufacturerMSI

ChipsetAMD B850

CPU supportSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Proc…

Storage4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x…

Expansion3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe…

Form factorATX, 243.84mmx304.8mm

EAN4711377424011

Model911-7E62-015

▸ Full specifications

OSSupport for Windows® 11 64-bit

LanRealtek® 8126VB 5G LAN

USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 1x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 3x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front)

RAIDSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

AudioRealtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-bit/384kHz playback on front panel; Supports S/PDIF output

SocketSocket AM5

ChipsetAMD B850

Storage4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M2_2 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors); *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.; ** Please refer to the manual for M.2 SSD heatsink restrictions

// Compatibility

Motherboards · Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

Graphics1x HDMI™; Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

WirelessWi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Connectors1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports

Form factorATX, 243.84mmx304.8mm

Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard have double-sided latches.; • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

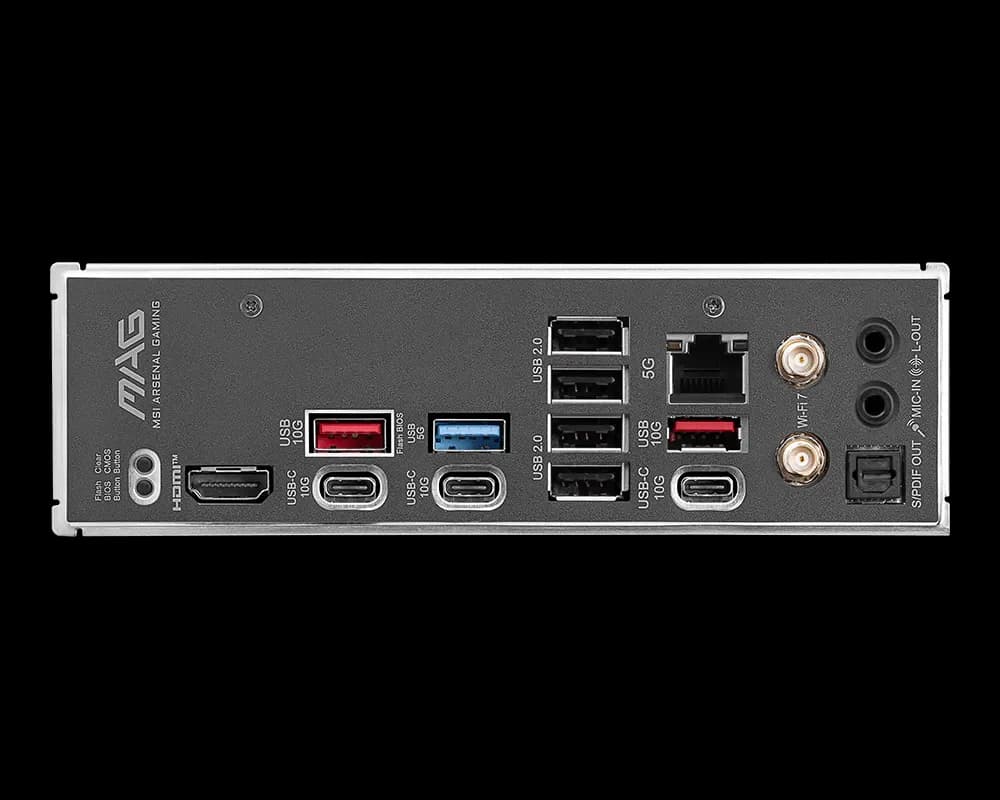

Rear panel I/OClear CMOS Button; USB 10Gbps Type-A; USB 5Gbps Type-A; USB 2.0; 5G LAN; Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; HDMI™; USB 10Gbps Type-C; USB 10Gbps Type-C; USB 10Gbps Type-A

CPU's supportedSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Expansion slots3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor); *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot
