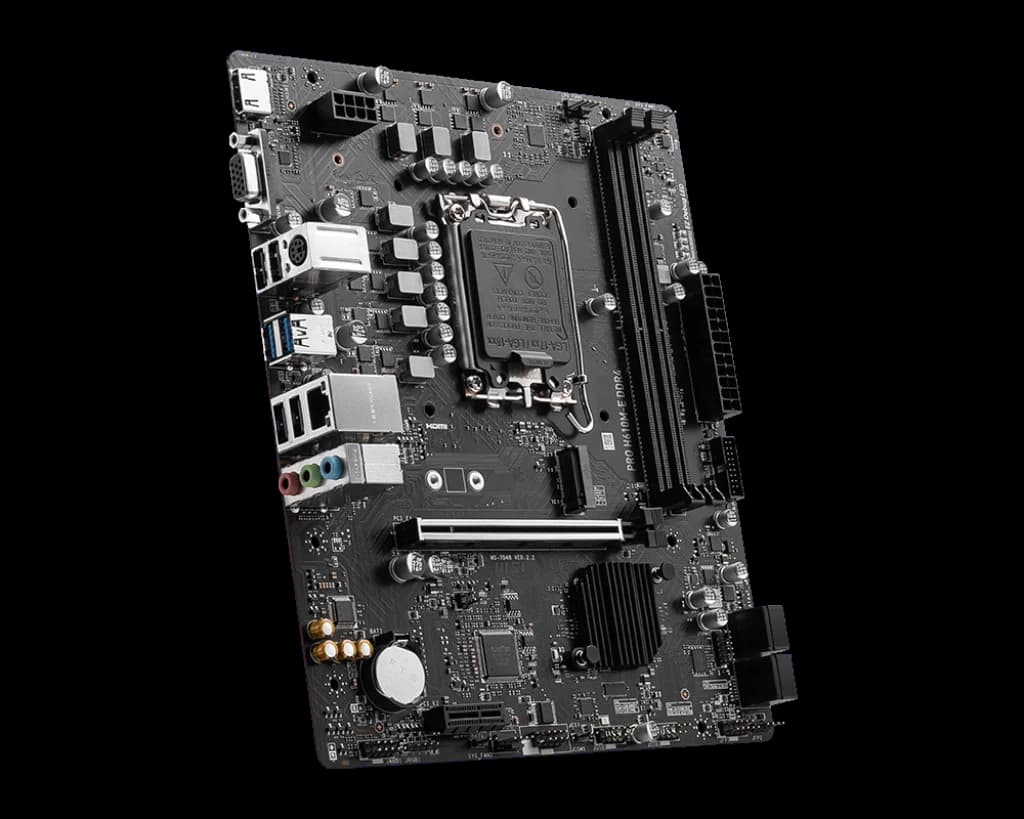

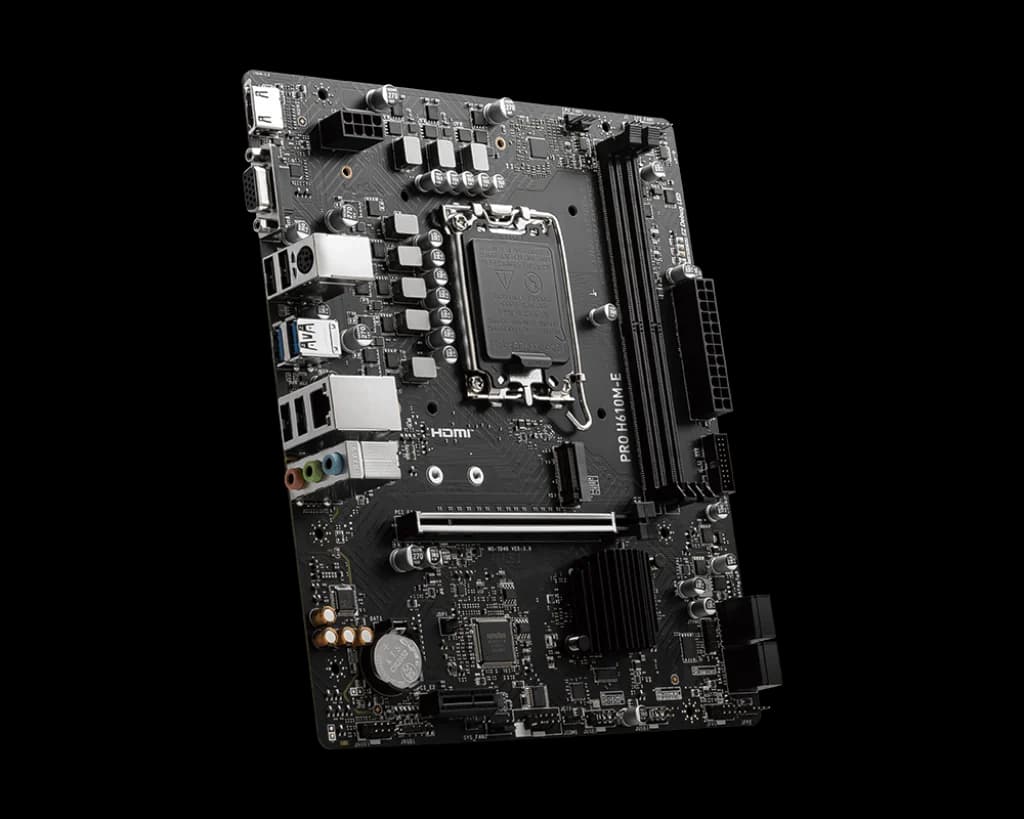

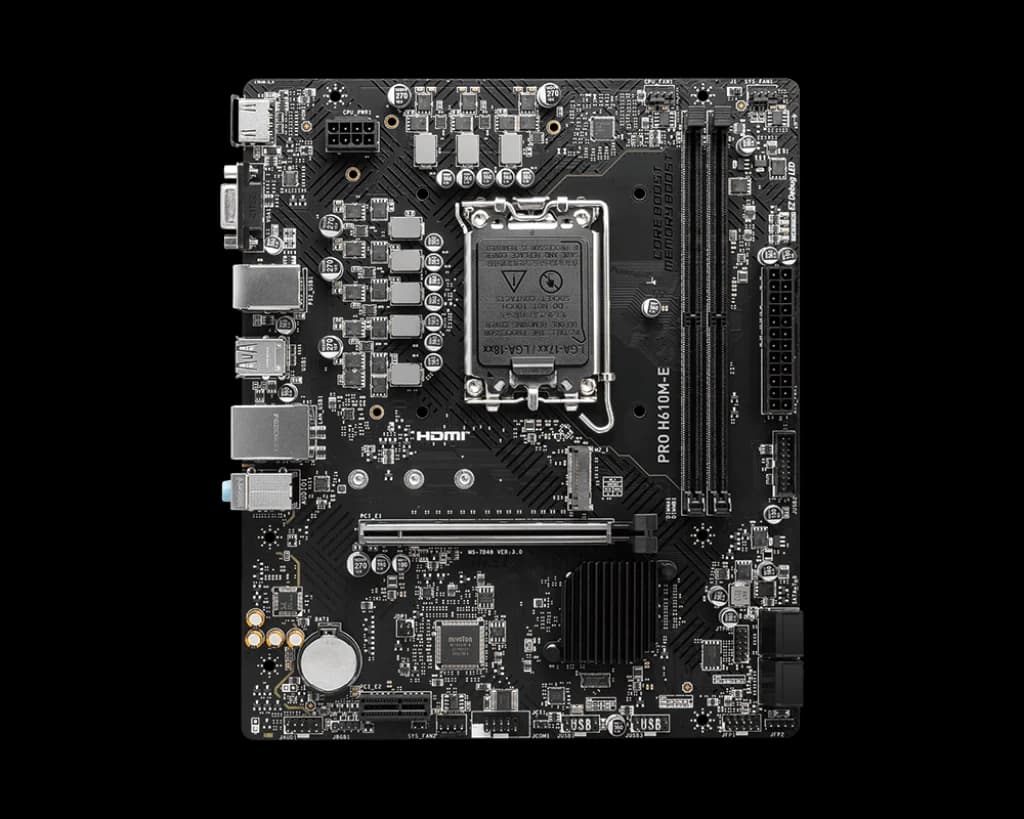

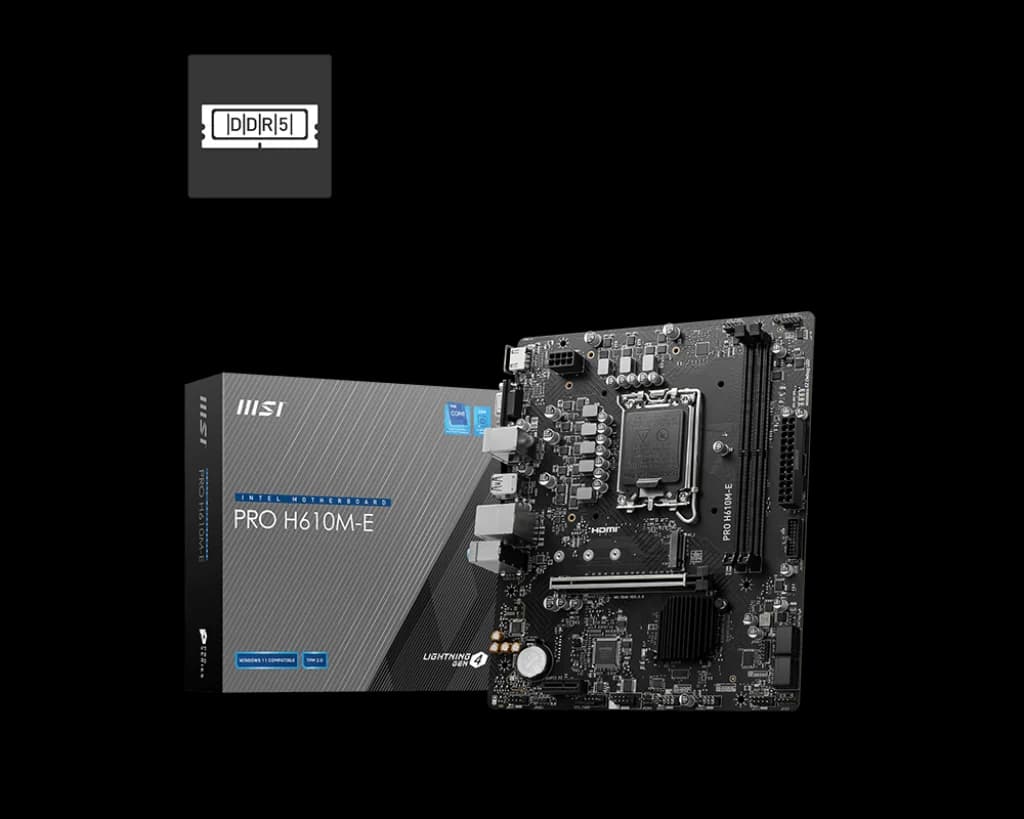

MSI PRO H610M-E / LGA1700

LGA1700 /Intel 12th and 13th Gen

72,38 €

● In stock

MSI H610 2xDDR5 4xSATA3 HDMI VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1

72,38 €

// Tech specs

ManufacturerMSI

ChipsetINTEL H610

CPU supportSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Memory2x DDR5, Maximum Memory Capacity 96GB;Memory Support DDR5 5600 MHz (by JEDEC & POR);Supports Intel® XMP 3.0 OC;Supports Dual-Controller Dua…

Storage1x M.2;M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices;4x SATA 6G

Expansion1x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to (From CPU);PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

Form factormATX, 200mmx236.16mm

EAN4711377125147

Model911-7D48-075

OSSupport for Windows® 11 64-bit, Windows® 10 64-bit

LanRealtek® RTL8111H Gigabit LAN

USB4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front)

AudioRealtek® ALC897 Codec;7.1-Channel High Definition Audio

ChipsetINTEL H610

Storage1x M.2;M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices;4x SATA 6G

Graphics1x HDMI™;Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*;1x VGA;Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Warranty36 Months

Connectors1x Power Connector(ATX_PWR);1x Power Connector(CPU_PWR);1x CPU Fan;2x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;2x USB 5Gbps Type A ports

Form factormATX, 200mmx236.16mm

Memory type2x DDR5, Maximum Memory Capacity 96GB;Memory Support DDR5 5600 MHz (by JEDEC & POR);Supports Intel® XMP 3.0 OC;Supports Dual-Controller Dual-Channel mode;Supports non-ECC, un-buffered memory

ManufacturerMSI

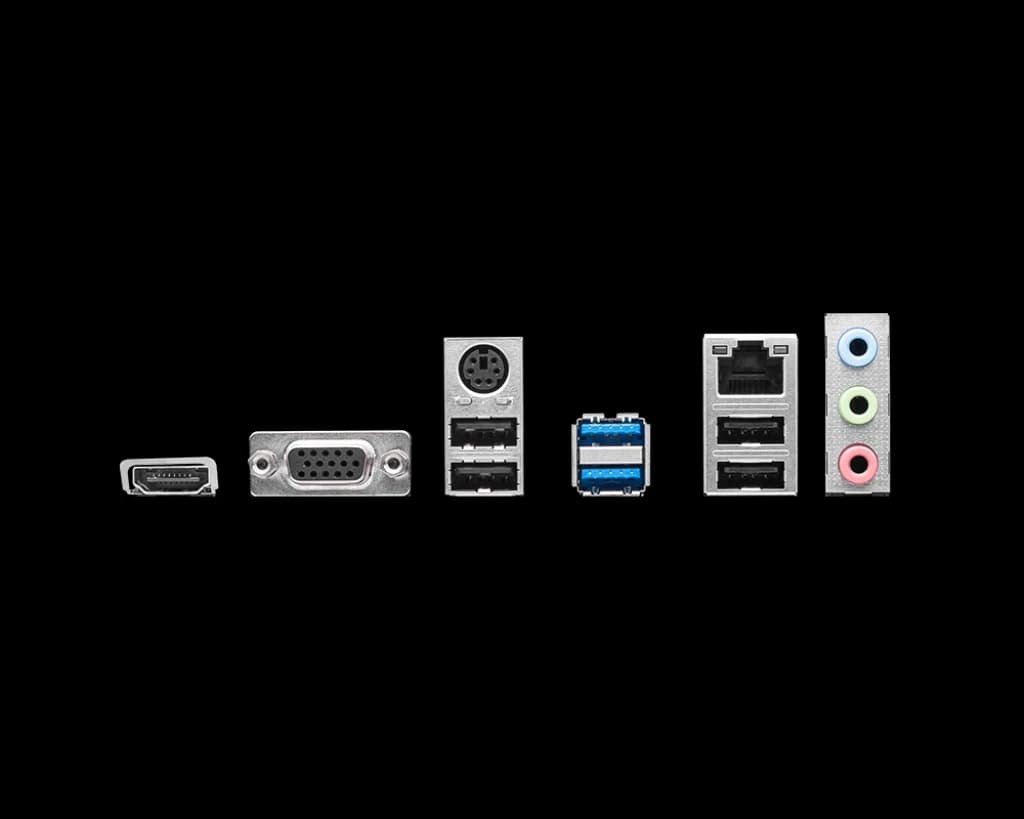

Rear panel I/OHDMI™;VGA;Keyboard / Mouse;USB 3.2 Gen 1 5Gbps (Type-A);LAN port;Audio Connectors;USB 2.0;USB 2.0

CPU's supportedSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Expansion slots1x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to (From CPU);PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

// Compatibility

Motherboards · Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

// Delivery & warranty

✓Genuine part
✓3-year warranty
✓Delivery across Bulgaria
