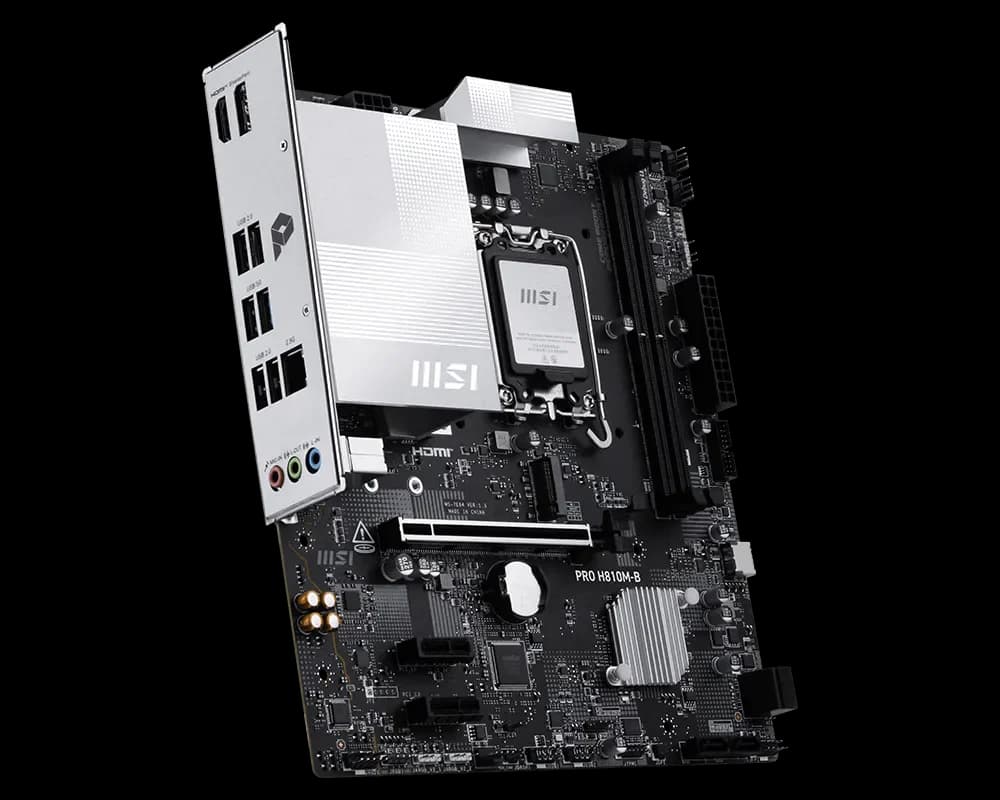

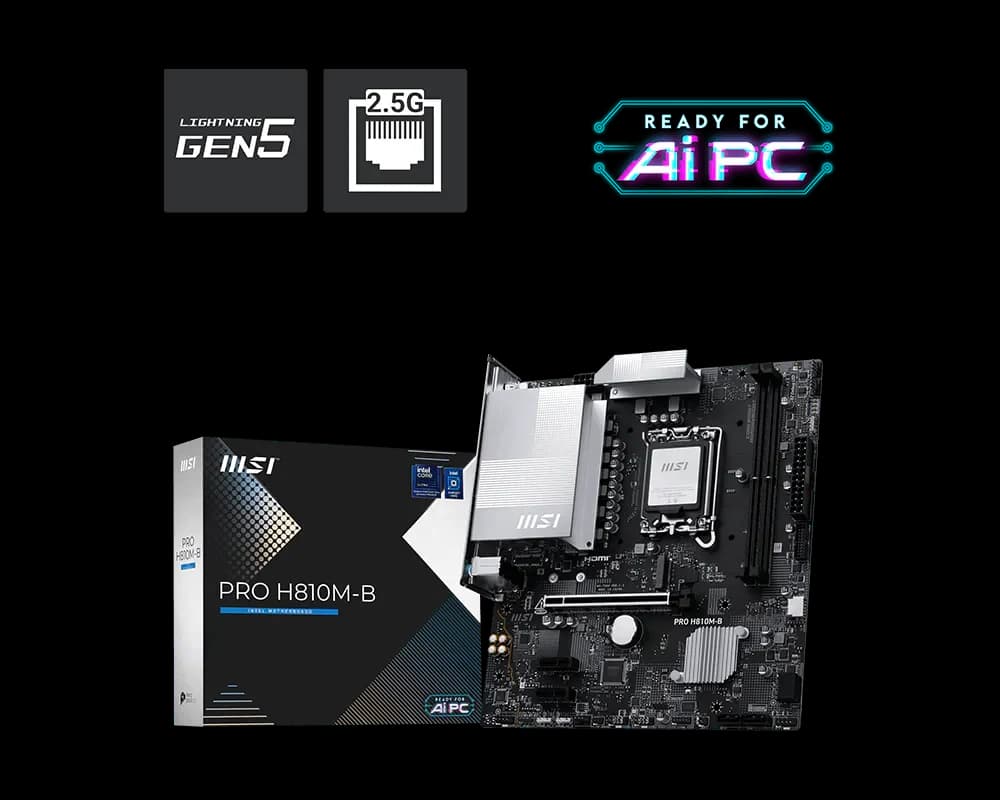

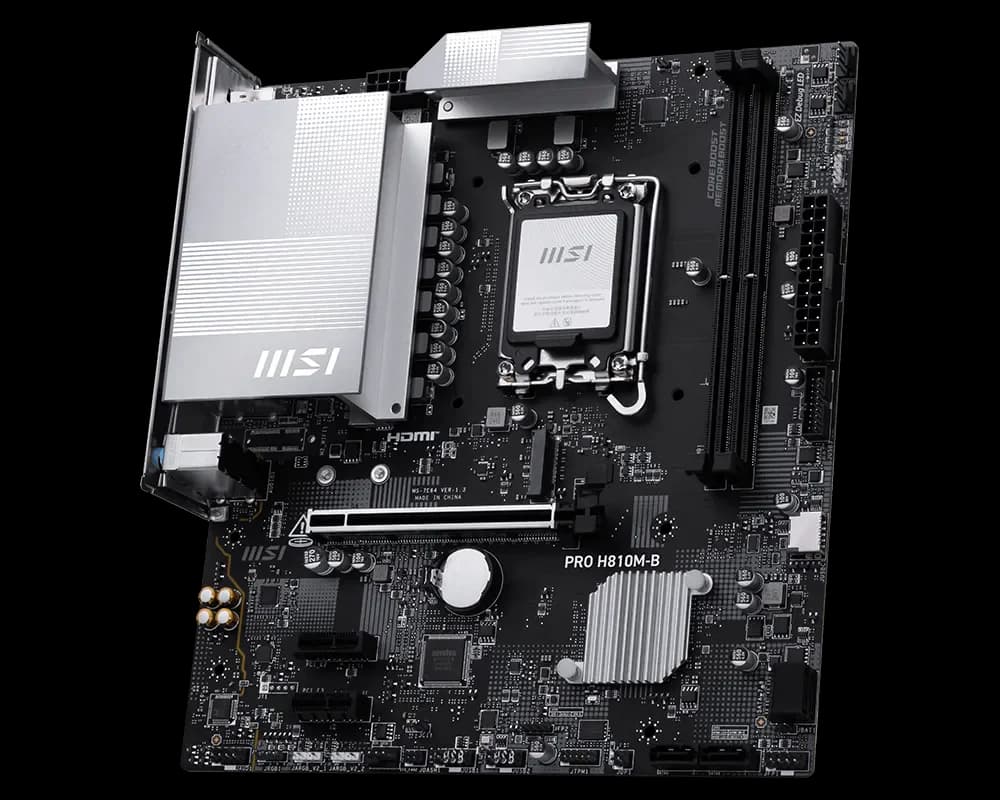

MSI PRO H810M-B

LGA1851 /Intel Core Ultra 200

95,99 €

● In stock

95,99 €

// Tech specs

ManufacturerMSI

ChipsetINTEL H810

CPU supportSupports Intel® Core™ Ultra Processors (Series 2)

Memory2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 7200 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max spe…

Storage1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; *Please refer to the manual for M.…

Expansion1x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset…

EAN4711377337977

Model911-7E64-001

▸ Full specifications

OSSupport for Windows® 11 64-bit

LanRealtek® 8125 2.5Gbps LAN

USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type C (Front)

AudioRealtek® ALC897 Codec; 7.1-Channel High Definition Audio

Other4x EZ Debug LED; 1x EZ Memory Detection LED

SocketLGA 1851

ChipsetINTEL H810

Storage1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; *Please refer to the manual for M.2 SSD heatsink restrictions.

Graphics1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

// Compatibility

Motherboards · Supports Intel® Core™ Ultra Processors (Series 2)

// Delivery & warranty

✓Genuine part
✓Delivery across Bulgaria

1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports

DimensionsmATX, 220mmx243.84mm

Memory type2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 7200 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200 MT/s; • 1DPC 2R Max speed up to 6400 MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; • The DIMM slots on this motherboard have double-sided latches.; • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

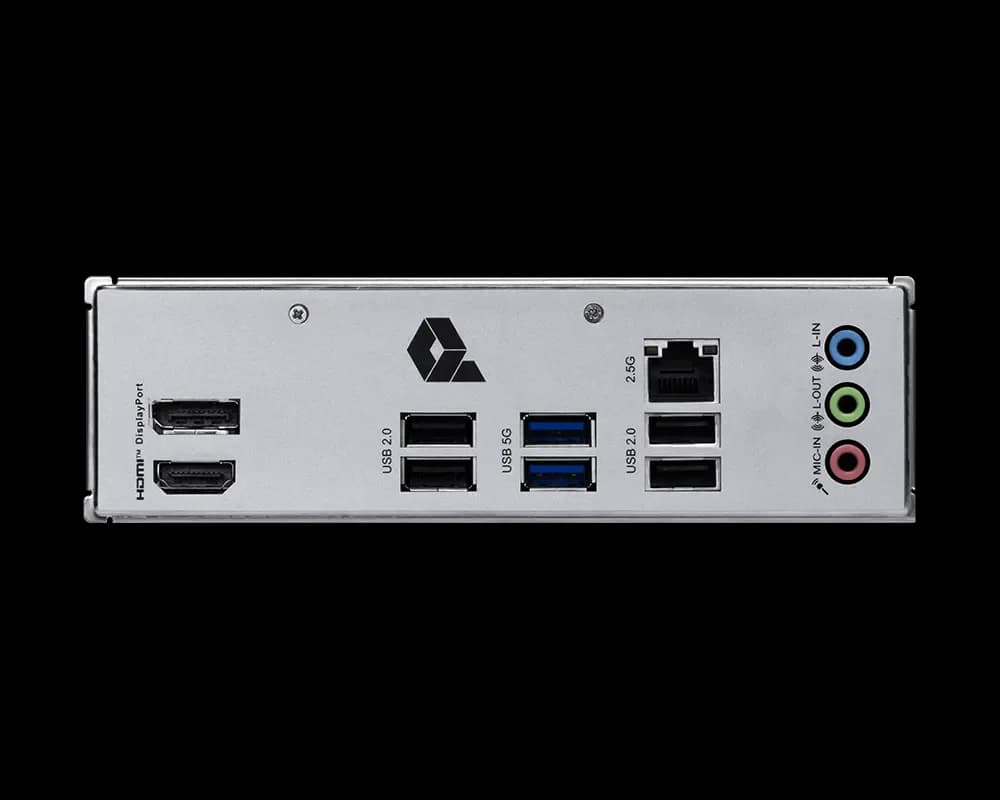

Rear panel I/ODisplayPort; USB 2.0; USB 5Gbps Type-A; 2.5G LAN; Audio Connectors; HDMITM; USB 2.0

CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2)

Expansion slots1x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
