EAN 4711173878414MODEL PRIME PX-2200 TITANIUM
// Power Supplies · SEASONIC

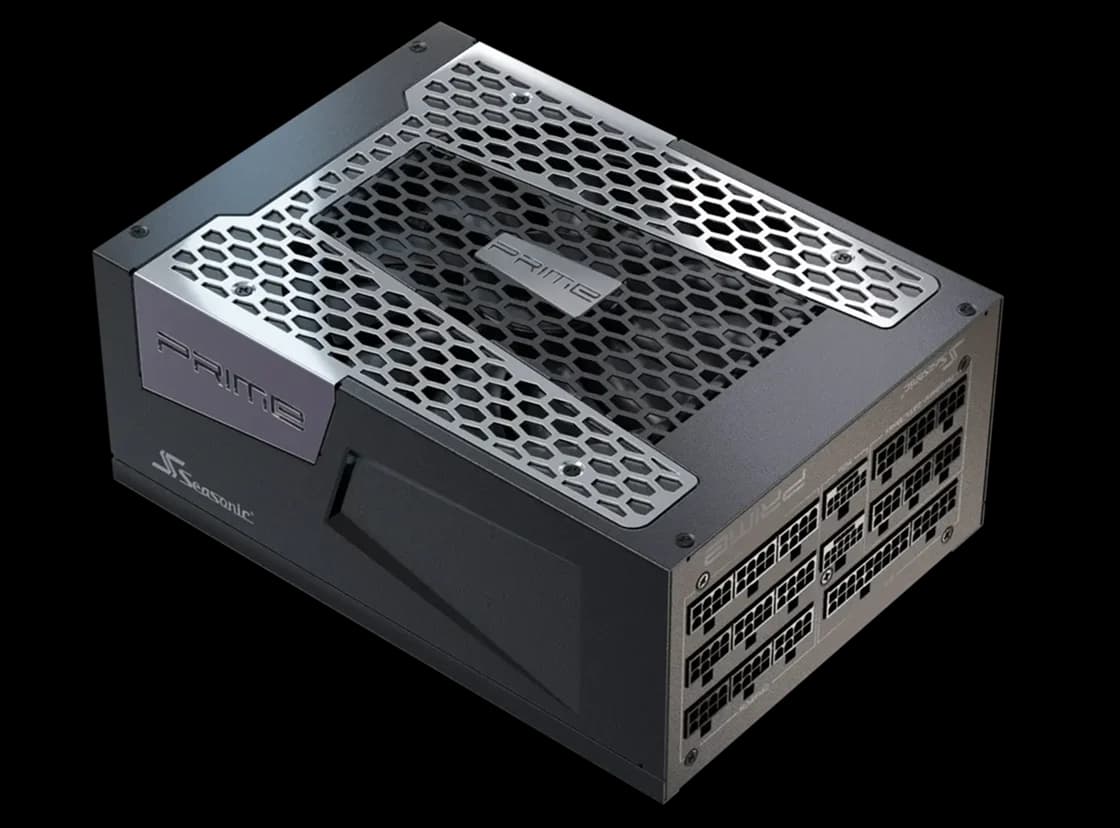

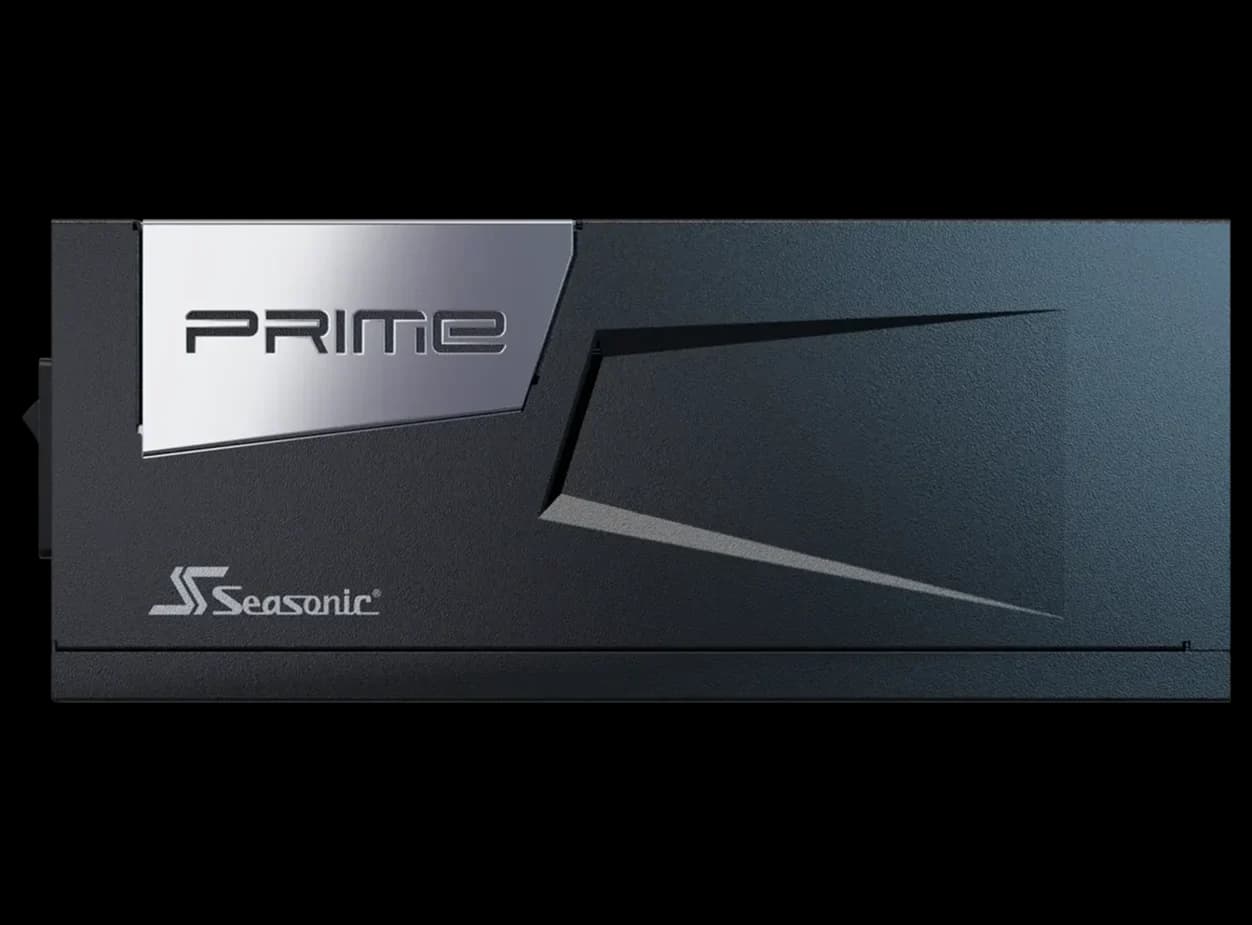

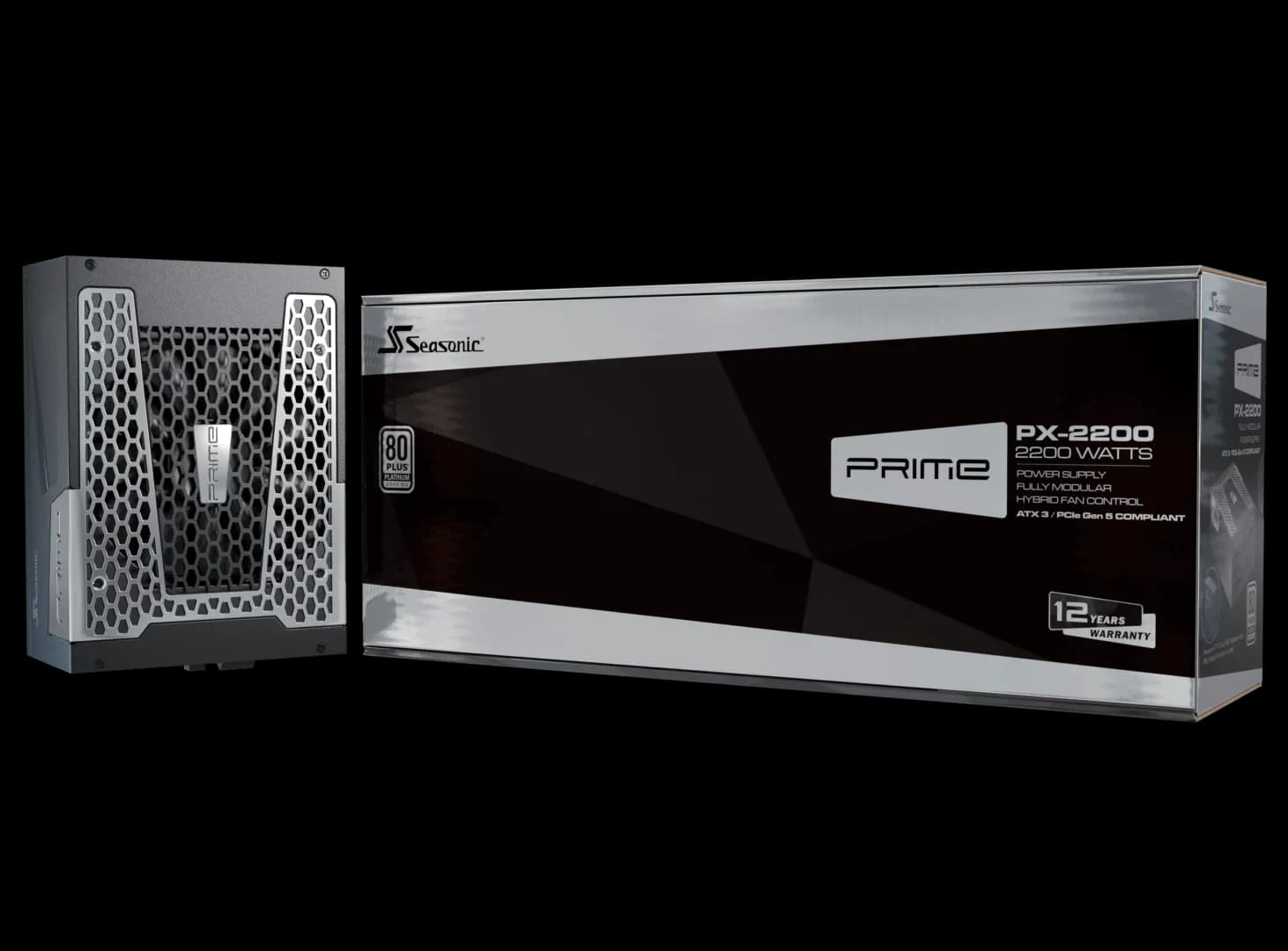

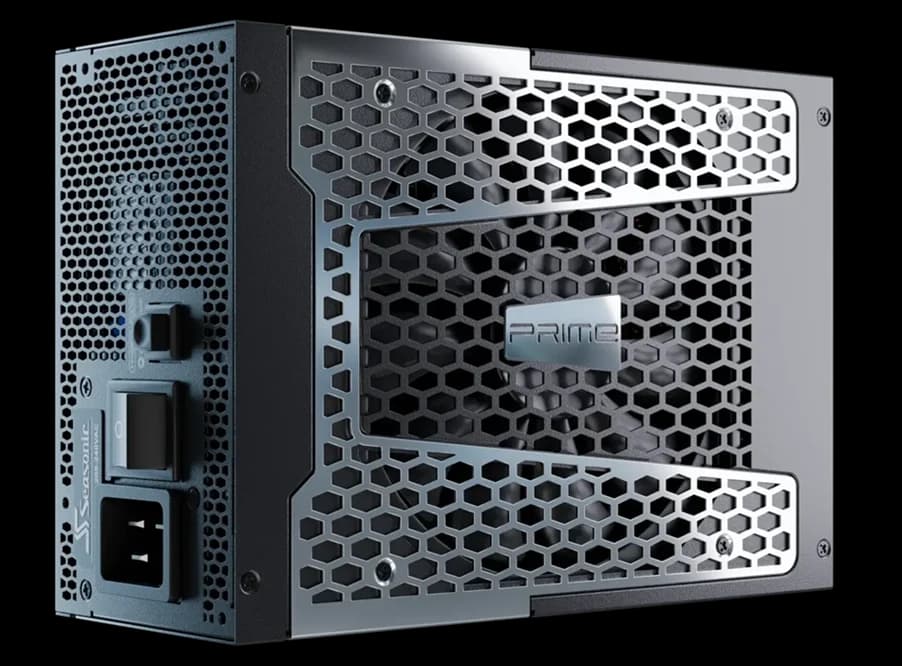

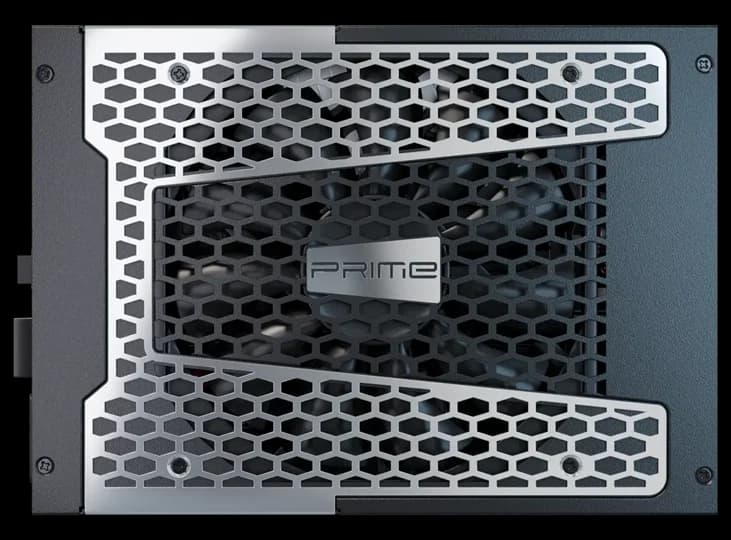

PSU Seasonic Prime PX-2200 PLA
PSU
550,12 €
● In stockSEASONIC POWER SUPPLY 2200W EFF 93 PFC ACTIVE MODULAR FAN 135MM
550,12 €
// Tech specs
ManufacturerSEASONIC
EAN4711173878414
ModelPRIME PX-2200 TITANIUM
▸ Full specifications▾ Full specifications
Other80PLUS® : Platinum;Cybenetics Efficiency Level: Titanium;Cybenetics Noise Level: Standard++
AC Input200 V - 240 V;15 A;50 Hz - 60 Hz
FeaturesElectrical Features:;Operating Temperature: 0 - 50 °C;MTBF @ 25 °C, excl. fan: 100,000 hours;AC Input: Fixed 230 V;Protection: OPP, OCP, OTP, OVP, SCP, UVP
Warranty99 Months
DC OutputRail: +3.3 V/ +5 V/ +12 V/ -12 V/ +5 Vsb;Maximum Power: 25 A - 125 W/ 25 A/ 183.3 A - 2200 W / 0.5 A - 6 W/ 3 A - 15 W

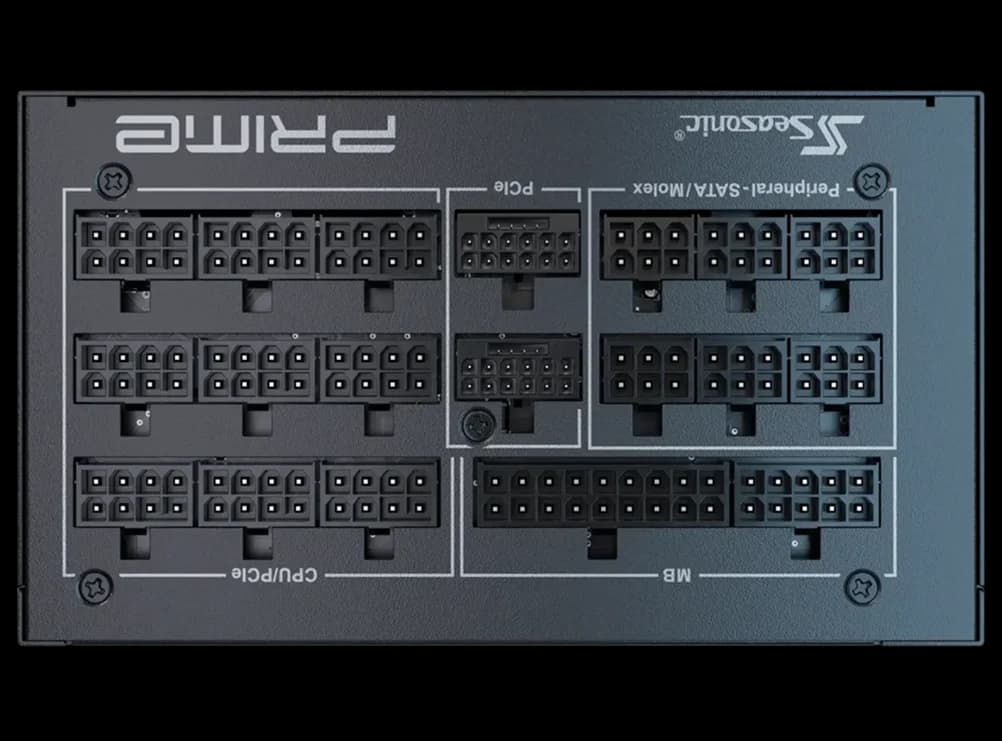

Connectors1 x MB (24/20 pins);1 x CPU (8/4 pins);1 x PCIe (8/6 pins);4 x SATA;2 x SATA3.3 V;3 x Molex;1 x 12V-2x6 (12+4 Pins to 12+4 Pins);1 x 12V-2x6 (2x 8-pin to 12+4 Pins)
